Part Details for LM4041CEM3-ADJ/NOPB by Texas Instruments
Results Overview of LM4041CEM3-ADJ/NOPB by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (8 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Renewable Energy
Automotive
LM4041CEM3-ADJ/NOPB Information
LM4041CEM3-ADJ/NOPB by Texas Instruments is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TCR15AGADJ | Toshiba Electronic Devices & Storage Corporation | LDO Regulator, Adjustable Output, 0.6 to 3.6 V, 1500 mA, WCSP6F | |
| TCR13AGADJ | Toshiba Electronic Devices & Storage Corporation | LDO Regulator, Adjustable Output, 0.55 to 3.6 V, 1300 mA, WCSP6F | |
| TCKE712BNL | Toshiba Electronic Devices & Storage Corporation | eFuse IC (electronic Fuse), 4.4 to 13.2 V, 3.65 A, Latch, Adjustable Over Voltage Protection, WSON10 |
Price & Stock for LM4041CEM3-ADJ/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LM4041CEM3-ADJNOPB
|
TME | IC: voltage reference source, 1.225V, ±0.5%, SOT23, reel,tape Min Qty: 1 | 0 |
|
$0.5160 / $0.9400 | RFQ |
|
DISTI #
LM4041CEM3-ADJ/NOPB
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 980 |
|
$0.4640 / $1.0800 | Buy Now |
|
|
Chip Stock | Fixed&, adjustable,45-µA,precisionmicropowershuntvoltagereference3-SOT-23-40to125 | 213500 |
|
RFQ | |
|
|
LCSC | 1.24V10V 0.5% 12mA Adjustable SOT-23 Voltage Reference RoHS | 29 |
|
$0.4907 / $0.9519 | Buy Now |
|
|
Win Source Electronics | IC VREF SHUNT ADJ SOT23-3 | 20595 |
|
$1.1422 / $1.7132 | Buy Now |
US Tariff Estimator: LM4041CEM3-ADJ/NOPB by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM4041CEM3-ADJ/NOPB
LM4041CEM3-ADJ/NOPB CAD Models
-

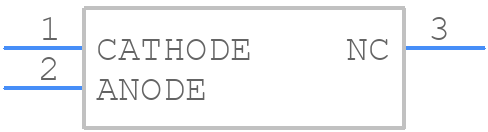

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LM4041CEM3-ADJ/NOPB Part Data Attributes
|
|
LM4041CEM3-ADJ/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM4041CEM3-ADJ/NOPB
Texas Instruments
Fixed & adjustable, 45-µA, precision micropower shunt voltage reference 3-SOT-23 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOT-23 | |
| Package Description | Tssop, To-236 | |
| Pin Count | 3 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog IC - Other Type | Two Terminal Voltage Reference | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 2.92 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 1.243 V | |
| Output Voltage-Min | 1.207 V | |
| Output Voltage-Nom | 1.225 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TO-236 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.12 Mm | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temp Coef of Voltage-Max | 100 Ppm/°C | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.95 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | Yes | |
| Voltage Tolerance-Max | 1.45% | |
| Width | 1.3 Mm |
Alternate Parts for LM4041CEM3-ADJ/NOPB
This table gives cross-reference parts and alternative options found for LM4041CEM3-ADJ/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM4041CEM3-ADJ/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM4041CIM3-ADJ/NOPB | Texas Instruments | $0.3211 | Fixed & adjustable, 45-µA, precision micropower shunt voltage reference 3-SOT-23 -40 to 85 | LM4041CEM3-ADJ/NOPB vs LM4041CIM3-ADJ/NOPB |
| LM4041CEM3-ADJ/NOPB | National Semiconductor Corporation | Check for Price | IC 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 1.233 V, PDSO3, PLASTIC, TO-236AB, SOT-23, 3 PIN, Voltage Reference | LM4041CEM3-ADJ/NOPB vs LM4041CEM3-ADJ/NOPB |
| LM4041CIM3-ADJ/NOPB | National Semiconductor Corporation | Check for Price | IC 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 1.233 V, PDSO3, PLASTIC, TO-236AB, SOT-23, 3 PIN, Voltage Reference | LM4041CEM3-ADJ/NOPB vs LM4041CIM3-ADJ/NOPB |
| LM4041CIM3-ADJX | Texas Instruments | Check for Price | 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 1.233V, PDSO3, PLASTIC, TO-236AB, SOT-23, 3 PIN | LM4041CEM3-ADJ/NOPB vs LM4041CIM3-ADJX |
| LM4041CEM3-ADJ | National Semiconductor Corporation | Check for Price | IC 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 1.233 V, PDSO3, PLASTIC, TO-236AB, SOT-23, 3 PIN, Voltage Reference | LM4041CEM3-ADJ/NOPB vs LM4041CEM3-ADJ |
| LM4041CIM3X-ADJ/NOPB | National Semiconductor Corporation | Check for Price | IC 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 1.233 V, PDSO3, PLASTIC, TO-236AB, SOT-23, 3 PIN, Voltage Reference | LM4041CEM3-ADJ/NOPB vs LM4041CIM3X-ADJ/NOPB |
| LM4041CIM3ADJ | Texas Instruments | Check for Price | 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 1.233V, PDSO3, PLASTIC, TO-236AB, SOT-23, 3 PIN | LM4041CEM3-ADJ/NOPB vs LM4041CIM3ADJ |
| LM4041CIM3-ADJ | Texas Instruments | Check for Price | Fixed & adjustable, 45-µA, precision micropower shunt voltage reference 3-SOT-23 -40 to 85 | LM4041CEM3-ADJ/NOPB vs LM4041CIM3-ADJ |
LM4041CEM3-ADJ/NOPB Frequently Asked Questions (FAQ)
-
The recommended input capacitor value is 10uF to 22uF, depending on the input voltage and desired noise rejection.
-
To ensure stability, use a minimum output capacitor of 10uF, keep the input and output capacitors close to the device, and avoid long traces or wires that can cause oscillations.
-
The maximum input voltage is 12V, but it's recommended to keep the input voltage below 10V to ensure optimal performance and minimize power dissipation.
-
No, the LM4041CEM3-ADJ/NOPB is a voltage reference, not a voltage regulator. It's designed to provide a stable voltage reference, not to regulate voltage.
-
The LM4041CEM3-ADJ/NOPB has a typical voltage accuracy of ±0.1% and a maximum voltage accuracy of ±0.5% over the operating temperature range.
