LM5008SDC/NOPB Information
LM5008SDC/NOPB by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM5008SDC/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LM5008SDCNOP-TEX-0
|
TME | PMIC, DC/DC converter, Uin: 9.5÷95V, Uout: 2.5÷75V, 350mA, WSON8 Min Qty: 1000 | 1000 |
|
$2.2835 | Buy Now |
|
|
Chip Stock | 9.5-95VWideVin,350mAConstantOn-TimeNon-SynchronousBuckRegulator8-WSON-40to125 | 10230 |
|
RFQ | |
|
|
LCSC | 600kHz Buck 350mA Adjustable 1 USON-8(4x4) Voltage Regulators - DC DC Switching Regulators RoHS | 10 |
|
$3.6589 / $3.8858 | Buy Now |
|
|
Win Source Electronics | IC REG BUCK ADJ 0.35A 8WSON | 8730 |
|
$1.5105 / $1.9511 | Buy Now |
US Tariff Estimator: LM5008SDC/NOPB by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM5008SDC/NOPB
LM5008SDC/NOPB CAD Models
-

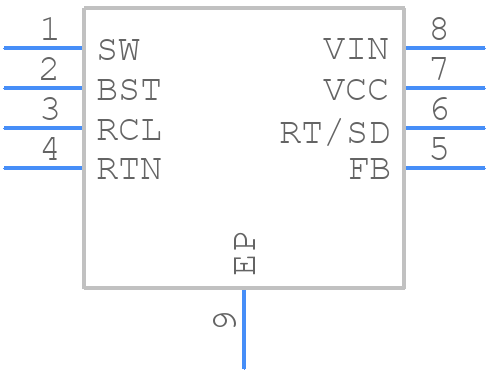

Part Symbol
-
Footprint
-

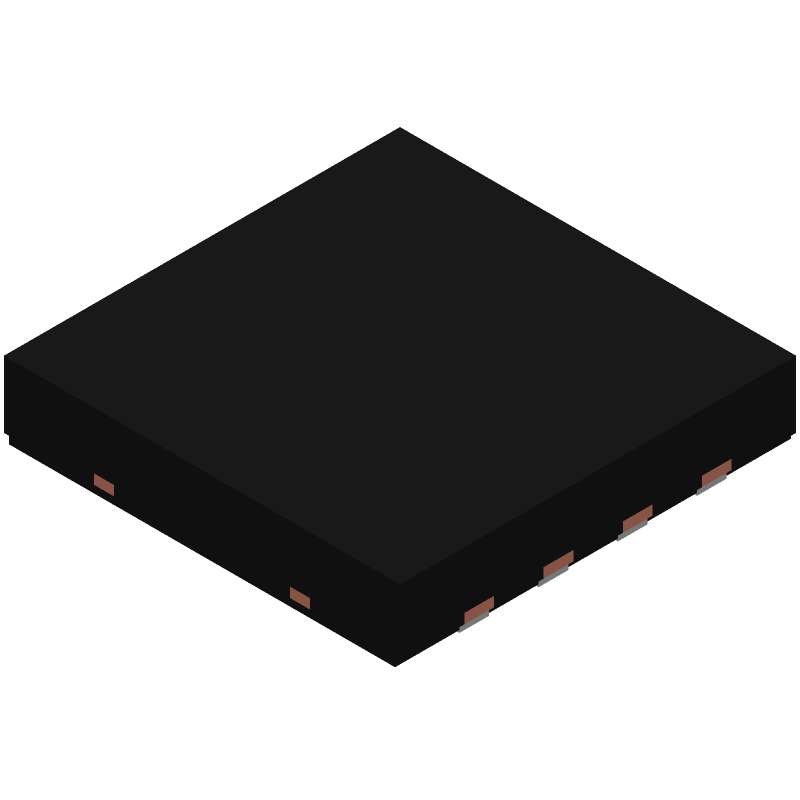

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LM5008SDC/NOPB Part Data Attributes
|
|
LM5008SDC/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM5008SDC/NOPB
Texas Instruments
9.5-95V Wide Vin, 350mA Constant On-Time Non-Synchronous Buck Regulator 8-WSON -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Hvson, | |
| Pin Count | 8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Analog IC - Other Type | Switching Regulator | |
| Control Mode | Current-Mode | |
| Control Technique | Hysteretic Current Mode | |
| Input Voltage-Max | 95 V | |
| Input Voltage-Min | 9.5 V | |
| Input Voltage-Nom | 48 V | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 4 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.35 A | |
| Output Voltage-Max | 75 V | |
| Output Voltage-Min | 2.5 V | |
| Output Voltage-Nom | 7 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVSON | |
| Package Shape | Square | |
| Package Style | Small Outline, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.8 Mm | |
| Supply Current-Max (Isup) | 0.675 Ma | |
| Surface Mount | Yes | |
| Switcher Configuration | Buck | |
| Switching Frequency-Max | 600 Khz | |
| Technology | Bicmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.8 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4 Mm |
