LM536033QPWPRQ1 Information
LM536033QPWPRQ1 by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LM536033QPWPRQ1 | Texas Instruments | 3.5 to 36Vin, 3 Ampere Synchronous DC-DC Converter for Automotive Applications 16-HTSSOP -40 to 150 |
Price & Stock for LM536033QPWPRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LM536033QPWPRQ1-0
|
TME | IC: PMIC, synchronous, Uin: 3.9÷36V, Uout: 3.3÷6V, HTSSOP16, buck Min Qty: 2000 | 14000 |
|
$1.5050 | Buy Now |
|
|
Chip Stock | Automotive3.5-Vto36-V,3-Asynchronousstep-downconverter16-HTSSOP-40to150 | 9500 |
|
RFQ | |
|
|
LCSC | 2.1MHz Buck 3A Fixed 3.3V 1 HTSSOP-16-EP Voltage Regulators - DC DC Switching Regulators RoHS | 9 |
|
$2.8977 / $4.6020 | Buy Now |
|
|
Win Source Electronics | IC REG BUCK 3.3V 3A 16HTSSOP / Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 3A 16-PowerTSSOP (0.173", 4.40mm Width) | 8000 |
|
$3.2524 / $4.8785 | Buy Now |
US Tariff Estimator: LM536033QPWPRQ1 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM536033QPWPRQ1
LM536033QPWPRQ1 CAD Models
-

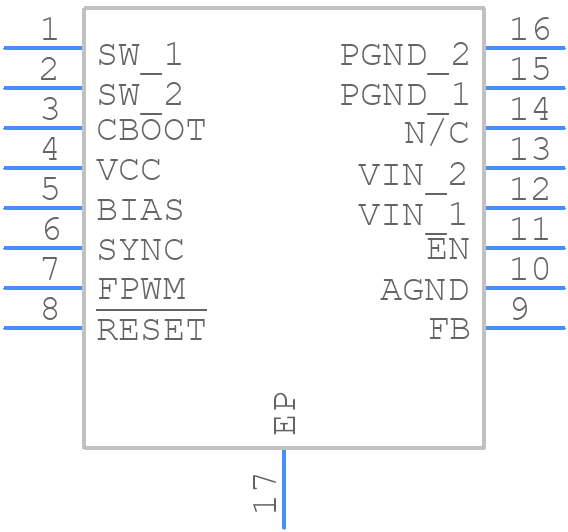

Part Symbol
-

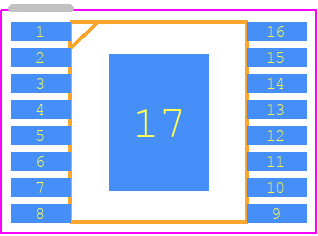

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LM536033QPWPRQ1 Part Data Attributes
|
|
LM536033QPWPRQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM536033QPWPRQ1
Texas Instruments
Automotive 3.5-V to 36-V, 3-A synchronous step-down converter 16-HTSSOP -40 to 150
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Hsop, Tssop16,.25 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Additional Feature | Also Opts In Pfm Control Tech, Also Avlb Vout = 5v, Also Opts In Adj Mode From 3.3 To 6v | |
| Analog IC - Other Type | Switching Regulator | |
| Control Mode | Current-Mode | |
| Control Technique | Pulse Width Modulation | |
| Input Voltage-Max | 42 V | |
| Input Voltage-Min | 3.5 V | |
| Input Voltage-Nom | 13.5 V | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 5 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 3 A | |
| Output Voltage-Max | 9.9 V | |
| Output Voltage-Min | 3.2 V | |
| Output Voltage-Nom | 3.3 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Heat Sink/Slug | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | Aec-Q100 | |
| Seated Height-Max | 1.2 Mm | |
| Surface Mount | Yes | |
| Switcher Configuration | Buck | |
| Switching Frequency-Max | 2350 Khz | |
| Temperature Grade | Automotive | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 Mm |
