LM76003QRNPRQ1 Information
LM76003QRNPRQ1 by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM76003QRNPRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LM76003QRNPRQ1
|
TME | PMIC, DC/DC converter, Uin: 3.5÷60V, 1÷57VDC, 3.5A, WQFN30, SMD Min Qty: 1 | 0 |
|
$4.1500 / $6.1500 | RFQ |
|
|
Chip Stock | ICREGBUCKADJ3.5A30WQFNBuckSwitchingRegulatorICPositiveAdjustable1V1Output3.5A30-WFQFNExposedPad | 24500 |
|
RFQ | |
|
|
LCSC | 2.2MHz 3.5A Buck Adjustable 1 WQFN-30-EP(4x6) Voltage Regulators - DC DC Switching Regulators RoHS | 1 |
|
$43.2533 / $49.0979 | Buy Now |
|
|
Win Source Electronics | IC REG BUCK ADJ 3.5A 30WQFN / Buck Switching Regulator IC Positive Adjustable 1V 1 Output 3.5A 30-WFQFN Exposed Pad | 21000 |
|
$3.7400 / $5.6100 | Buy Now |
US Tariff Estimator: LM76003QRNPRQ1 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM76003QRNPRQ1
LM76003QRNPRQ1 CAD Models
-

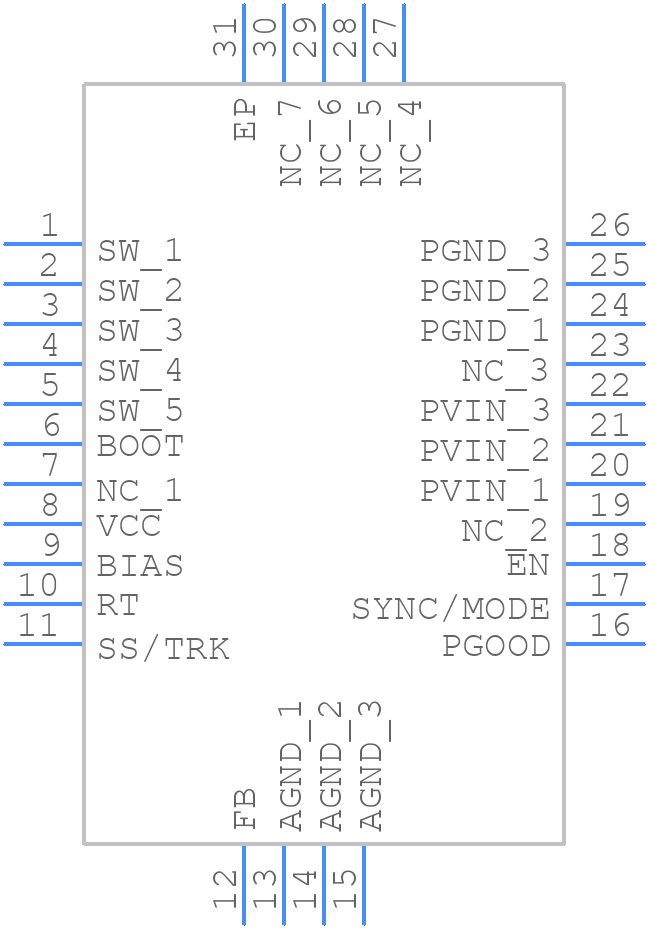

Part Symbol
-

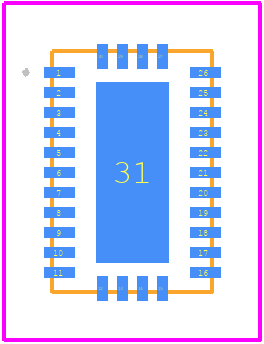

Footprint
-
