Part Details for LM78L05ACM by Texas Instruments
Results Overview of LM78L05ACM by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (6 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LM78L05ACM Information
LM78L05ACM by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM78L05ACM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 940 |
|
RFQ | ||
|
|
Bristol Electronics | 452 |
|
RFQ | ||
|
|
Win Source Electronics | IC REG LDO 5V 0.1A 8SOIC | 54602 |
|
$0.0943 / $0.1217 | Buy Now |
US Tariff Estimator: LM78L05ACM by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM78L05ACM
LM78L05ACM CAD Models
-

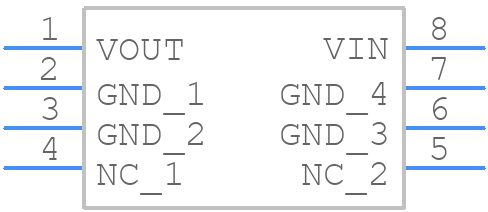

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LM78L05ACM Part Data Attributes
|
|
LM78L05ACM
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM78L05ACM
Texas Instruments
100-mA, 30-V, linear voltage regulator 8-SOIC 0 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | PLASTIC, SOIC-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 1989-01-01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | FIXED | |
| Dropout Voltage1-Nom | 1.6 V | |
| Input Voltage Absolute-Max | 35 V | |
| Input Voltage-Max | 20 V | |
| Input Voltage-Min | 7 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e0 | |
| Length | 4.9 mm | |
| Line Regulation-Max | 0.075% | |
| Load Regulation-Max | 0.06% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | ||
| Output Current1-Max | 0.1 A | |
| Output Voltage1-Max | 5.25 V | |
| Output Voltage1-Min | 4.75 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 235 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR | |
| Seated Height-Max | 1.75 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Voltage Tolerance-Max | 5% | |
| Width | 3.9 mm |
Alternate Parts for LM78L05ACM
This table gives cross-reference parts and alternative options found for LM78L05ACM. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM78L05ACM, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM78L05ACM/NOPB | Texas Instruments | $0.4660 | 100-mA, 30-V, linear voltage regulator 8-SOIC 0 to 125 | LM78L05ACM vs LM78L05ACM/NOPB |
| LM78L05ACMX/NOPB | Texas Instruments | $0.6428 | 100-mA, 30-V, linear voltage regulator 8-SOIC 0 to 125 | LM78L05ACM vs LM78L05ACMX/NOPB |
| LM78L05AIM/NOPB | Texas Instruments | $0.8567 | 100-mA, 30-V, linear voltage regulator 8-SOIC -40 to 125 | LM78L05ACM vs LM78L05AIM/NOPB |
| LM78L05ACM/NOPB | National Semiconductor Corporation | Check for Price | IC VREG 5 V FIXED POSITIVE REGULATOR, PDSO8, ROHS COMPLIANT, PLASTIC, SOIC-8, Fixed Positive Single Output Standard Regulator | LM78L05ACM vs LM78L05ACM/NOPB |
| LM78L05ACMX | Texas Instruments | Check for Price | 100-mA, 30-V, linear voltage regulator 8-SOIC 0 to 125 | LM78L05ACM vs LM78L05ACMX |
| LM78L05ACMX/NOPB | National Semiconductor Corporation | Check for Price | IC VREG 5 V FIXED POSITIVE REGULATOR, PDSO8, ROHS COMPLIANT, PLASTIC, SOIC-8, Fixed Positive Single Output Standard Regulator | LM78L05ACM vs LM78L05ACMX/NOPB |
Resources and Additional Insights for LM78L05ACM
Reference Designs related to LM78L05ACM
LM78L05ACM Frequently Asked Questions (FAQ)
-
The LM78L05ACM can handle input voltages up to 35V, but it's recommended to keep the input voltage below 20V for optimal performance and to prevent overheating.
-
To ensure stability, it's recommended to use a minimum of 10uF capacitor at the input and a minimum of 10uF capacitor at the output, with an ESR (Equivalent Series Resistance) of less than 5 ohms.
-
The LM78L05ACM can supply up to 100mA of current, but it's recommended to keep the output current below 50mA for optimal performance and to prevent overheating.
-
To protect the LM78L05ACM from overheating, ensure good airflow around the device, use a heat sink if necessary, and keep the input voltage and output current within the recommended limits.
-
The LM78L05ACM is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases to prevent overheating.
