LMC6484AIMX/NOPB Information
LMC6484AIMX/NOPB by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LMC6484AIMX/NOPB | Texas Instruments | Ultra-low Bias Current, Precision CMOS Rail-to-Rail Input and Output Operational Amplifier 14-SOIC -40 to 85 | |
| LMC6484AIMX | Texas Instruments | Ultra-low Bias Current, Precision CMOS Rail-to-Rail Input and Output Operational Amplifier 14-SOIC -40 to 85 | |
| LM324N/NOPB | Texas Instruments | Low Power Quad Operational Amplifier 14-PDIP 0 to 70 |
Price & Stock for LMC6484AIMX/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 2149 |
|
RFQ | ||
|
DISTI #
LMC6484AIMX/NOPB
|
TME | IC: operational amplifier, 1.5MHz, 3÷15.5V, Ch: 4, SO14, IB: 4pA Min Qty: 1 | 1618 |
|
$1.7800 / $2.7600 | Buy Now |
|
|
Chip Stock | OpAmpQuadPrecisionAmplifierR-RI/O15.5V14-PinSOICT/R | 30150 |
|
RFQ | |
|
|
LCSC | 3mV 0.02pA 1.3V/us 82dB 3V15.5V 1.5MHz 4 Rail-to-Rail Input Rail-to-Rail Output SOIC-14 Amplifiers RoHS | 1331 |
|
$0.9062 / $1.5955 | Buy Now |
|
|
Win Source Electronics | IC OPAMP GP 1.5MHZ RRO 14SOIC | 26120 |
|
$0.8229 / $1.0628 | Buy Now |
US Tariff Estimator: LMC6484AIMX/NOPB by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LMC6484AIMX/NOPB
LMC6484AIMX/NOPB CAD Models
-

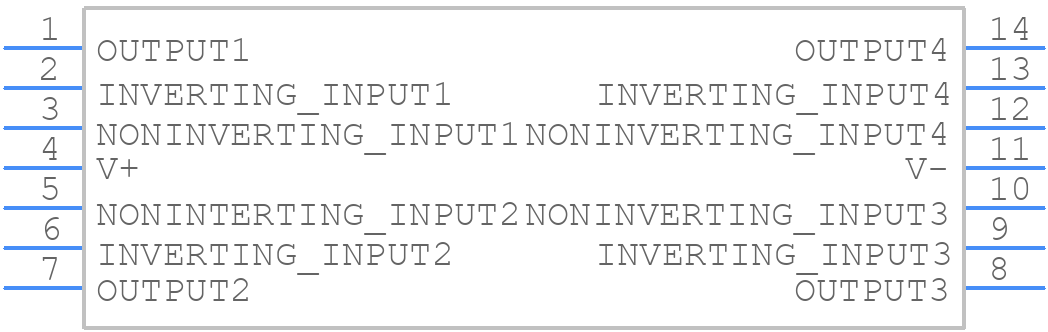

Part Symbol
-
