LMC660AIM/NOPB Information
LMC660AIM/NOPB by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LMC660AIM/NOPB | Texas Instruments | CMOS Quad Operational Amplifier 14-SOIC -40 to 85 | |
| LMC660AIMX/NOPB | Texas Instruments | CMOS Quad Operational Amplifier 14-SOIC -40 to 85 | |
| LMC660AIMX | Texas Instruments | CMOS Quad Operational Amplifier 14-SOIC -40 to 85 |
Price & Stock for LMC660AIM/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LMC660AIM/NOPB
|
TME | IC: operational amplifier, 1.4MHz, Ch: 4, SO14, 4.75÷15.5VDC, tube Min Qty: 1 | 515 |
|
$1.6700 / $2.5400 | Buy Now |
|
|
Chip Stock | ICCMOS4CIRCUIT14SOIC", CMOSAmplifier4CircuitPush-Pull,Rail-to-Rail14-SOIC", | 26730 |
|
RFQ | |
|
|
Win Source Electronics | IC OPAMP GP 4 CIRCUIT 14SOIC | 23230 |
|
$1.3427 / $1.7342 | Buy Now |
US Tariff Estimator: LMC660AIM/NOPB by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LMC660AIM/NOPB
LMC660AIM/NOPB CAD Models
-

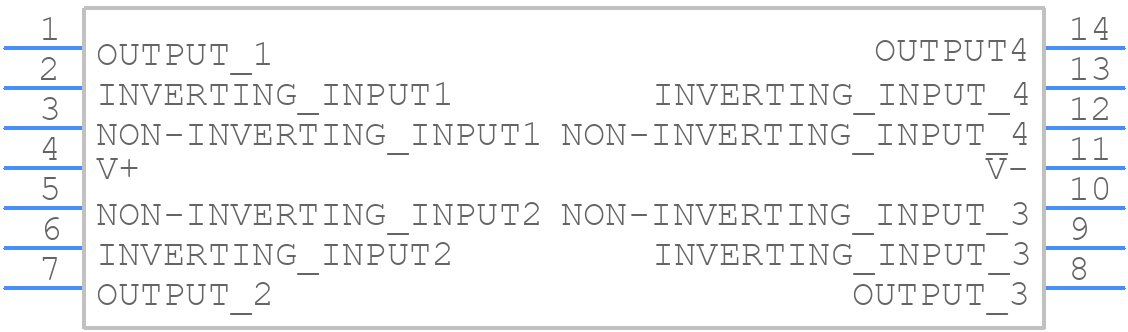

Part Symbol
-
