Part Details for LMK00804BQWRGTTQ1 by Texas Instruments
Results Overview of LMK00804BQWRGTTQ1 by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Financial Technology (Fintech)
LMK00804BQWRGTTQ1 Information
LMK00804BQWRGTTQ1 by Texas Instruments is a Clock Driver.
Clock Drivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for LMK00804BQWRGTTQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip Stock | ICCLKBUFFER1:4350MHZ16VQFNClockFanoutBuffer(Distribution)IC1:4350MHz16-VFQFNExposedPad | 7500 |
|
RFQ | |
|
|
LCSC | 1.5V3.3V 350MHz 4 VQFN-16-EP(3x3) Clock Buffers Drivers RoHS | 48 |
|
$2.1557 / $3.4727 | Buy Now |
|
|
Win Source Electronics | IC CLOCK BUFFER/DRIVER / Clock Fanout Buffer (Distribution) IC 2:4 350 MHz 16-VFQFN Exposed Pad | 6000 |
|
$2.4752 / $3.1970 | Buy Now |
US Tariff Estimator: LMK00804BQWRGTTQ1 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LMK00804BQWRGTTQ1
LMK00804BQWRGTTQ1 CAD Models
-

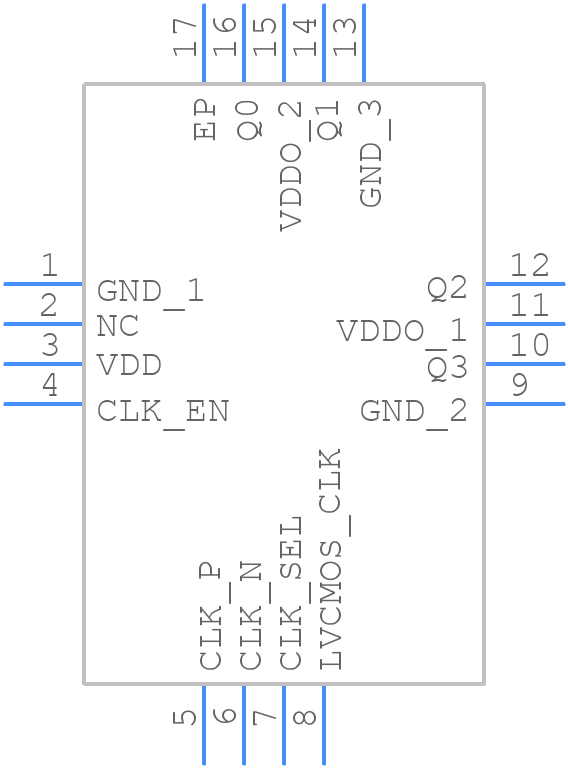

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LMK00804BQWRGTTQ1 Part Data Attributes
|
|
LMK00804BQWRGTTQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LMK00804BQWRGTTQ1
Texas Instruments
Automotive, 1.5-V to 3.3-V, 1-to-4 high-performance LVCMOS fanout buffer & level translator 16-VQFN -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Hvqccn, | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Date Of Intro | 2019-06-30 | |
| Family | Lmk | |
| Input Conditioning | Differential Mux | |
| JESD-30 Code | S-PQCC-N16 | |
| JESD-609 Code | e3 | |
| Length | 3 Mm | |
| Logic IC Type | Low Skew Clock Driver | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Inverted Outputs | ||
| Number of Terminals | 16 | |
| Number of True Outputs | 4 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-State | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVQCCN | |
| Package Shape | Square | |
| Package Style | Chip Carrier, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Propagation Delay (tpd) | 2.5 Ns | |
| Same Edge Skew-Max (tskwd) | 0.035 Ns | |
| Screening Level | Aec-Q100 | |
| Seated Height-Max | 1 Mm | |
| Supply Voltage-Max (Vsup) | 3.465 V | |
| Supply Voltage-Min (Vsup) | 3.135 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 Mm | |
| fmax-Min | 350 Mhz |
Alternate Parts for LMK00804BQWRGTTQ1
This table gives cross-reference parts and alternative options found for LMK00804BQWRGTTQ1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LMK00804BQWRGTTQ1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LMK00804BQWRGTRQ1 | Texas Instruments | $3.4432 | Automotive, 1.5-V to 3.3-V, 1-to-4 high-performance LVCMOS fanout buffer & level translator 16-VQFN -40 to 125 | LMK00804BQWRGTTQ1 vs LMK00804BQWRGTRQ1 |
| 8305AGLFT | Integrated Device Technology Inc | Check for Price | TSSOP-16, Reel | LMK00804BQWRGTTQ1 vs 8305AGLFT |
| ICS8305AGLFT | Renesas Electronics Corporation | Check for Price | Low Skew Clock Driver, 8305 Series, 4 True Output(s), 0 Inverted Output(s), PDSO16 | LMK00804BQWRGTTQ1 vs ICS8305AGLFT |
| ICS8305AGIT | Integrated Device Technology Inc | Check for Price | Low Skew Clock Driver, 8305 Series, 4 True Output(s), 0 Inverted Output(s), PDSO16, 4.40 X 3 MM, 0.92 MM HEIGHT, MO-153, TSSOP-16 | LMK00804BQWRGTTQ1 vs ICS8305AGIT |
| ICS8305AGLF | Integrated Device Technology Inc | Check for Price | Low Skew Clock Driver, 8305 Series, 4 True Output(s), 0 Inverted Output(s), PDSO16, 4.40 X 3 MM, 0.92 MM HEIGHT, MO-153, TSSOP-16 | LMK00804BQWRGTTQ1 vs ICS8305AGLF |
| 8305AGLF | Renesas Electronics Corporation | Check for Price | Low Skew,1-to-4 Multiplexed Differential/LVCMOS-to-LVCMOS/LVTTL Fanout Buffer, TSSOP96/Tube | LMK00804BQWRGTTQ1 vs 8305AGLF |
| ICS8305AGILFT | Integrated Device Technology Inc | Check for Price | Low Skew Clock Driver, 8305 Series, 4 True Output(s), 0 Inverted Output(s), PDSO16, 4.40 X 3 MM, 0.92 MM HEIGHT, ROHS COMPLIANT, MO-153, TSSOP-16 | LMK00804BQWRGTTQ1 vs ICS8305AGILFT |
| 8305AGIT | Integrated Device Technology Inc | Check for Price | Low Skew Clock Driver, 8305 Series, 4 True Output(s), 0 Inverted Output(s), PDSO16, 4.40 X 3 MM, 0.92 MM HEIGHT, MO-153, TSSOP-16 | LMK00804BQWRGTTQ1 vs 8305AGIT |
| 8305AGILFT | Renesas Electronics Corporation | Check for Price | Low Skew,1-to-4,Multiplexed Differential/LVCMOS-to-LVCMOS/LVTTL Fanout Buffer, TSSOP0/Reel | LMK00804BQWRGTTQ1 vs 8305AGILFT |
| ICS8305AGLF | Renesas Electronics Corporation | Check for Price | Low Skew Clock Driver, 8305 Series, 4 True Output(s), 0 Inverted Output(s), PDSO16 | LMK00804BQWRGTTQ1 vs ICS8305AGLF |
LMK00804BQWRGTTQ1 Frequently Asked Questions (FAQ)
-
Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Additionally, it's recommended to use a common mode filter and to decouple the power supply with a 10uF capacitor.
-
The LMK00804BQWRGTTQ1 requires a 3.3V power supply, and it's recommended to decouple the power supply with a 10uF capacitor. Additionally, it's recommended to use a low-ESR capacitor and to place it as close as possible to the power pin.
-
The LMK00804BQWRGTTQ1 can support clock frequencies up to 2400 MHz, but the maximum frequency may vary depending on the specific application and PCB layout.
-
The LMK00804BQWRGTTQ1 can be configured using the SPI interface. The device has a set of registers that can be programmed to set the clock output frequency, phase, and amplitude. Refer to the datasheet for the register map and programming guide.
-
The typical power consumption of the LMK00804BQWRGTTQ1 is around 350mW, but it may vary depending on the specific application, clock frequency, and output load.
