LMP7702MMX/NOPB Information
LMP7702MMX/NOPB by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LMP7702MMX/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Ameya Holding Limited | IC OPAMP GP 2.5MHZ RRO 8VSSOP | 13 |
|
RFQ | |
|
|
LCSC | 220uV 0.2pA 0.9V/us 130dB 2.5MHz 2 Rail-to-Rail Input Rail-to-Rail Output VSSOP-8 Amplifiers RoHS | 215 |
|
$2.0239 / $3.2713 | Buy Now |
|
|
Win Source Electronics | Op Amp Dual Precision Amplifier R-R I/O 12V 8-Pin VSSOP T/R / IC OPAMP GP 2.5MHZ RRO 8VSSOP | 6470 |
|
$1.8546 / $2.7819 | Buy Now |
US Tariff Estimator: LMP7702MMX/NOPB by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LMP7702MMX/NOPB
LMP7702MMX/NOPB CAD Models
-

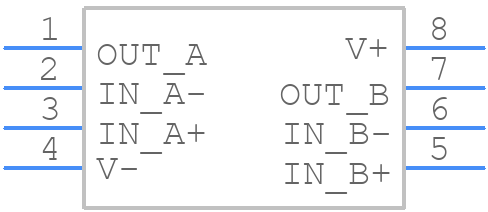

Part Symbol
-
