LMV393MX by Texas Instruments is a Comparator.
Comparators are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LMV393MX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | Comparator, 2 Func, 7000uV Offset-Max, 450ns Response Time, BICMOS, PDSO8 RoHS: Not Compliant Status: Obsolete Min Qty: 1 | 73735 |
|
$0.6758 / $1.0900 | Buy Now |
|
|
Chip Stock | ICCOMPARATOR2GENPUR8SOIC", ComparatorGeneralPurposeCMOS,Open-Collector,TTL8-SOIC", | 8940 |
|
RFQ | |
|
|
Win Source Electronics | IC COMPARATOR TINY DUAL 8-SOIC / Comparator Dual R-R O/P 5V 8-Pin SOIC T/R | 7440 |
|
$0.3927 / $0.5879 | Buy Now |
US Tariff Estimator: LMV393MX by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LMV393MX
LMV393MX CAD Models
-

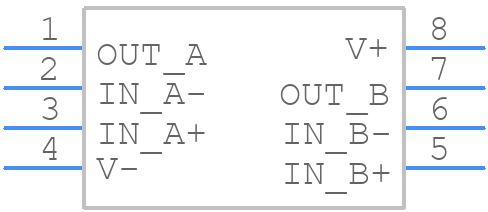

Part Symbol
-
