LMV751M5X Information
LMV751M5X by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LMV751M5X
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Peripheral ICs | 413 |
|
RFQ | |
|
|
Win Source Electronics | Op Amp Single Low Noise Amplifier R-R O/P 5V 5-Pin SOT-23 T/R / IC OPAMP GP 5MHZ SOT23-5 | 1920 |
|
$1.6121 / $2.4183 | Buy Now |
US Tariff Estimator: LMV751M5X by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LMV751M5X
LMV751M5X CAD Models
-

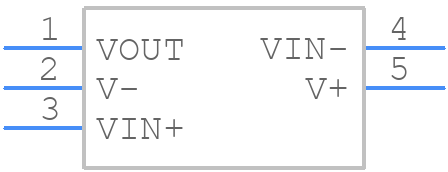

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LMV751M5X Part Data Attributes
|
|
LMV751M5X
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LMV751M5X
Texas Instruments
Low Noise, Low Vos, Single Op Amp 5-SOT-23 -40 to 85
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-23 | |
| Package Description | SOT-23, 5 PIN | |
| Pin Count | 5 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Common-mode Reject Ratio-Nom | 100 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 1500 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e0 | |
| Length | 2.9 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | YES | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Slew Rate-Nom | 2 V/us | |
| Supply Current-Max | 0.75 mA | |
| Supply Voltage Limit-Max | 5.5 V | |
| Supply Voltage-Nom (Vsup) | 2.7 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Unity Gain BW-Nom | 4500 | |
| Voltage Gain-Min | 17700 | |
| Wideband | NO | |
| Width | 1.6 mm |
Alternate Parts for LMV751M5X
This table gives cross-reference parts and alternative options found for LMV751M5X. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LMV751M5X, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM7301IM5X/NOPB | Texas Instruments | $1.6530 | Single, 30-V, 4-MHz operational amplifier 5-SOT-23 -40 to 85 | LMV751M5X vs LM7301IM5X/NOPB |
| LM7301IM5/NOPB | Texas Instruments | $1.9199 | Single, 30-V, 4-MHz operational amplifier 5-SOT-23 -40 to 85 | LMV751M5X vs LM7301IM5/NOPB |
| LMV751M5 | Texas Instruments | Check for Price | Single, 5.5-V, 5-MHz, low noise (6.5-nV/√Hz), 1-mV offset operational amplifier 5-SOT-23 -40 to 85 | LMV751M5X vs LMV751M5 |
| LMV751M5X/NOPB | Texas Instruments | Check for Price | Single, 5.5-V, 5-MHz, low noise (6.5-nV/√Hz), 1-mV offset operational amplifier 5-SOT-23 -40 to 85 | LMV751M5X vs LMV751M5X/NOPB |
| LM7301IM5X | Texas Instruments | Check for Price | Single, 30-V, 4-MHz operational amplifier 5-SOT-23 -40 to 85 | LMV751M5X vs LM7301IM5X |
| KM4112IT5 | Fairchild Semiconductor Corporation | Check for Price | Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, PDSO5, EIAJ, SC-74A, SOT-23, 5 PIN | LMV751M5X vs KM4112IT5 |
| LM7301IM | Texas Instruments | Check for Price | Single, 30-V, 4-MHz operational amplifier 8-SOIC -40 to 85 | LMV751M5X vs LM7301IM |
| LM7301IM5 | Texas Instruments | Check for Price | Single, 30-V, 4-MHz operational amplifier 5-SOT-23 -40 to 85 | LMV751M5X vs LM7301IM5 |
| LM7301IMX | Texas Instruments | Check for Price | OP-AMP, 8000uV OFFSET-MAX, 4MHz BAND WIDTH, PDSO8, SOIC-8 | LMV751M5X vs LM7301IMX |
