LMZ31520RLGT Information
LMZ31520RLGT by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LMZ31520RLGT | Texas Instruments | 3V to 14.5V, 20A Step-Down Power Module in 15x16x5.8mm QFN Package 72-BQFN -40 to 85 |
Price & Stock for LMZ31520RLGT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 218 |
|
RFQ | ||
|
DISTI #
LMZ31520RLGT-TEX-0
|
TME | Converter: DC/DC, Uin: 3÷14.5VDC, Iout: 20A, SMT, 16x15mm, OUT: 1 Min Qty: 250 | 1000 |
|
$20.4343 | Buy Now |
|
|
Chip Stock | 3Vto14.5V,20AStep-DownPowerModulein15x16x5.8mmQFNPackage72-BQFN-40to85 | 15000 |
|
RFQ | |
|
|
LCSC | BQFN-72(15x16) DC DC Converters RoHS | 144 |
|
$11.3432 / $14.5242 | Buy Now |
|
|
MacroQuest Electronics | ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018 | 1233 |
|
$16.6000 / $19.4300 | Buy Now |
|
|
Win Source Electronics | DC/DC CONVERTER 0.6-3.6V 72W | 11900 |
|
$8.3916 / $10.8391 | Buy Now |
US Tariff Estimator: LMZ31520RLGT by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LMZ31520RLGT
LMZ31520RLGT CAD Models
-

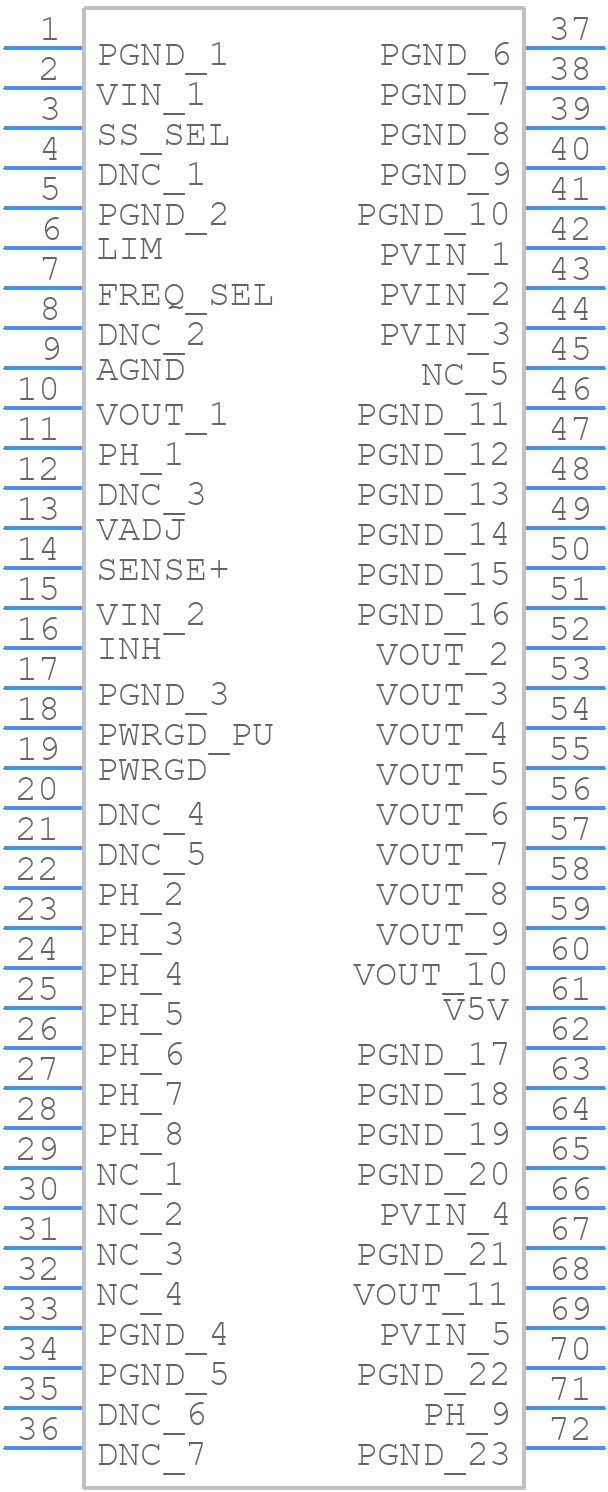

Part Symbol
-

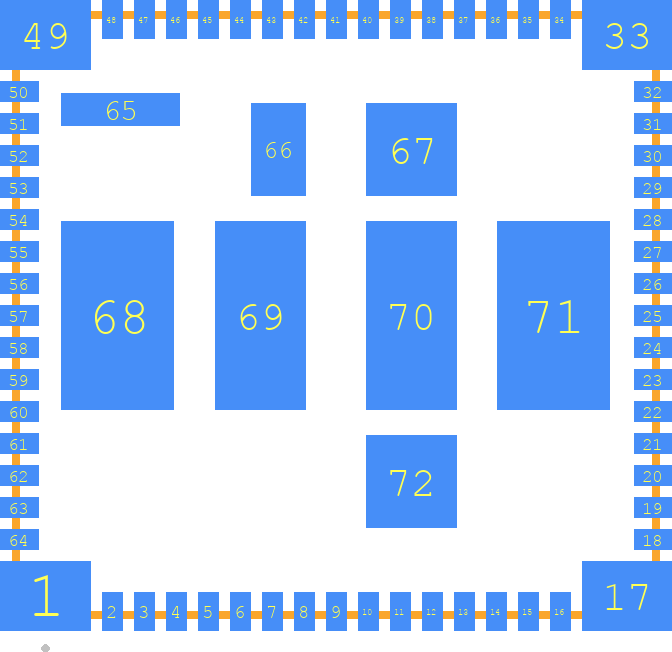

Footprint
-
