LP38691SD-5.0/NOPB Information
LP38691SD-5.0/NOPB by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LP38691SD-5.0/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip Stock | 500-mA,10-V,low-dropoutvoltageregulator6-WSON-40to125 | 5612 |
|
RFQ | |
|
|
Win Source Electronics | IC REG LDO 5V 0.5A 6WSON | 4112 |
|
$1.5396 / $2.3093 | Buy Now |
US Tariff Estimator: LP38691SD-5.0/NOPB by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LP38691SD-5.0/NOPB
LP38691SD-5.0/NOPB CAD Models
-

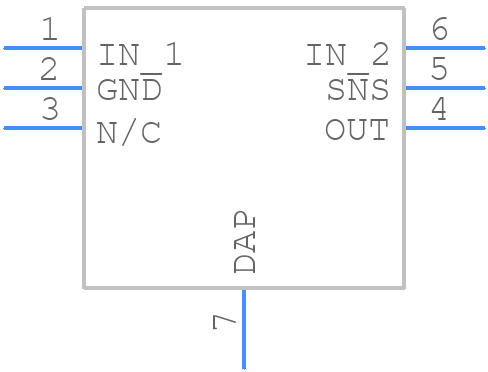

Part Symbol
-
Footprint
-

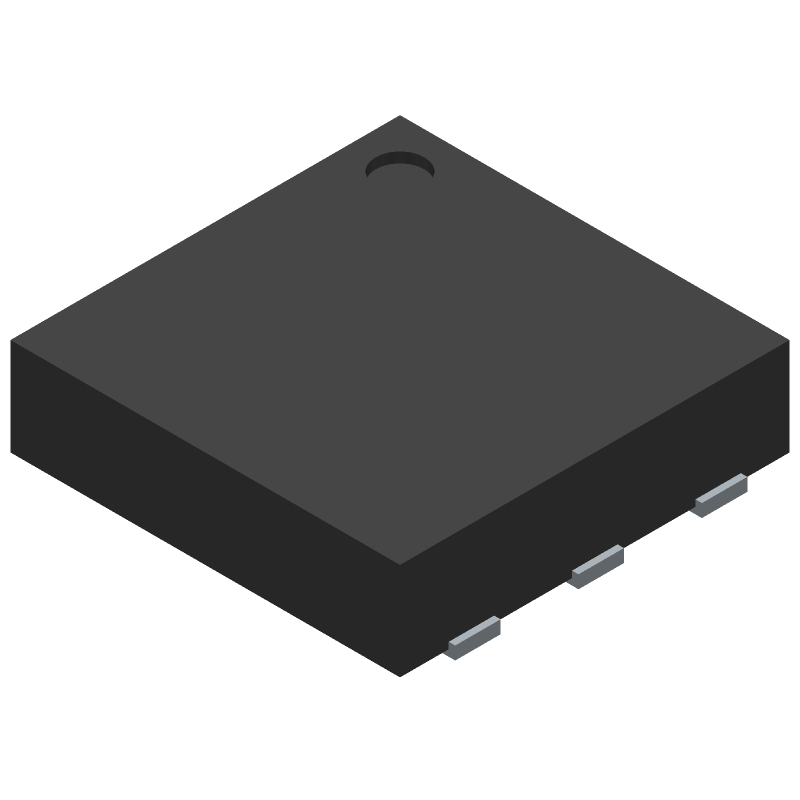

3D Model
