LSHM-140-02.5-S-DV-A-N-K-TR Information
LSHM-140-02.5-S-DV-A-N-K-TR by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for LSHM-140-02.5-S-DV-A-N-K-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LSHM-140-02.5-S-DV-A-N-K-TR
|
Avnet Americas | - Tape and Reel (Alt: LSHM-140-02.5-S-DV-A-N-K-TR) COO: Costa Rica RoHS: Compliant Min Qty: 600 Package Multiple: 600 Lead time: 5 Weeks, 1 Days Container: Reel | 0 |
|
$4.6848 / $4.7824 | Buy Now |
|
DISTI #
000000000005887261
|
Sager | Board to Board & Mezzanine Connectors 0.50 mm Razor Beam High-Speed Hermaphroditic Terminal/Socket Strip Min Qty: 1 | 0 |
|
$4.8800 / $7.4200 | Buy Now |
|
DISTI #
LSHM-140-02.5-S-DV-A-N-K-TR
|
Avnet Abacus | (Alt: LSHM-140-02.5-S-DV-A-N-K-TR) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
US Tariff Estimator: LSHM-140-02.5-S-DV-A-N-K-TR by Samtec Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LSHM-140-02.5-S-DV-A-N-K-TR
LSHM-140-02.5-S-DV-A-N-K-TR CAD Models
-

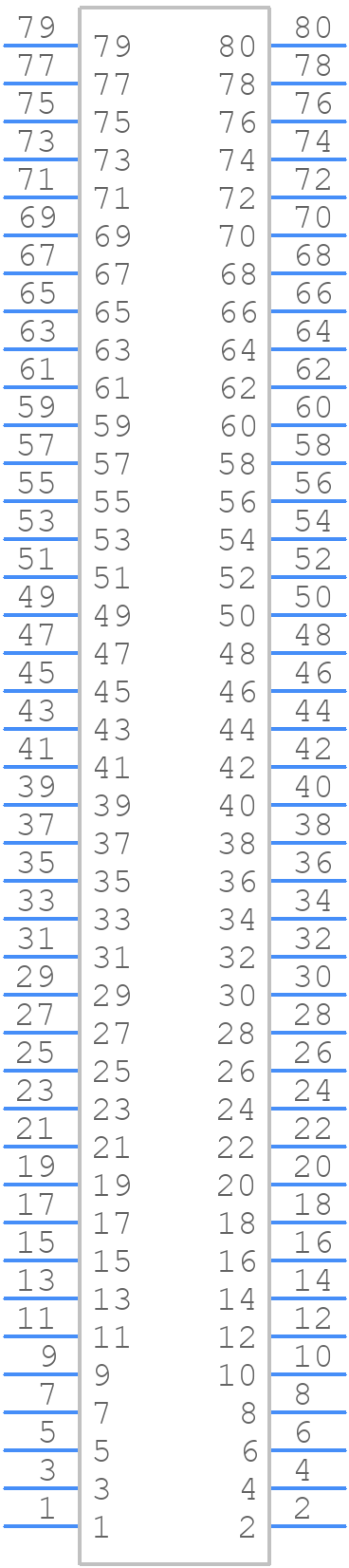

Part Symbol
-

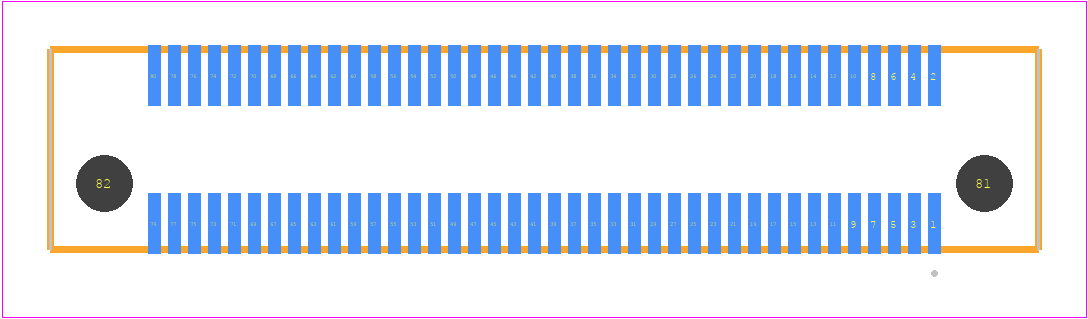

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LSHM-140-02.5-S-DV-A-N-K-TR Part Data Attributes
|
|
LSHM-140-02.5-S-DV-A-N-K-TR
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
LSHM-140-02.5-S-DV-A-N-K-TR
Samtec Inc
Board Stacking Connector
|
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 5 Weeks, 1 Day | |
| Board Mounting Option | Peg | |
| Body Breadth | 0.196 Inch | |
| Body Depth | 0.156 Inch | |
| Body Length | 0.972 Inch | |
| Connector Type | Board Stacking Connector | |
| Contact Finish Mating | Not Specified | |
| Contact Gender | Hermaphroditic | |
| Contact Material | Not Specified | |
| Contact Pattern | Rectangular | |
| Contact Resistance | 15 MΩ | |
| Contact Style | Bellowed Type | |
| Dielectric Withstanding Voltage | 470vac V | |
| Durability | 100 Cycles | |
| Filter Feature | No | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Color | Black | |
| Insulator Material | Liquid Crystal Polymer | |
| Mating Contact Pitch | 0.02 Inch | |
| Mating Information | Multiple Mating Parts Available | |
| Mixed Contacts | No | |
| Mounting Option 1 | Locking | |
| Mounting Style | Straight | |
| Mounting Type | Board | |
| Number Of Connectors | One | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | General Purpose | |
| PCB Contact Pattern | Rectangular | |
| PCB Contact Row Spacing | 3.7 Mm | |
| Plating Thickness | 30u Inch | |
| Polarization Key | Polarized Housing | |
| Rated Current (Signal) | 2 A | |
| Reference Standard | Ul | |
| Terminal Pitch | 0.5 Mm | |
| Termination Type | Surface Mount | |
| Total Number of Contacts | 80 | |
| UL Flammability Code | 94V-0 | |
| Withdrawl Force-Min | 2.22 N |
