LT1124CS8#PBF Information
LT1124CS8#PBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LT1124CS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK7828
|
Newark | Op-Amp, 12.5Mhz, 0 To 70Deg C, Soic-8, No. Of Channels:2Channels, Gain Bandwidth Product:12.5Mhz, Supply Voltage Range:± 4V To ± 18V, Ic Case/Package:Soic, No. Of Pins:8Pins, Amplifier Type:General Purpose, Rail To Rail:- Rohs Compliant: Yes |Analog Devices LT1124CS8#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 200 |
|
$4.4300 / $8.5700 | Buy Now |
|
|
Analog Devices Inc | 2x L N, Hi Speed Prec Op Amps Package Multiple: 100 | 9 |
|
$4.0200 / $10.7100 | Buy Now |
|
|
Rochester Electronics | Operational Amplifier, 2 Func, 170uV Offset-Max, BIPolar, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 | 23 |
|
$4.2300 / $5.2900 | Buy Now |
|
DISTI #
LT1124CS8#PBF
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 100 | 0 |
|
$5.1900 / $5.6900 | Buy Now |
US Tariff Estimator: LT1124CS8#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT1124CS8#PBF
LT1124CS8#PBF CAD Models
-

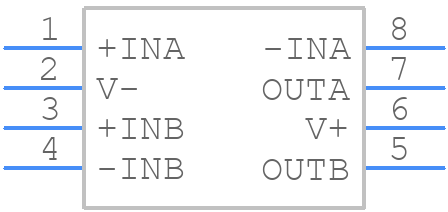

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LT1124CS8#PBF Part Data Attributes
|
|
LT1124CS8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1124CS8#PBF
Analog Devices Inc
Dual Low Noise, High Speed Precision Op Amps
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 0.150 INCH, LEAD FREE, PLASTIC, SOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1610 (S8) | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.045 µA | |
| Common-mode Reject Ratio-Min | 106 dB | |
| Common-mode Reject Ratio-Nom | 122 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 170 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9025 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -22 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.752 mm | |
| Slew Rate-Min | 2.7 V/us | |
| Slew Rate-Nom | 4 V/us | |
| Supply Current-Max | 2.75 mA | |
| Supply Voltage Limit-Max | 22 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 12500 | |
| Voltage Gain-Min | 1500000 | |
| Wideband | NO | |
| Width | 3.899 mm |
Alternate Parts for LT1124CS8#PBF
This table gives cross-reference parts and alternative options found for LT1124CS8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1124CS8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1124CS8-1#TRPBF | Linear Technology | Check for Price | IC DUAL OP-AMP, 170 uV OFFSET-MAX, 12.5 MHz BAND WIDTH, PDSO8, 0.150 INCH, LEAD FREE, PLASTIC, SOP-8, Operational Amplifier | LT1124CS8#PBF vs LT1124CS8-1#TRPBF |
| LT1124CS8 | Linear Technology | Check for Price | LT1124 - Dual Low Noise, High Speed Precision Op Amps; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C | LT1124CS8#PBF vs LT1124CS8 |
| LT1124CS8#PBF | Linear Technology | Check for Price | LT1124 - Dual Low Noise, High Speed Precision Op Amps; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C | LT1124CS8#PBF vs LT1124CS8#PBF |
| LT1124CS8#TR | Analog Devices Inc | Check for Price | Operational Amplifier, 2 Func, 170uV Offset-Max, BIPolar, PDSO8 | LT1124CS8#PBF vs LT1124CS8#TR |
| LT1124CS8 | Analog Devices Inc | Check for Price | Operational Amplifier, 2 Func, 170uV Offset-Max, BIPolar, PDSO8 | LT1124CS8#PBF vs LT1124CS8 |
| LT1124CS8#TR | Linear Technology | Check for Price | LT1124 - Dual Low Noise, High Speed Precision Op Amps; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C | LT1124CS8#PBF vs LT1124CS8#TR |
| LT1124CS8-1#PBF | Linear Technology | Check for Price | IC DUAL OP-AMP, 170 uV OFFSET-MAX, 12.5 MHz BAND WIDTH, PDSO8, 0.150 INCH, LEAD FREE, PLASTIC, SOP-8, Operational Amplifier | LT1124CS8#PBF vs LT1124CS8-1#PBF |
