Part Details for LT1790ACS6-5#TRMPBF by Analog Devices Inc
Results Overview of LT1790ACS6-5#TRMPBF by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (3 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LT1790ACS6-5#TRMPBF Information
LT1790ACS6-5#TRMPBF by Analog Devices Inc is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT1790ACS6-5#TRMPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK4985
|
Newark | Volt Ref, 5V, Tsot-23-6, 0 To 70Deg C, Voltage Reference Type:Series, Product Range:Lt1790 Series, Reference Voltage Min:4.9975V, Reference Voltage Max:5.0025V, Initial Accuracy:0.05%, Temperature Coefficient:10Ppm/°C Rohs Compliant: Yes |Analog Devices LT1790ACS6-5#TRMPBF RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4 |
|
$4.3100 / $9.5600 | Buy Now |
|
|
Analog Devices Inc | uP SOT-23 L Drop Ref Fam Package Multiple: 500 | 45548 |
|
$3.4500 / $9.5600 | Buy Now |
|
DISTI #
LT1790ACS65TRMP
|
Richardson RFPD | VOLTAGE REFERENCE RoHS: Compliant Min Qty: 500 | 0 |
|
$4.4600 / $4.7500 | Buy Now |
US Tariff Estimator: LT1790ACS6-5#TRMPBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT1790ACS6-5#TRMPBF
LT1790ACS6-5#TRMPBF CAD Models
-

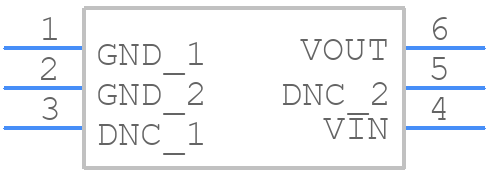

Part Symbol
-
Footprint
-

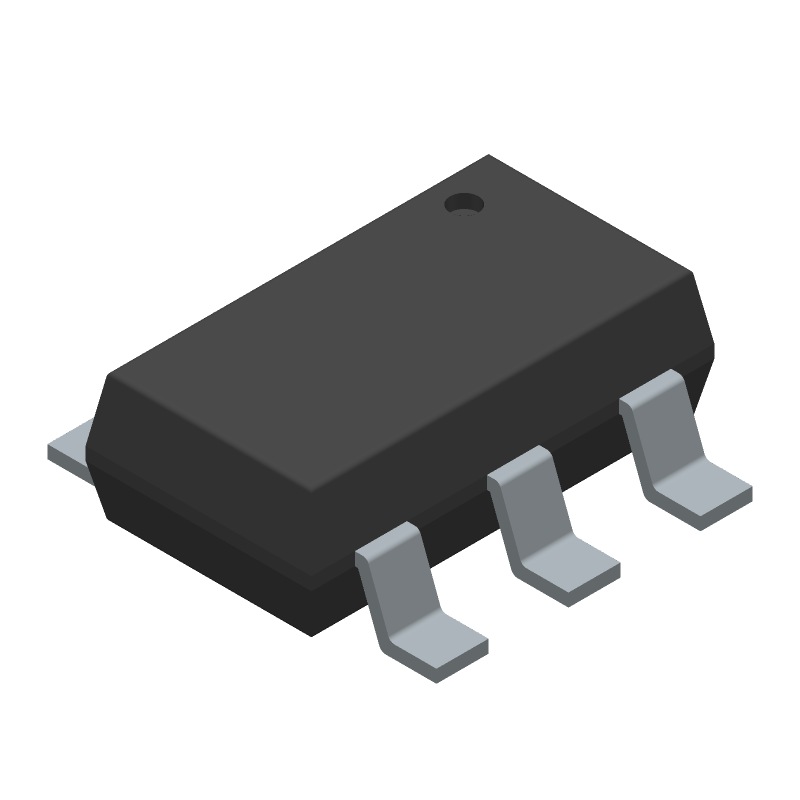

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LT1790ACS6-5#TRMPBF Part Data Attributes
|
|
LT1790ACS6-5#TRMPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1790ACS6-5#TRMPBF
Analog Devices Inc
Micropower SOT-23 Low Dropout Reference Family
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | VSSOP, TSOP6,.11,37 | |
| Pin Count | 6 | |
| Manufacturer Package Code | 05-08-1636 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.95 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Voltage-Max | 5.006 V | |
| Output Voltage-Min | 4.994 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 5.5 V | |
| Supply Voltage-Nom (Vsup) | 5.5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temp Coef of Voltage-Max | 10 ppm/°C | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | NO | |
| Width | 1.625 mm |
Alternate Parts for LT1790ACS6-5#TRMPBF
This table gives cross-reference parts and alternative options found for LT1790ACS6-5#TRMPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1790ACS6-5#TRMPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1790AIS6-5#TRMPBF | Analog Devices Inc | $6.8355 | Micropower SOT-23 Low Dropout Reference Family | LT1790ACS6-5#TRMPBF vs LT1790AIS6-5#TRMPBF |
| LT1790ACS6-5#TRPBF | Analog Devices Inc | Check for Price | Micropower SOT-23 Low Dropout Reference Family | LT1790ACS6-5#TRMPBF vs LT1790ACS6-5#TRPBF |
| LT1790AIS6-5#TRMPBF | Linear Technology | Check for Price | LT1790 - Micropower SOT-23 Low Dropout Reference Family; Package: SOT; Pins: 6; Temperature Range: -40°C to 85°C | LT1790ACS6-5#TRMPBF vs LT1790AIS6-5#TRMPBF |
LT1790ACS6-5#TRMPBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT1790ACS6-5 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
-
To ensure stability, ensure that the output capacitor is within the recommended range, the input voltage is within the specified range, and the device is operated within the recommended temperature range. Additionally, a minimum ESR of 0.1 ohms is recommended for the output capacitor.
-
The maximum ambient temperature range for the LT1790ACS6-5 is -40°C to 125°C. However, the device can operate up to 150°C with derating.
-
Yes, the LT1790ACS6-5 is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high reliability. However, it is recommended to follow the recommended operating conditions and PCB layout guidelines to ensure optimal performance.
-
To troubleshoot issues with the LT1790ACS6-5, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within the recommended operating conditions and that the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the output.
