LT1963ES8-3.3#PBF Information
LT1963ES8-3.3#PBF by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT1963ES8-3.3#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK5108
|
Newark | Ldo, Fixed, 3.3V, 1.5A, Nsoic, 125Deg C, Output Type:Fixed, Input Voltage Min:2.1V, Input Voltage Max:20V, No. Of Outputs:-, Output Voltage - Nom:3.3V, Output Voltage Min:-, Output Voltage Max:-, Polarity:-, Max Output Current:1.5A Rohs Compliant: Yes |Analog Devices LT1963ES8-3.3#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 100 |
|
$3.3800 / $7.7400 | Buy Now |
|
|
Analog Devices Inc | 1.5A, L N, Fast Tran Resp LDO Package Multiple: 100 | 4444 |
|
$2.7100 / $8.0000 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 20 |
|
$2.6880 / $5.3760 | Buy Now |
|
|
Rochester Electronics | Fixed Positive LDO Regulator, 3.3V, 0.55V Dropout, BIPolar, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 | 25 |
|
$2.8600 / $3.5700 | Buy Now |
|
DISTI #
LT1963ES8-3.3PB
|
Richardson RFPD | VOLTAGE REGULATOR RoHS: Compliant Min Qty: 100 | 0 |
|
$3.5000 / $3.8400 | Buy Now |
US Tariff Estimator: LT1963ES8-3.3#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT1963ES8-3.3#PBF
LT1963ES8-3.3#PBF CAD Models
-

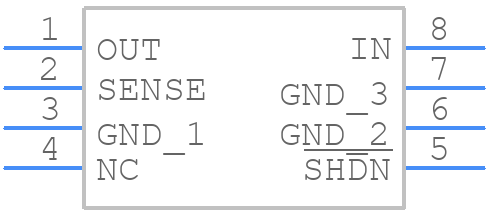

Part Symbol
-
