Part Details for LT1965EDD#PBF by Analog Devices Inc
Results Overview of LT1965EDD#PBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (5 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LT1965EDD#PBF Information
LT1965EDD#PBF by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT1965EDD#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK8473
|
Newark | Ldo, Adj, 1.1A, Dfn-Ep, -40 To 125Deg C, Output Type:Adjustable, Input Voltage Min:1.8V, Input Voltage Max:20V, No. Of Outputs:-, Output Voltage - Nom:-, Output Voltage Min:1.2V, Output Voltage Max:19.5V, Polarity:- Rohs Compliant: Yes |Analog Devices LT1965EDD#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 289 |
|
$2.8500 / $7.0500 | Buy Now |
|
|
Analog Devices Inc | 1.1A, L N, L Drop Lin Reg Package Multiple: 121 | 1109 |
|
$2.2800 / $7.0500 | Buy Now |
|
DISTI #
LT1965EDDPBF
|
TME | IC: voltage regulator, LDO,adjustable, 1455÷3399mV, 1.1A, DFN8 Min Qty: 1 | 0 |
|
$3.2300 / $4.8500 | RFQ |
|
DISTI #
LT1965EDD#PBF
|
Richardson RFPD | VOLTAGE REGULATOR RoHS: Compliant Min Qty: 121 | 0 |
|
$2.9500 / $3.2300 | Buy Now |
|
|
Chip Stock | LDORegulatorPos1.2Vto19.5V1.1AAutomotive8-PinDFNEP | 11300 |
|
RFQ |
US Tariff Estimator: LT1965EDD#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT1965EDD#PBF
LT1965EDD#PBF CAD Models
-

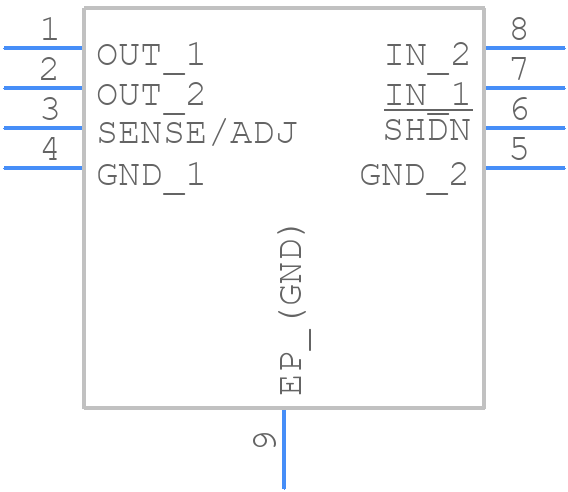

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LT1965EDD#PBF Part Data Attributes
|
|
LT1965EDD#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1965EDD#PBF
Analog Devices Inc
1.1A, Low Noise, Low Dropout Linear Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Dfn-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1698 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Adjustability | Adjustable | |
| Dropout Voltage1-Max | 0.49 V | |
| Dropout Voltage1-Nom | 0.31 V | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 3 Mm | |
| Line Regulation-Max (%/V) | 0.0372 | |
| Load Regulation-Max(%) | 1.3333% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Output Current1-Max | 1.1 A | |
| Output Voltage1-Max | 19.5 V | |
| Output Voltage1-Min | 1.2 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVSON | |
| Package Shape | Square | |
| Package Style | Small Outline, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | Adjustable Positive Single Output Ldo Regulator | |
| Seated Height-Max | 0.8 Mm | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 Mm |
Alternate Parts for LT1965EDD#PBF
This table gives cross-reference parts and alternative options found for LT1965EDD#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1965EDD#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1965IDD#TRPBF | Analog Devices Inc | $3.4306 | 1.1A, Low Noise, Low Dropout Linear Regulator | LT1965EDD#PBF vs LT1965IDD#TRPBF |
| LT1965IDD#PBF | Analog Devices Inc | $3.9226 | 1.1A, Low Noise, Low Dropout Linear Regulator | LT1965EDD#PBF vs LT1965IDD#PBF |
| LT1965EDD#TRPBF | Linear Technology | Check for Price | LT1965 - 1.1A, Low Noise, Low Dropout Linear Regulator; Package: DFN; Pins: 8; Temperature Range: -40°C to 85°C | LT1965EDD#PBF vs LT1965EDD#TRPBF |
| LT1965EDD#PBF | Linear Technology | Check for Price | LT1965 - 1.1A, Low Noise, Low Dropout Linear Regulator; Package: DFN; Pins: 8; Temperature Range: -40°C to 85°C | LT1965EDD#PBF vs LT1965EDD#PBF |
| LT1965IDD#PBF | Linear Technology | Check for Price | LT1965 - 1.1A, Low Noise, Low Dropout Linear Regulator; Package: DFN; Pins: 8; Temperature Range: -40°C to 85°C | LT1965EDD#PBF vs LT1965IDD#PBF |
LT1965EDD#PBF Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the LT1965EDD is 15V, but it's recommended to operate within the specified input voltage range of 3.5V to 15V for optimal performance.
-
To ensure stability in the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a minimum 10uF output capacitor and a 1uF input capacitor, and to avoid exceeding the maximum output current rating.
-
The minimum input voltage required for the LT1965EDD to operate is 3.5V, but it's recommended to operate at a minimum of 4V to ensure optimal performance and stability.
-
The LT1965EDD is rated for operation up to 125°C, but it's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation. It's recommended to follow the thermal management guidelines provided in the datasheet.
-
The output voltage of the LT1965EDD can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the resistors in the feedback network, Vin is the input voltage, and Vref is the reference voltage (typically 1.25V).
