Part Details for LT1965EDD#TRPBF by Analog Devices Inc
Results Overview of LT1965EDD#TRPBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (6 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LT1965EDD#TRPBF Information
LT1965EDD#TRPBF by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT1965EDD#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK5122
|
Newark | Ldo, Adj, 1.1A, Dfn-Ep, -40 To 125Deg C, Output Type:Adjustable, Input Voltage Min:1.8V, Input Voltage Max:20V, No. Of Outputs:-, Output Voltage - Nom:-, Output Voltage Min:1.2V, Output Voltage Max:19.5V, Polarity:- Rohs Compliant: Yes |Analog Devices LT1965EDD#TRPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2877 |
|
$2.8500 / $6.9100 | Buy Now |
|
|
Analog Devices Inc | 1.1A, L N, L Drop Lin Reg Min Qty: 1 Package Multiple: 2500 | 1527 |
|
$2.2800 / $7.0500 | Buy Now |
|
|
Bristol Electronics | 2678 |
|
RFQ | ||
|
|
Ameya Holding Limited | IC REG LDO ADJ 1.1A 8DFN | 27 |
|
RFQ | |
|
DISTI #
LT1965EDD#TRPBF
|
Richardson RFPD | VOLTAGE REGULATOR RoHS: Compliant Min Qty: 2500 | 0 |
|
$2.9500 / $3.0600 | Buy Now |
|
DISTI #
SMC-LT1965EDD#TRPBF
|
Sensible Micro Corporation | Ldo Regulator Pos 1.2V To 19.5V 1.1A 8-Pin Dfn Ep T/R RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1528 Container: Tape & Reel | 265 |
|
RFQ | |
|
|
Chip Stock | Ic,VoltRegulator,Adjustable,+1.2To20V,Bipolar,Llcc,8Pin,Plastic | 64500 |
|
RFQ |
US Tariff Estimator: LT1965EDD#TRPBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT1965EDD#TRPBF
LT1965EDD#TRPBF CAD Models
-

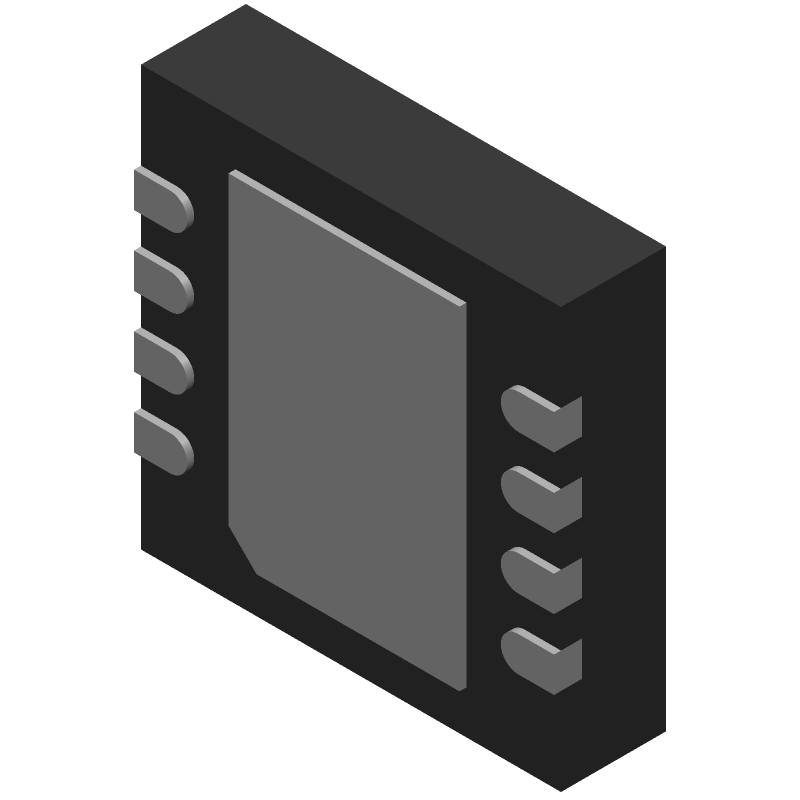

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LT1965EDD#TRPBF Part Data Attributes
|
|
LT1965EDD#TRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1965EDD#TRPBF
Analog Devices Inc
1.1A, Low Noise, Low Dropout Linear Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Dfn-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1698 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Adjustability | Adjustable | |
| Dropout Voltage1-Max | 0.49 V | |
| Dropout Voltage1-Nom | 0.31 V | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 3 Mm | |
| Line Regulation-Max (%/V) | 0.0372 | |
| Load Regulation-Max(%) | 1.3333% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 1.1 A | |
| Output Voltage1-Max | 19.5 V | |
| Output Voltage1-Min | 1.2 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVSON | |
| Package Shape | Square | |
| Package Style | Small Outline, Heat Sink/Slug, Very Thin Profile | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | Adjustable Positive Single Output Ldo Regulator | |
| Seated Height-Max | 0.8 Mm | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 Mm |
Alternate Parts for LT1965EDD#TRPBF
This table gives cross-reference parts and alternative options found for LT1965EDD#TRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1965EDD#TRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1965EDD#PBF | Analog Devices Inc | $3.3083 | 1.1A, Low Noise, Low Dropout Linear Regulator | LT1965EDD#TRPBF vs LT1965EDD#PBF |
| LT1965IDD#TRPBF | Analog Devices Inc | $3.4306 | 1.1A, Low Noise, Low Dropout Linear Regulator | LT1965EDD#TRPBF vs LT1965IDD#TRPBF |
| LT1965IDD#PBF | Analog Devices Inc | $3.9226 | 1.1A, Low Noise, Low Dropout Linear Regulator | LT1965EDD#TRPBF vs LT1965IDD#PBF |
| LT1965EDD#TRPBF | Linear Technology | Check for Price | LT1965 - 1.1A, Low Noise, Low Dropout Linear Regulator; Package: DFN; Pins: 8; Temperature Range: -40°C to 85°C | LT1965EDD#TRPBF vs LT1965EDD#TRPBF |
| LT1965EDD#PBF | Linear Technology | Check for Price | LT1965 - 1.1A, Low Noise, Low Dropout Linear Regulator; Package: DFN; Pins: 8; Temperature Range: -40°C to 85°C | LT1965EDD#TRPBF vs LT1965EDD#PBF |
| LT1965IDD#PBF | Linear Technology | Check for Price | LT1965 - 1.1A, Low Noise, Low Dropout Linear Regulator; Package: DFN; Pins: 8; Temperature Range: -40°C to 85°C | LT1965EDD#TRPBF vs LT1965IDD#PBF |
LT1965EDD#TRPBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT1965EDD involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
-
To ensure stability, use a minimum output capacitance of 10uF, and consider adding a 1-2uF ceramic capacitor in parallel with the output capacitor to improve transient response. Also, ensure the input voltage is well-regulated and the device is properly decoupled.
-
The LT1965EDD is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal management guidelines for more information.
-
Yes, the LT1965EDD is available in a variety of grades, including the 'MP' grade, which is designed for high-reliability applications. However, it's essential to consult with Analog Devices' sales team and review the device's qualification data to ensure it meets the specific requirements of your application.
-
Use a voltage supervisor or a voltage monitor to detect overvoltage conditions and shut down the device if necessary. Also, consider adding overcurrent protection using a fuse or a current-sensing resistor to prevent damage from excessive current.
