LTC1966HMS8#PBF Information
LTC1966HMS8#PBF by Analog Devices Inc is an Analog Special Function Converter.
Analog Special Function Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC1966HMS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK2217
|
Newark | Rms-Dc Converter, 0.1%, 800Khz, 158Ua, Accuracy:0.1%, Bandwidth:800Khz, Operating Temperature Min:-40°C, Operating Temperature Max:125°C, Digital Ic Case:Msop, No. Of Pins:8Pins, Supply Voltage Range:2.7V To ± 5.5V, Product Range:- Rohs Compliant: Yes |Analog Devices LTC1966HMS8#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 10 |
|
$11.3400 / $19.8500 | Buy Now |
|
|
Analog Devices Inc | Prec uP, DS RMS-to-DC Conv Package Multiple: 50 | 470 |
|
$9.0800 / $19.8500 | Buy Now |
|
DISTI #
LTC1966HMS8#PBF
|
Richardson RFPD | MISCELLANEOUS CONVERTER RoHS: Compliant Min Qty: 50 | 0 |
|
$11.7200 / $13.6200 | Buy Now |
|
|
Chip Stock | LTC1966-PrecisionMicropower,DeltaSigmaRMS-to-DCConverter | 53500 |
|
RFQ | |
|
|
Win Source Electronics | IC RMS TO DC CONVERTER 8MSOP | 50000 |
|
$7.2727 / $10.9090 | Buy Now |
US Tariff Estimator: LTC1966HMS8#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC1966HMS8#PBF
LTC1966HMS8#PBF CAD Models
-

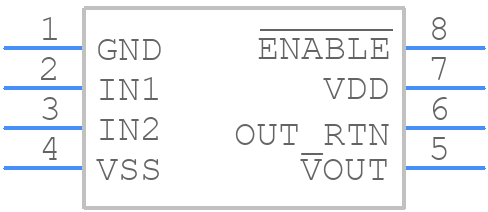

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC1966HMS8#PBF Part Data Attributes
|
|
LTC1966HMS8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC1966HMS8#PBF
Analog Devices Inc
Precision Micropower ΔΣ RMS-to-DC Converter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Tssop, | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1660 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Converter Type | Rms To Dc Converter | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 Mm | |
| Linearity Error-Max (EL) | 0.15% | |
| Moisture Sensitivity Level | 1 | |
| Negative Input Voltage-Max | -5.5 V | |
| Negative Supply Voltage-Max | -5.5 V | |
| Negative Supply Voltage-Min | ||
| Negative Supply Voltage-Nom | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Frequency-Max | 0.8 Mhz | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Shape | Square | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Positive Input Voltage-Max | 5.5 V | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 Mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Military | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 Mm |
Alternate Parts for LTC1966HMS8#PBF
This table gives cross-reference parts and alternative options found for LTC1966HMS8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC1966HMS8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC1966MPMS8#PBF | Analog Devices Inc | $10.6139 | Precision Micropower ΔΣ RMS-to-DC Converter | LTC1966HMS8#PBF vs LTC1966MPMS8#PBF |
| LTC1966CMS8#PBF | Analog Devices Inc | $4.1992 | Precision Micropower ΔΣ RMS-to-DC Converter | LTC1966HMS8#PBF vs LTC1966CMS8#PBF |
| LTC1966IMS8#TRPBF | Analog Devices Inc | $8.0435 | Precision Micropower ΔΣ RMS-to-DC Converter | LTC1966HMS8#PBF vs LTC1966IMS8#TRPBF |
| LTC1966IMS8#TRPBF | Linear Technology | Check for Price | LTC1966 - Precision Micropower, Delta Sigma RMS-to-DC Converter; Package: MSOP; Pins: 8; Temperature Range: -40°C to 85°C | LTC1966HMS8#PBF vs LTC1966IMS8#TRPBF |
| LTC1966MPMS8#TRPBF | Analog Devices Inc | Check for Price | Precision Micropower ΔΣ RMS-to-DC Converter | LTC1966HMS8#PBF vs LTC1966MPMS8#TRPBF |
| LTC1966CMS8 | Analog Devices Inc | Check for Price | RMS to DC Converter, 1 Func, PDSO8 | LTC1966HMS8#PBF vs LTC1966CMS8 |
| LTC1966IMS8#TR | Analog Devices Inc | Check for Price | RMS to DC Converter, 1 Func, CMOS, PDSO8 | LTC1966HMS8#PBF vs LTC1966IMS8#TR |
| LTC1966IMS8 | Linear Technology | Check for Price | LTC1966 - Precision Micropower, Delta Sigma RMS-to-DC Converter; Package: MSOP; Pins: 8; Temperature Range: -40°C to 85°C | LTC1966HMS8#PBF vs LTC1966IMS8 |
