Part Details for LTC2451CTS8#TRMPBF by Analog Devices Inc
Results Overview of LTC2451CTS8#TRMPBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LTC2451CTS8#TRMPBF Information
LTC2451CTS8#TRMPBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC2451CTS8#TRMPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK2401
|
Newark | Adc, 16Bit, 60Sps, Tsot-23-8, Resolution (Bits):16Bit, Sampling Rate:60Sps, Input Channel Type:Single Ended, Data Interface:I2C, Supply Voltage Type:Single, Supply Voltage Min:2.7V, Supply Voltage Max:5.5V, No. Of Pins:8Pins Rohs Compliant: Yes |Analog Devices LTC2451CTS8#TRMPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 535 |
|
$1.6200 / $3.9800 | Buy Now |
|
|
Analog Devices Inc | Ultra-Tiny, 16-B ?S ADC w/ I2C Package Multiple: 500 | 10786 |
|
$1.7625 / $4.9700 | Buy Now |
|
|
Ameya Holding Limited | IC ADC 16BIT DELTA SIG TSOT23-8 | 33 |
|
RFQ | |
|
DISTI #
LTC2451CTS8TRMP
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 500 | 0 |
|
$1.8200 / $1.9500 | Buy Now |
|
|
Chip Stock | SingleADCDelta-Sigma60sps16-bitSerial8-PinTSOT-23T/R | 6530 |
|
RFQ | |
|
|
Win Source Electronics | IC ADC 16BIT SIG-DELTA TSOT23-8 | 5030 |
|
$3.1281 / $4.6921 | Buy Now |
US Tariff Estimator: LTC2451CTS8#TRMPBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC2451CTS8#TRMPBF
LTC2451CTS8#TRMPBF CAD Models
-

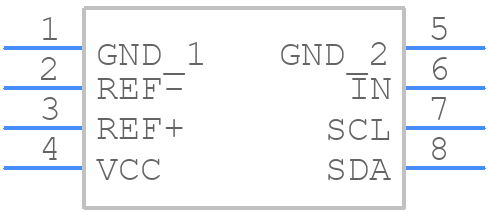

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC2451CTS8#TRMPBF Part Data Attributes
|
|
LTC2451CTS8#TRMPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC2451CTS8#TRMPBF
Analog Devices Inc
Ultra-Tiny, 16-Bit ΔΣ ADC with I<sup>2</sup>C Interface
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | VSSOP, TSSOP8,.1 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1637 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 5.5 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 0.023 µs | |
| Converter Type | ADC, DELTA-SIGMA | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Linearity Error-Max (EL) | 0.0153% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Equivalence Code | TSSOP8,.1 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.00006 MHz | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.625 mm |
Alternate Parts for LTC2451CTS8#TRMPBF
This table gives cross-reference parts and alternative options found for LTC2451CTS8#TRMPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC2451CTS8#TRMPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC2451ITS8#TRMPBF | Analog Devices Inc | $2.5883 | Ultra-Tiny, 16-Bit ΔΣ ADC with I2C Interface | LTC2451CTS8#TRMPBF vs LTC2451ITS8#TRMPBF |
| LTC2451ITS8#TRPBF | Analog Devices Inc | Check for Price | Ultra-Tiny, 16-Bit ΔΣ ADC with I2C Interface | LTC2451CTS8#TRMPBF vs LTC2451ITS8#TRPBF |
| LTC2451CTS8#PBF | Linear Technology | Check for Price | LTC2451 - Ultra-Tiny, 16-Bit ΔΣ ADC with I2C Interface; Package: SOT; Pins: 8; Temperature Range: 0°C to 70°C | LTC2451CTS8#TRMPBF vs LTC2451CTS8#PBF |
| LTC2451CTS8 | Linear Technology | Check for Price | IC 1-CH 16-BIT DELTA-SIGMA ADC, SERIAL ACCESS, PDSO8, PLASTIC, MO-193, TSOT-23, 8 PIN, Analog to Digital Converter | LTC2451CTS8#TRMPBF vs LTC2451CTS8 |
| LTC2451CTS8B#TRMPBF | Linear Technology | Check for Price | IC 1-CH 16-BIT DELTA-SIGMA ADC, SERIAL ACCESS, PDSO8, LEAD FREE, PLASTIC, MO-193, TSOT-23, 8 PIN, Analog to Digital Converter | LTC2451CTS8#TRMPBF vs LTC2451CTS8B#TRMPBF |
| LTC2451CTS8#TRMPBF | Linear Technology | Check for Price | LTC2451 - Ultra-Tiny, 16-Bit ΔΣ ADC with I2C Interface; Package: SOT; Pins: 8; Temperature Range: 0°C to 70°C | LTC2451CTS8#TRMPBF vs LTC2451CTS8#TRMPBF |
| LTC2451ITS8 | Linear Technology | Check for Price | IC 1-CH 16-BIT DELTA-SIGMA ADC, SERIAL ACCESS, PDSO8, PLASTIC, MO-193, TSOT-23, 8 PIN, Analog to Digital Converter | LTC2451CTS8#TRMPBF vs LTC2451ITS8 |
| LTC2451ITS8#TRMPBF | Linear Technology | Check for Price | LTC2451 - Ultra-Tiny, 16-Bit ΔΣ ADC with I2C Interface; Package: SOT; Pins: 8; Temperature Range: -40°C to 85°C | LTC2451CTS8#TRMPBF vs LTC2451ITS8#TRMPBF |
| LTC2451ITS8#TRPBF | Linear Technology | Check for Price | LTC2451 - Ultra-Tiny, 16-Bit ΔΣ ADC with I2C Interface; Package: SOT; Pins: 8; Temperature Range: -40°C to 85°C | LTC2451CTS8#TRMPBF vs LTC2451ITS8#TRPBF |
| LTC2451CTS8 | Analog Devices Inc | Check for Price | ADC, Delta-Sigma, 16-Bit, 1 Func, 1 Channel, Serial Access, PDSO8 | LTC2451CTS8#TRMPBF vs LTC2451CTS8 |
LTC2451CTS8#TRMPBF Frequently Asked Questions (FAQ)
-
The recommended layout and routing for the LTC2451 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
To optimize the performance of the LTC2451 in noisy environments, use a low-pass filter at the input, use a shielded cable, and keep the analog and digital grounds separate. Additionally, consider using a common-mode filter or a ferrite bead to reduce electromagnetic interference (EMI).
-
The maximum sampling rate of the LTC2451 is 1.5Msps (megasamples per second). However, the actual sampling rate may be limited by the system's clock frequency, the input signal's bandwidth, and the desired signal-to-noise ratio (SNR).
-
The LTC2451 does not require calibration. It has an internal calibration circuit that sets the gain and offset of the ADC. However, the user may need to perform a system-level calibration to compensate for any errors introduced by the external circuitry.
-
The power consumption of the LTC2451 depends on the operating mode and the clock frequency. In normal operation, the typical power consumption is around 35mW at 3.3V supply voltage. In shutdown mode, the power consumption is typically less than 1μW.
