LTC2607CDE#PBF Information
LTC2607CDE#PBF by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC2607CDE#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK2438
|
Newark | Dac, 16Bit, Dfn-12, 0 To 70Deg C, Resolution (Bits):16Bit, Sampling Rate:-, Data Interface:2 Wire, I2C, Serial, Supply Voltage Range:2.7V To 5.5V, Adc/Dac Case Style:Dfn, No. Of Pins:12Pins, Input Channel Type:Single Ended Rohs Compliant: Yes |Analog Devices LTC2607CDE#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 170 |
|
$7.7900 / $14.8900 | Buy Now |
|
|
Analog Devices Inc | 16-B 2x R2R DACs w/ I2C Int Package Multiple: 91 | 638 |
|
$6.2300 / $14.8900 | Buy Now |
|
DISTI #
LTC2607CDE#PBF
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 91 | 0 |
|
$8.0500 / $9.3400 | Buy Now |
|
|
Chip Stock | SerialInputLoading10UsSettlingTime16-BITDacPDSO12 | 1005 |
|
RFQ |
US Tariff Estimator: LTC2607CDE#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC2607CDE#PBF
LTC2607CDE#PBF CAD Models
-

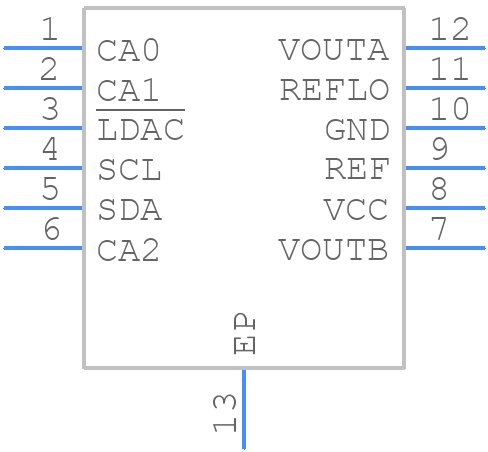

Part Symbol
-
