Part Details for LTC2801IDE#PBF by Analog Devices Inc
Results Overview of LTC2801IDE#PBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (5 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
Electronic Manufacturing
Automotive
Robotics and Drones
LTC2801IDE#PBF Information
LTC2801IDE#PBF by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for LTC2801IDE#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK6599
|
Newark | Rs232 Transceiver, -40 To 85Deg C, Ic Type:Rs232 Transceiver, No. Of Receivers:1Receivers, No. Of Transmitters:1, Communication Mode:-, Data Rate Max:250Kbps, Supply Voltage Min:1.8V, Supply Voltage Max:5.5V, Ic Case/Package:Dfn Rohs Compliant: Yes |Analog Devices LTC2801IDE#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 265 |
|
$3.0300 / $7.1100 | Buy Now |
|
|
Analog Devices Inc | 1.8V to 5.5V RS-232 1x & 2x Tr Package Multiple: 91 | 75 |
|
$2.3100 / $7.1100 | Buy Now |
|
|
Bristol Electronics | Min Qty: 2 | 4 |
|
$4.9280 | Buy Now |
|
DISTI #
LTC2801IDEPBF
|
TME | IC: interface, transceiver, half duplex,RS232, 250kbps, DFN12 Min Qty: 1 | 0 |
|
$3.2800 / $4.9100 | RFQ |
|
DISTI #
LTC2801IDE#PBF
|
Richardson RFPD | INTERFACE - TRANSCEIVER RoHS: Compliant Min Qty: 182 | 0 |
|
$2.9800 / $3.2700 | Buy Now |
|
DISTI #
SMC-LTC2801IDE#PBF
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days Date Code: TBC | 137 |
|
RFQ | |
|
|
Chip Stock | LTC2801-1.8Vto5.5VRS-232SingleandDualTransceivers | 9500 |
|
RFQ |
US Tariff Estimator: LTC2801IDE#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC2801IDE#PBF
LTC2801IDE#PBF CAD Models
-

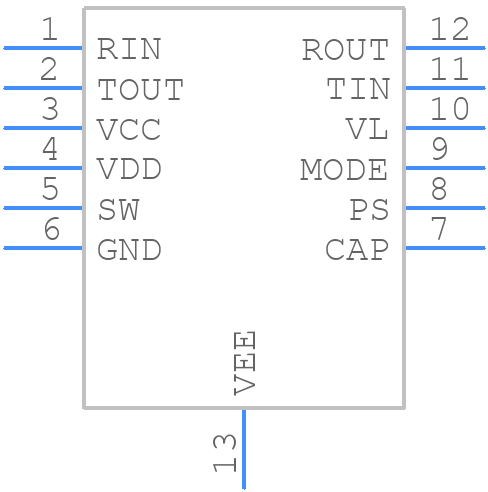

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC2801IDE#PBF Part Data Attributes
|
|
LTC2801IDE#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC2801IDE#PBF
Analog Devices Inc
1.8V to 5.5V RS-232 Single and Dual Transceivers
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Hvson, Solcc12,.12,20 | |
| Pin Count | 12 | |
| Manufacturer Package Code | 05-08-1695 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Differential Output | No | |
| Driver Number of Bits | 1 | |
| Input Characteristics | Schmitt Trigger | |
| Interface IC Type | Line Transceiver | |
| Interface Standard | Eia-232-F; Tia-232-F | |
| JESD-30 Code | R-PDSO-N12 | |
| JESD-609 Code | e3 | |
| Length | 4 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 12 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC12,.12,20 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 400 Ns | |
| Receiver Number of Bits | 1 | |
| Seated Height-Max | 0.8 Mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 1.8 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 2000 Ns | |
| Width | 3 Mm |
Alternate Parts for LTC2801IDE#PBF
This table gives cross-reference parts and alternative options found for LTC2801IDE#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC2801IDE#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC2801CDE#PBF | Analog Devices Inc | $3.1456 | 1.8V to 5.5V RS-232 Single and Dual Transceivers | LTC2801IDE#PBF vs LTC2801CDE#PBF |
| LTC2801IDE | Analog Devices Inc | Check for Price | Line Transceiver, 1 Func, 1 Driver, 1 Rcvr, PDSO12 | LTC2801IDE#PBF vs LTC2801IDE |
| LTC2801IDE#PBF | Linear Technology | Check for Price | LTC2801 - 1.8V to 5.5V RS-232 Single and Dual Transceivers; Package: DFN; Pins: 12; Temperature Range: -40°C to 85°C | LTC2801IDE#PBF vs LTC2801IDE#PBF |
| LTC2801CDE#TRPBF | Linear Technology | Check for Price | LTC2801 - 1.8V to 5.5V RS-232 Single and Dual Transceivers; Package: DFN; Pins: 12; Temperature Range: 0°C to 70°C | LTC2801IDE#PBF vs LTC2801CDE#TRPBF |
| LTC2801CDE | Analog Devices Inc | Check for Price | Line Transceiver, 1 Func, 1 Driver, 1 Rcvr, PDSO12 | LTC2801IDE#PBF vs LTC2801CDE |
LTC2801IDE#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LTC2801IDE#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and crosstalk.
-
The LTC2801IDE#PBF requires a single 2.7V to 5.5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirement is to power up the device after the power supply has stabilized, and to ensure that the input voltage is within the recommended operating range.
-
The recommended input impedance for the LTC2801IDE#PBF is 1kΩ to 10kΩ. A higher input impedance can lead to increased noise sensitivity, while a lower input impedance can result in reduced gain accuracy. It's essential to match the input impedance to the specific application requirements to ensure optimal performance.
-
The LTC2801IDE#PBF requires a one-time calibration procedure to set the internal voltage reference. The recommended calibration procedure involves applying a known input voltage, measuring the output code, and adjusting the internal voltage reference accordingly. Refer to the datasheet for detailed calibration procedures.
-
The LTC2801IDE#PBF has a maximum junction temperature of 150°C. It's essential to ensure good thermal conductivity between the device and the PCB, and to avoid excessive power dissipation. High temperatures can affect the device's reliability, so it's crucial to follow proper thermal design and layout guidelines.
