LTC2802IDE#PBF Information
LTC2802IDE#PBF by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for LTC2802IDE#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK6601
|
Newark | Rs232 Transceiver, -40 To 85Deg C, Ic Type:Rs232 Transceiver, No. Of Receivers:1Receivers, No. Of Transmitters:1, Communication Mode:-, Data Rate Max:1Mbps, Supply Voltage Min:1.8V, Supply Voltage Max:5.5V, Ic Case/Package:Dfn Rohs Compliant: Yes |Analog Devices LTC2802IDE#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$3.1600 / $7.2700 | Buy Now |
|
|
Analog Devices Inc | 1.8V to 5.5V RS-232 1x & 2x Tr Package Multiple: 91 | 9100 |
|
$2.4300 / $7.3800 | Buy Now |
|
DISTI #
LTC2802IDEPBF
|
TME | IC: interface, transceiver, half duplex,RS422 / RS485, 1Mbps Min Qty: 1 | 0 |
|
$3.3900 / $5.0800 | RFQ |
|
DISTI #
LTC2802IDE#PBF
|
Richardson RFPD | INTERFACE - TRANSCEIVER RoHS: Compliant Min Qty: 182 | 0 |
|
$3.1400 / $3.4500 | Buy Now |
|
|
Chip Stock | LTC2802-1.8Vto5.5VRS-232SingleandDualTransceivers | 8100 |
|
RFQ |
US Tariff Estimator: LTC2802IDE#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC2802IDE#PBF
LTC2802IDE#PBF CAD Models
-

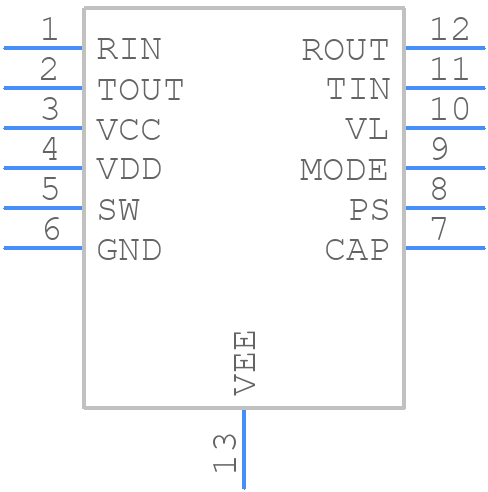

Part Symbol
-
