LTC6908IDCB-1#TRMPBF Information
LTC6908IDCB-1#TRMPBF by Analog Devices Inc is an XO.
XO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for LTC6908IDCB-1#TRMPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK4027
|
Newark | Osc, Spread Spectrum, Cmos, 50Khz-10Mhz, Frequency Nom:-, Oscillator Output Compatibility:Cmos, Frequency Stability +/-:40Ppm, Oscillator Case:Dfn, 2Mm X 3Mm, Supply Voltage Nom:5V, Product Range:Ltc6908-1 Series Rohs Compliant: Yes |Analog Devices LTC6908IDCB-1#TRMPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 355 |
|
$4.1000 / $7.6600 | Buy Now |
|
|
Analog Devices Inc | 2x Out Osc w/ SS Mod Package Multiple: 500 | 4167 |
|
$2.5400 / $7.6300 | Buy Now |
|
DISTI #
LTC6908IDCB1TRM
|
Richardson RFPD | LOGIC AND TIMING RoHS: Compliant Min Qty: 500 | 0 |
|
$3.2800 / $3.5000 | Buy Now |
US Tariff Estimator: LTC6908IDCB-1#TRMPBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC6908IDCB-1#TRMPBF
LTC6908IDCB-1#TRMPBF CAD Models
-

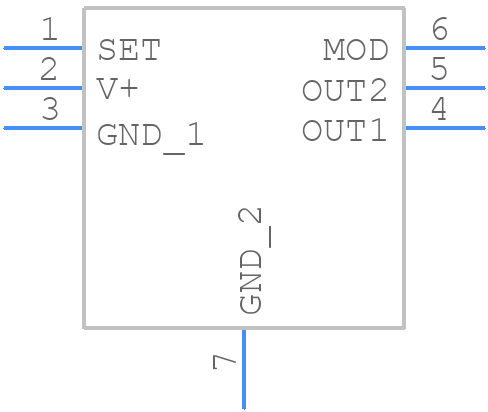

Part Symbol
-
Footprint
-

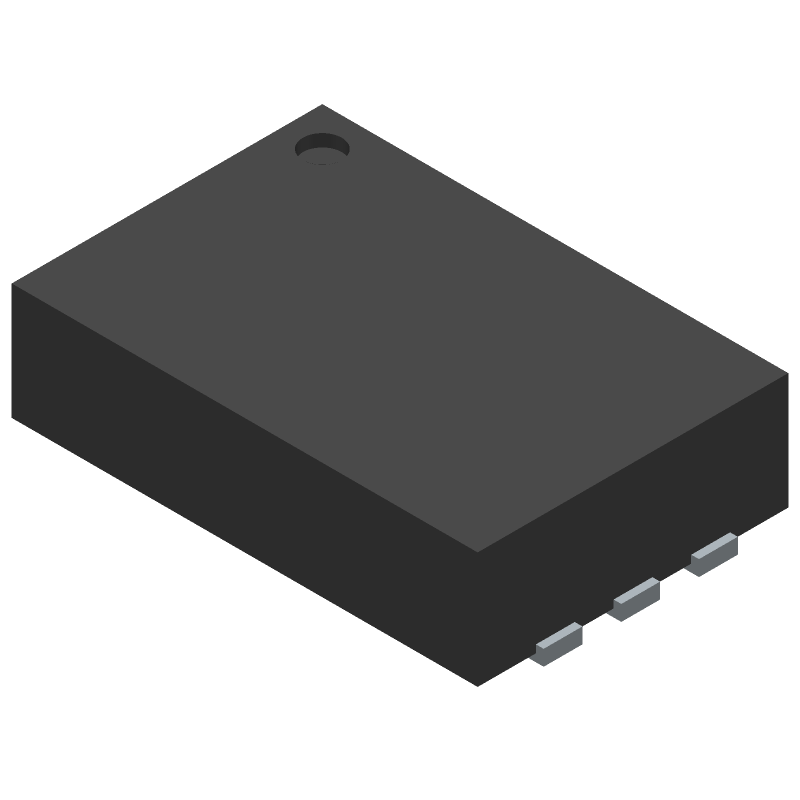

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC6908IDCB-1#TRMPBF Part Data Attributes
|
|
LTC6908IDCB-1#TRMPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC6908IDCB-1#TRMPBF
Analog Devices Inc
LTC6908IDCB-1#TRMPBF
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Plastic, Dfn-6 | |
| Pin Count | 6 | |
| Manufacturer Package Code | 05-08-1715 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Additional Feature | Tape And Reel | |
| Fall Time-Max | 9 Ns | |
| Frequency Adjustment-Mechanical | No | |
| Frequency Stability | 40% | |
| JESD-609 Code | e3 | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 6 | |
| Operating Frequency-Max | 10 Mhz | |
| Operating Frequency-Min | 0.05 Mhz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | Cmos | |
| Output Load | 5 Pf | |
| Physical Dimension | 3.0mm X 2.0mm X 0.75mm | |
| Rise Time-Max | 11 Ns | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.7 V | |
| Surface Mount | Yes | |
| Symmetry-Max | 55/45 % | |
| Terminal Finish | Matte Tin (Sn) - Annealed |
