LTM8029IY#PBF Information
LTM8029IY#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTM8029IY#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK7586
|
Newark | Dc-Dc Converter, 1.2V-18V, 0.6A, Power Supply Applications:Industrial, Dc/Dc Converter Type:Bga-35, Micro Module, Output Power Max:-, Output Voltage Min:1.2V, Output Voltage Max:18V, Output Current Max:600Ma, Height:3.42Mm Rohs Compliant: Yes |Analog Devices LTM8029IY#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$13.0100 / $14.2900 | Buy Now |
|
|
Analog Devices Inc | 36VIN, 600mA Buck µModule Con Package Multiple: 273 | 0 |
|
$8.5500 / $14.8400 | Buy Now |
|
|
Bristol Electronics | 3 |
|
RFQ | ||
|
DISTI #
LTM8029IY#PBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 273 | 0 |
|
$11.0400 / $12.1200 | Buy Now |
|
|
Chip Stock | ConvDC-DC4.5Vto36VStepDownSingle-Out1.2Vto18V0.6AuModuleAutomotive35-PinBGA | 135 |
|
RFQ |
US Tariff Estimator: LTM8029IY#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTM8029IY#PBF
LTM8029IY#PBF CAD Models
-

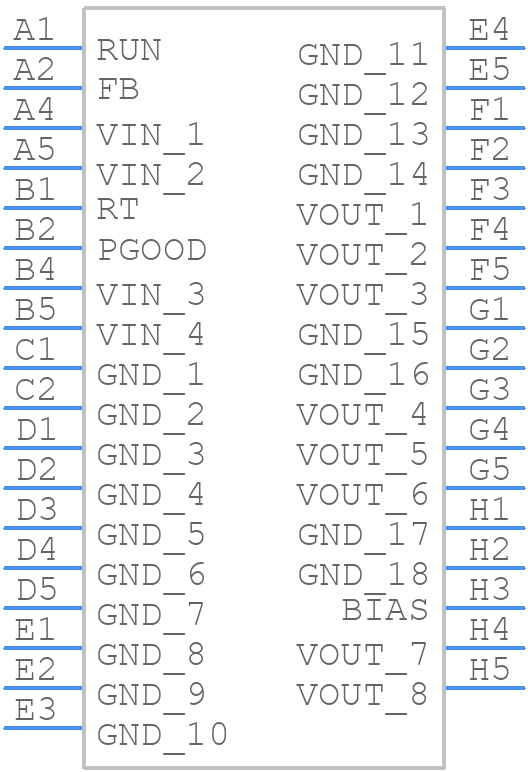

Part Symbol
-

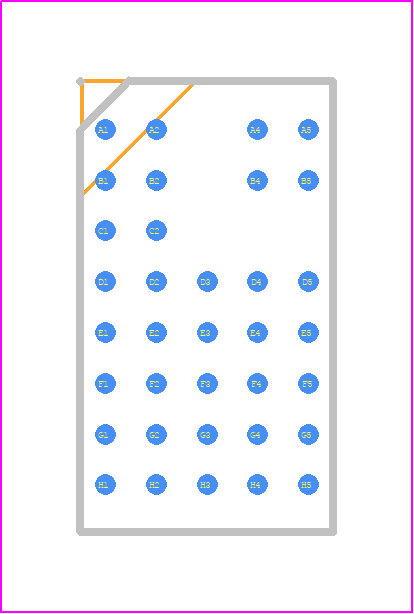

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTM8029IY#PBF Part Data Attributes
|
|
LTM8029IY#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTM8029IY#PBF
Analog Devices Inc
36VIN, 600mA Step-Down µModule (Power Module) Converter with 5µA Quiescent Current
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Bga, Bga35,5x8,50 | |
| Pin Count | 35 | |
| Manufacturer Package Code | 05-08-1878 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Additional Feature | Also Operates In Adjustable Mode From 1.2v To 18v | |
| Analog IC - Other Type | Switching Regulator | |
| Control Mode | Current-Mode | |
| Control Technique | Pulse Width Modulation | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PBGA-B35 | |
| JESD-609 Code | e1 | |
| Length | 11.25 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 35 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.6 A | |
| Output Voltage-Max | 18 V | |
| Output Voltage-Min | 1.2 V | |
| Output Voltage-Nom | 3.3 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | BGA | |
| Package Equivalence Code | BGA35,5X8,50 | |
| Package Shape | Rectangular | |
| Package Style | Grid Array | |
| Peak Reflow Temperature (Cel) | 250 | |
| Seated Height-Max | 3.62 Mm | |
| Surface Mount | Yes | |
| Switcher Configuration | Buck | |
| Switching Frequency-Max | 2200 Khz | |
| Technology | Hybrid | |
| Temperature Grade | Automotive | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | Ball | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Bottom | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6.25 Mm |
