M22-7131042 by: Harwin

Board Connector, 10 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Socket, LEAD FREE

Part Details for M22-7131042 by Harwin

Results Overview of M22-7131042 by Harwin

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Robotics and Drones

M22-7131042 Information

M22-7131042 by Harwin is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for M22-7131042

Part # Distributor Description Stock Price Buy
DISTI # 97K6226
Newark Conn, Rcpt, 10Pos, 1Row, 2Mm, Th, Connector Systems:Board-To-Board, Pitch Spacing:2Mm, No. Of Rows:1Rows, No. Of Contacts:10Contacts, Connector Mounting:Through Hole Mount, Product Range:M22, Contact Material:Phosphor Bronze Rohs Compliant: Yes |Harwin M22-7131042 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 2246
  • 1 $1.9200
  • 10 $1.7700
  • 50 $1.6300
  • 100 $1.4800
  • 250 $1.4200
  • 500 $1.3500
  • 1,000 $1.2900
  • 2,500 $1.2400
$1.2400 / $1.9200 Buy Now
DISTI # M22-7131042
TME Connector: pin strips, socket, female, PIN: 10, 2A, straight, THT Min Qty: 1 1217
  • 1 $1.6300
  • 10 $1.4200
  • 25 $1.3400
  • 60 $1.2600
  • 120 $1.2000
  • 540 $1.0700
  • 1,020 $1.0000
  • 1,500 $0.9700
  • 1,800 $0.9600
  • 2,400 $0.9300
$0.9300 / $1.6300 Buy Now
DISTI # M22-7131042
IBS Electronics CONN SOCKET STRIP F 10 POS 2MM SOLDER ST TOP ENTRY THRU-HOLE TUBE Min Qty: 60 Package Multiple: 1 540
  • 60 $1.2446
  • 300 $1.1858
  • 540 $1.1648
  • 1,020 $1.1424
  • 2,520 $1.1102
  • 5,040 $1.0850
  • 7,500 $1.0682
$1.0682 / $1.2446 Buy Now
Powell Electronics Headers & Wire Housings Min Qty: 1 28
  • 1 $3.7100
  • 10 $2.6000
  • 100 $2.4700
  • 540 $1.8200
$1.8200 / $3.7100 Buy Now
DISTI # M22-7131042
Avnet Abacus PCB Receptacle BoardtoBoard 2 mm 1 Rows 10 Contacts Through Hole Mount M22 (Alt: M22-7131042) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 13 Weeks, 0 Days Abacus - 3660
Buy Now
LCSC 2mm 1 10P 500V Tin Phosphor Bronze -40+105 4.4mm 2A Through Hole Square Hole Through HoleP2mm Headers Receptacles Female Sockets RoHS 240
  • 1 $1.7357
  • 10 $1.4557
  • 30 $1.2809
  • 100 $1.1015
  • 500 $1.0210
  • 1,000 $0.9854
$0.9854 / $1.7357 Buy Now
New Advantage Corporation Conn Socket Strip SKT 10 POS 2mm Solder ST Thru-Hole Tube RoHS: Compliant Min Qty: 1 Package Multiple: 60 840
  • 180 $1.3100
  • 840 $1.2100
$1.2100 / $1.3100 Buy Now

US Tariff Estimator: M22-7131042 by Harwin

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

M22-7131042
Harwin
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for M22-7131042

M22-7131042 CAD Models

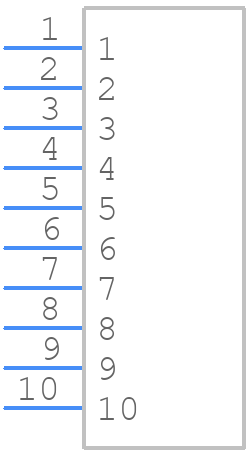

  • Part Symbol

    schematic symbol

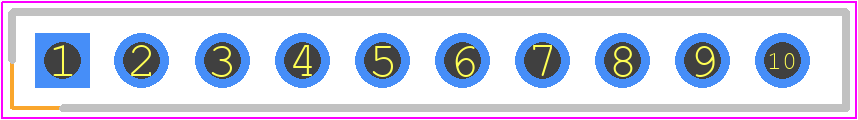

  • Footprint

    pcb footprint

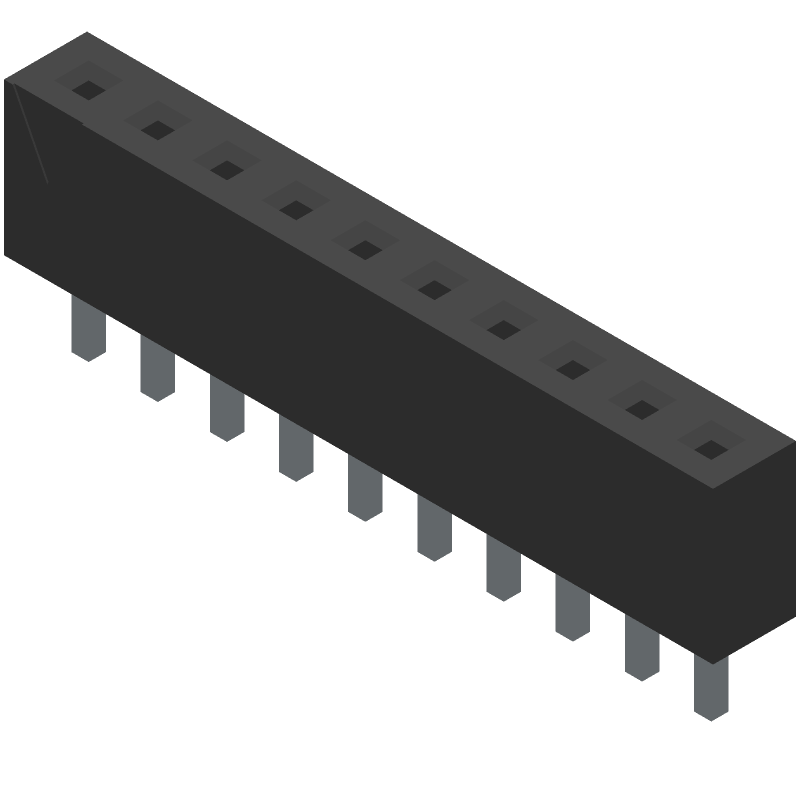

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

M22-7131042 Part Data Attributes

Parametric Data
M22-7131042 Harwin
Buy Now Datasheet
Compare Parts:
M22-7131042 Harwin Board Connector, 10 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Socket, LEAD FREE
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Lead Free
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Additional Feature Rohs Compliant
Body Breadth 0.094 Inch
Body Depth 0.173 Inch
Body Length 0.807 Inch
Body/Shell Style Socket
Connector Type Board Connector
Contact Finish Mating Not Applicable
Contact Finish Termination Tin (Sn) - With Nickel (Ni) Barrier
Contact Gender Female
Contact Material Phosphor Bronze
Contact Pattern Rectangular
Contact Resistance 20 MΩ
Contact Style Sq Pin-Skt
DIN Conformance No
Dielectric Withstanding Voltage 500vac V
Durability 1000 Cycles
Filter Feature No
IEC Conformance No
Insertion Force-Max 2.0016 N
Insulation Resistance 1000000000 Ω
Insulator Color Black
Insulator Material Liquid Crystal Polymer
JESD-609 Code e3
MIL Conformance No
Mating Contact Pitch 0.079 Inch
Mixed Contacts No
Mounting Style Straight
Mounting Type Board
Number Of Connectors One
Number Of PCB Rows 1
Number of Rows Loaded 1
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Option General Purpose
PCB Contact Pattern Rectangular
Plating Thickness 50u Inch
Rated Current (Signal) 1 A
Reference Standard Ul
Terminal Length 0.095 Inch
Terminal Pitch 2 Mm
Termination Type Solder
Total Number of Contacts 10
UL Flammability Code 94V-0
Withdrawl Force-Min .1946 N

Alternate Parts for M22-7131042

This table gives cross-reference parts and alternative options found for M22-7131042. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M22-7131042, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
