M27C256B-15F1 Information
M27C256B-15F1 by STMicroelectronics is an EPROM.
EPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for M27C256B-15F1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
16R1684
|
Newark | Eprom Ic, Memory Type:Eprom, Interface Type:Ttl/Cmos, Memory Size:256Kbit, Memor |Stmicroelectronics M27C256B-15F1 RoHS: Not Compliant Min Qty: 26 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
M27C256B-15F1
|
Avnet Americas | EPROM UV 256K-Bit 32K x 8 150ns 28-Pin CFDIP W Tube - Rail/Tube (Alt: M27C256B-15F1) COO: Philippines (the) RoHS: Compliant Min Qty: 520 Package Multiple: 260 Container: Tube | 0 |
|
RFQ | |
|
|
Bristol Electronics | 262 |
|
RFQ | ||
|
|
Bristol Electronics | 183 |
|
RFQ | ||
|
|
Bristol Electronics | 55 |
|
RFQ | ||
|
|
Bristol Electronics | 25 |
|
RFQ | ||
|
|
Chip 1 Exchange | INSTOCK | 7 |
|
RFQ | |
|
|
Chip Stock | Eprom, 256KbUvEprom, 5V, 150, FDIP28W, 2V(min.), 0.8V(typ.), 100Standby | 3120 |
|
RFQ | |
|
|
Component Electronics, Inc | DIP 28P NEW PROGARMMED W/LABEL WINDOW | 12 |
|
$4.2500 / $6.5400 | Buy Now |
|
|
Vyrian | Memory ICs | 50 |
|
RFQ |
US Tariff Estimator: M27C256B-15F1 by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for M27C256B-15F1
M27C256B-15F1 CAD Models
-

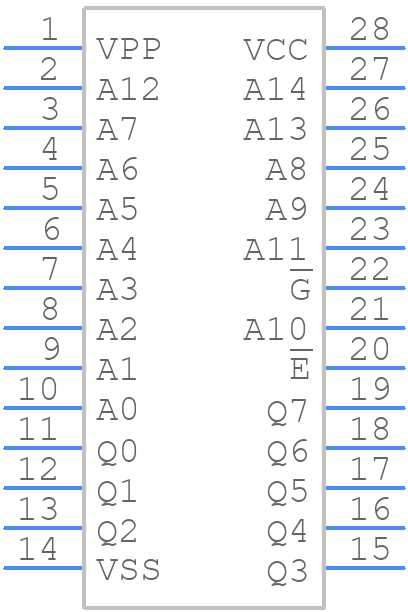

Part Symbol
-

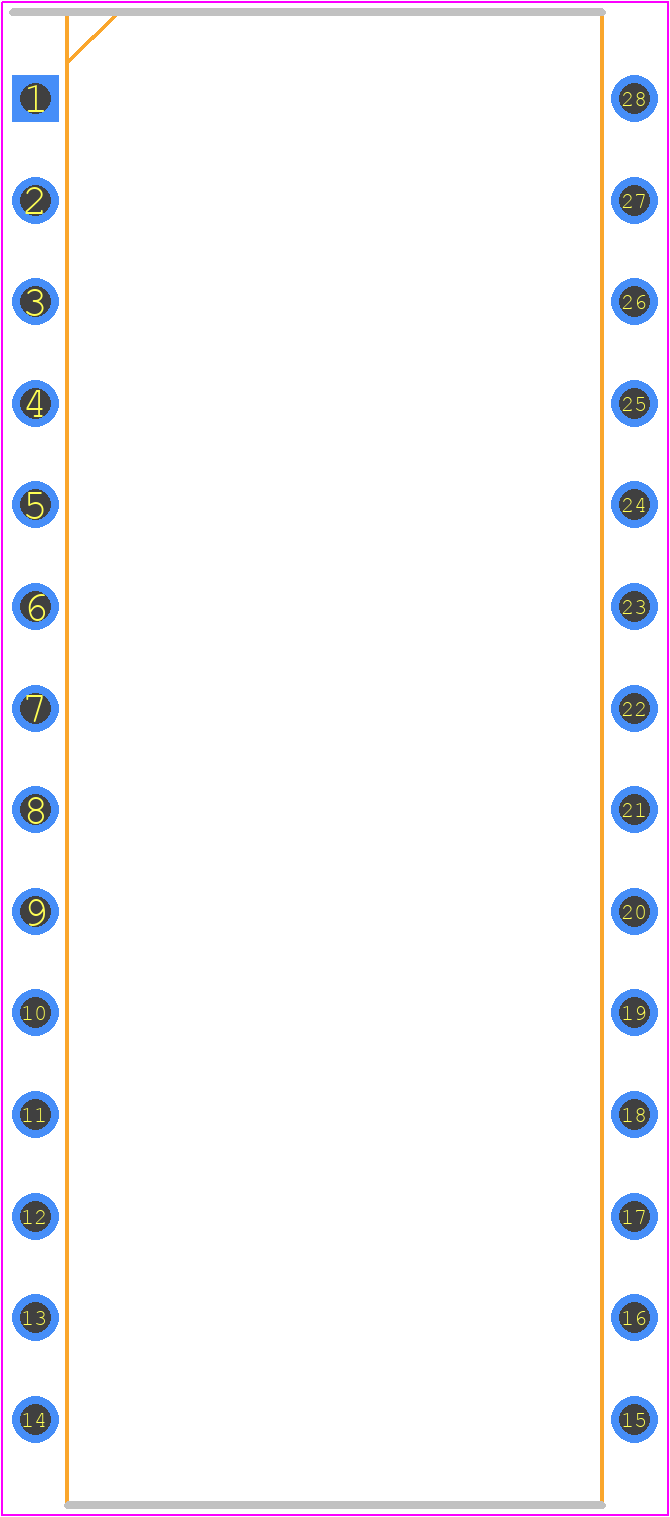

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
M27C256B-15F1 Part Data Attributes
|
|
M27C256B-15F1
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
M27C256B-15F1
STMicroelectronics
32KX8 UVPROM, 150ns, CDIP28, 0.280 INCH, LEAD FREE, CERAMIC, WINDOWED, FRIT SEALED, DIP-28
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | DIP | |
| Package Description | 0.280 INCH, LEAD FREE, CERAMIC, WINDOWED, FRIT SEALED, DIP-28 | |
| Pin Count | 28 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.61 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Access Time-Max | 150 ns | |
| I/O Type | COMMON | |
| JESD-30 Code | R-CDIP-T28 | |
| JESD-609 Code | e3 | |
| Length | 36.92 mm | |
| Memory Density | 262144 bit | |
| Memory IC Type | UVPROM | |
| Memory Width | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Number of Words | 32768 words | |
| Number of Words Code | 32000 | |
| Operating Mode | ASYNCHRONOUS | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Organization | 32KX8 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED | |
| Package Code | WDIP | |
| Package Equivalence Code | DIP28,.6 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE, WINDOW | |
| Parallel/Serial | PARALLEL | |
| Programming Voltage | 12.75 V | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.72 mm | |
| Standby Current-Max | 0.0001 A | |
| Supply Current-Max | 0.03 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 15.24 mm |
Alternate Parts for M27C256B-15F1
This table gives cross-reference parts and alternative options found for M27C256B-15F1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M27C256B-15F1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| M27C256B-25XF7X | STMicroelectronics | Check for Price | 32KX8 UVPROM, 150ns, CDIP28, FRIT SEALED, WINDOWED, CERAMIC, DIP-28 | M27C256B-15F1 vs M27C256B-25XF7X |
| M27C256B-25F6 | STMicroelectronics | Check for Price | 32KX8 UVPROM, 150ns, CDIP28, 0.280 INCH, LEAD FREE, CERAMIC, WINDOWED, FRIT SEALED, DIP-28 | M27C256B-15F1 vs M27C256B-25F6 |
| M27C256B-15XF1X | STMicroelectronics | Check for Price | 32KX8 UVPROM, 150ns, CDIP28, FRIT SEALED, WINDOWED, CERAMIC, DIP-28 | M27C256B-15F1 vs M27C256B-15XF1X |
| MBM27C256A-15Z | FUJITSU Semiconductor Limited | Check for Price | UVPROM, 32KX8, 150ns, CMOS, CDIP28, CERDIP-28 | M27C256B-15F1 vs MBM27C256A-15Z |
| AM27C256-150DCB | Spansion | Check for Price | UVPROM, 32KX8, 150ns, CMOS, CDIP28, DIP-28 | M27C256B-15F1 vs AM27C256-150DCB |
| M27C256B-20F6 | STMicroelectronics | Check for Price | 32KX8 UVPROM, 150ns, CDIP28, 0.280 INCH, LEAD FREE, CERAMIC, WINDOWED, FRIT SEALED, DIP-28 | M27C256B-15F1 vs M27C256B-20F6 |
| M27C256B-15F6 | STMicroelectronics | Check for Price | 32KX8 UVPROM, 150ns, CDIP28, 0.280 INCH, LEAD FREE, CERAMIC, WINDOWED, FRIT SEALED, DIP-28 | M27C256B-15F1 vs M27C256B-15F6 |
| M27C256B-20F1E | STMicroelectronics | Check for Price | 32KX8 UVPROM, 150ns, CDIP28, 0.280 INC, ROHS COMPLIANT, CERAMIC, WINDOWED, FRIT SEALED, DIP-28 | M27C256B-15F1 vs M27C256B-20F1E |
M27C256B-15F1 Frequently Asked Questions (FAQ)
-
The M27C256B-15F1 has a minimum of 100 erase cycles, but the actual number of cycles may be higher depending on the usage and operating conditions.
-
The M27C256B-15F1 has an internal power-on reset circuit that ensures the device is in a known state after power-up. No external reset circuitry is required, but a decoupling capacitor is recommended to ensure stable operation.
-
The recommended programming voltage for the M27C256B-15F1 is 12.75V ± 0.25V, as specified in the datasheet.
-
The M27C256B-15F1 is a 5V device, but it can be used in a 3.3V system with proper level shifting and voltage regulation. However, this may affect the device's performance and reliability.
-
To ensure data retention in the M27C256B-15F1, follow proper programming and erase procedures, and store the device in a cool, dry place away from direct sunlight and radiation.
