M40-3200345R by: Harwin

Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, LEAD FREE

Part Details for M40-3200345R by Harwin

Results Overview of M40-3200345R by Harwin

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

M40-3200345R Information

M40-3200345R by Harwin is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for M40-3200345R

Part # Distributor Description Stock Price Buy
DISTI # 50T4359
Newark Board To Board Connector Header, 6 Position, 2Row, Connector Systems:Board-To-Board, Pitch Spacing:1Mm, No. Of Rows:2Rows, No. Of Contacts:6Contacts, Contact Termination Type:Surface Mount, Product Range:M40 Series, Connector Type:- Rohs Compliant: Yes |Harwin M40-3200345R RoHS: Compliant Min Qty: 800 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
Buy Now
DISTI # M40-3200345R
TME Connector: pin strips, socket, male, Indess, 1A, PIN: 6, SMT, 1mm Min Qty: 800 0
  • 800 $0.7400
  • 2,400 $0.6700
$0.6700 / $0.7400 RFQ
DISTI # M40-3200345R
Avnet Abacus - Tape and Reel (Alt: M40-3200345R) RoHS: Compliant Min Qty: 800 Package Multiple: 800 Lead time: 13 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now

US Tariff Estimator: M40-3200345R by Harwin

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

M40-3200345R
Harwin
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for M40-3200345R

M40-3200345R CAD Models

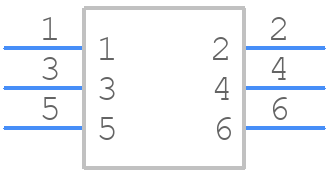

  • Part Symbol

    schematic symbol

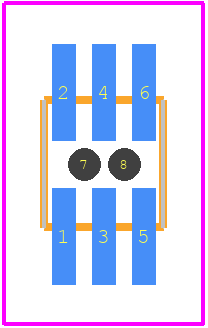

  • Footprint

    pcb footprint

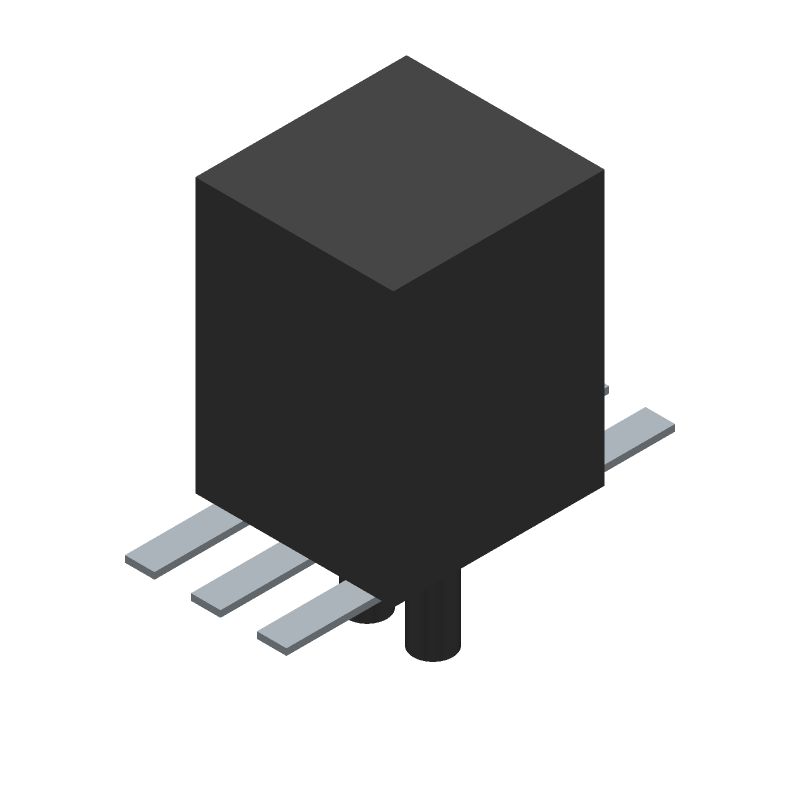

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

M40-3200345R Part Data Attributes

Parametric Data
M40-3200345R Harwin
Buy Now Datasheet
Compare Parts:
M40-3200345R Harwin Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, LEAD FREE
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer HARWIN PLC
Package Description LEAD FREE
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer Harwin
Additional Feature ROHS COMPLIANT
Board Mounting Option PEG
Body Breadth 0.126 inch
Body Length 0.118 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT APPLICABLE
Contact Finish Termination Gold (Au)
Contact Gender MALE
Contact Material BRASS
Contact Pattern RECTANGULAR
Contact Resistance 30 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 500VAC V
Durability 300 Cycles
Filter Feature NO
IEC Conformance NO
Insulation Resistance 1000000000 Ω
Insulator Color BLACK
Insulator Material GLASS FILLED POLYAMIDE
JESD-609 Code e4
MIL Conformance NO
Mating Contact Pitch 0.039 inch
Mating Contact Row Spacing 0.039 inch
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 3.6068 mm
Plating Thickness FLASH inch
Rated Current (Signal) 1 A
Reference Standard UL
Terminal Pitch 1 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 6
UL Flammability Code 94V-0

Alternate Parts for M40-3200345R

This table gives cross-reference parts and alternative options found for M40-3200345R. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M40-3200345R, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
20021221-00006C4LF Amphenol Communications Solutions $0.2406 Minitek127®, Wire to Board connector, Shrouded vertical header, Surface Mount, Double Row, 6 Positions, 1.27mm (0.500in) Pitch. M40-3200345R vs 20021221-00006C4LF
TSM-103-01-SM-DV-A-TR Samtec Inc Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, M40-3200345R vs TSM-103-01-SM-DV-A-TR
20021212-00006T8LF Amphenol FCi Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, LEAD FREE M40-3200345R vs 20021212-00006T8LF
137062006 W+P Products GmbH Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle M40-3200345R vs 137062006
20021121-00006D1LF Amphenol FCi Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, LEAD FREE M40-3200345R vs 20021121-00006D1LF
TSM-103-01-L-DV-LC-FR Samtec Inc Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, M40-3200345R vs TSM-103-01-L-DV-LC-FR
878320606 Molex Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, M40-3200345R vs 878320606
M20-078050V0345 Harwin Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, LEAD FREE M40-3200345R vs M20-078050V0345
98424-F52-06KLF Amphenol Communications Solutions Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Cream Insulator, Plug, ROHS COMPLIANT M40-3200345R vs 98424-F52-06KLF
609-0657 Thomas & Betts Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Guide Slot, Blue Insulator, Receptacle M40-3200345R vs 609-0657
equivalents icon

M40-3200345R Related Parts

M40-3200345R Frequently Asked Questions (FAQ)

  • The recommended torque for the screw locks is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.

  • Yes, the M40-3200345R connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.

  • Yes, the M40-3200345R connector is designed to operate in harsh environments, with a temperature range of -40°C to 125°C and humidity resistance of 95% RH at 40°C.

  • The M40-3200345R connector has a mating cycle life of 500 cycles, as specified in the Harwin datasheet.

  • Yes, the M40-3200345R connector can accommodate wire sizes from 20 AWG to 28 AWG, but the recommended wire size is 24 AWG for optimal performance.
