M80-8530842 Information
M80-8530842 by Harwin is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for M80-8530842
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1654516
|
Farnell | CONN, PLUG DATAMATE PC TAIL COO: GB RoHS: Compliant Min Qty: 1 Lead time: 12 Weeks, 1 Days Container: Each | 23 |
|
$2.7032 / $4.6944 | Buy Now |
|
DISTI #
M80-8530842
|
TME | Connector: wire-wire/PCB, socket, male, PIN: 8, Datamate L-Tek, 3A Min Qty: 1 | 202 |
|
$2.5700 / $3.9300 | Buy Now |
|
DISTI #
M80-8530842
|
IBS Electronics | CONN DATAMATE HEADER 8 POS 2MM SOLDER ST THROUGH HOLE Min Qty: 10 Package Multiple: 1 | 189 |
|
$3.3460 / $4.9420 | Buy Now |
|
|
Powell Electronics | Datamate L-Tek DIL Male Vertical 3mm Thr Min Qty: 1 | 105 |
|
$3.7500 | Buy Now |
|
DISTI #
M80-8530842
|
Avnet Abacus | Conn Datamate Header 8 POS 2mm Solder ST Through Hole (Alt: M80-8530842) RoHS: Compliant Min Qty: 21 Package Multiple: 21 Lead time: 12 Weeks, 0 Days | Abacus - 8946 |
|
Buy Now | |
|
DISTI #
M80-8530842
|
Avnet Asia | Conn Datamate Header 8 POS 2mm Solder ST Through Hole (Alt: M80-8530842) RoHS: Compliant Min Qty: 189 Package Multiple: 21 Lead time: 13 Weeks, 0 Days | 0 |
|
RFQ | |
|
|
New Advantage Corporation | Conn Datamate M 8 POS 2mm Solder ST Thru-Hole Tube RoHS: Compliant Min Qty: 1 Package Multiple: 21 | 10521 |
|
$3.3700 / $3.6600 | Buy Now |
US Tariff Estimator: M80-8530842 by Harwin
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for M80-8530842
M80-8530842 CAD Models
-

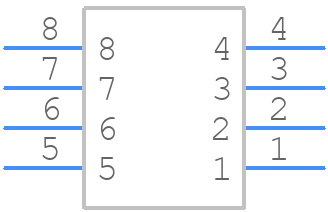

Part Symbol
-

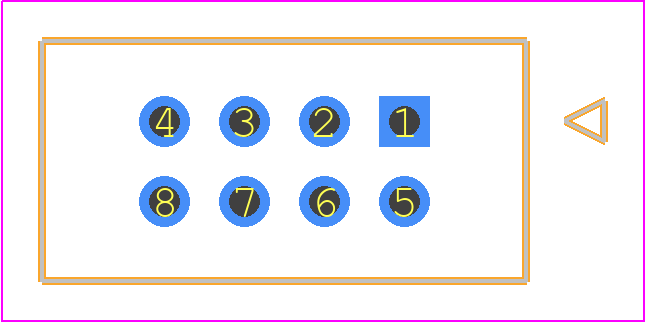

Footprint
-
