M83513/03-F03N by:
Cinch Connectivity Solutions

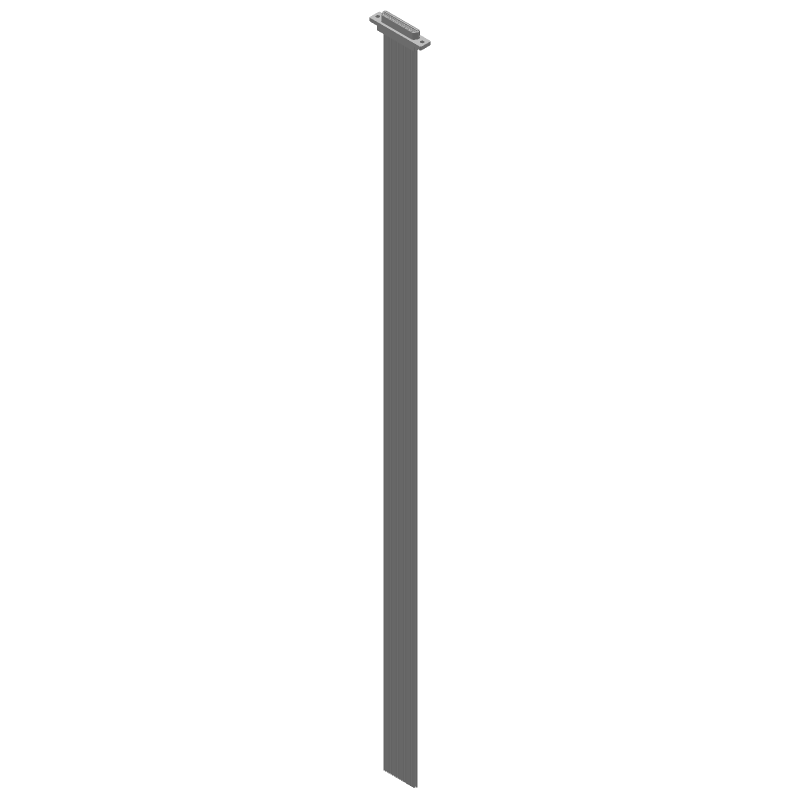

D Microminiature Connector, 37 Contact(s), Male, 0.05 inch Pitch, Wire Terminal, Hole .087-.098, Plug,

Part Details for M83513/03-F03N by Cinch Connectivity Solutions

Results Overview of M83513/03-F03N by Cinch Connectivity Solutions

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

M83513/03-F03N Information

M83513/03-F03N by Cinch Connectivity Solutions is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for M83513/03-F03N

Part # Distributor Description Stock Price Buy
DISTI # 53AJ5982
Newark Cable Assy, Micro D Plug-Free End, 18", Connector To Connector:Micro-D Plug To Free End, No. Of Positions:37Positions, Cable Length - Imperial:18", Cable Length - Metric:457Mm, Jacket Color:Multi-Colored Rohs Compliant: Yes |Cinch Connectivity Solutions M83513/03-F03N RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 22
  • 1 $133.5700
  • 10 $123.3000
  • 25 $123.3000
  • 50 $123.3000
  • 100 $123.3000
$123.3000 / $133.5700 Buy Now
DISTI # CIMM83513/03-F03N
Interstate Connecting Components MICRO-D CONNECTOR 0
  • 1 $154.3438
  • 5 $148.8314
  • 10 $138.9094
  • 25 $130.2276
  • 50 $120.7907
$120.7907 / $154.3438 Buy Now
DISTI # M83513/03-F03N
PEI Genesis MICRO 37C PIN /11 10CR 18" NI 0
Buy Now

US Tariff Estimator: M83513/03-F03N by Cinch Connectivity Solutions

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

M83513/03-F03N
Cinch Connectivity Solutions
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for M83513/03-F03N

M83513/03-F03N Part Data Attributes

Parametric Data
M83513/03-F03N Cinch Connectivity Solutions
Buy Now Datasheet
Compare Parts:
M83513/03-F03N Cinch Connectivity Solutions D Microminiature Connector, 37 Contact(s), Male, 0.05 inch Pitch, Wire Terminal, Hole .087-.098, Plug,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer CINCH CONNECTIVITY SOLUTIONS
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.30
Samacsys Manufacturer Cinch Connectivity Solutions
Additional Feature STANDARD: MIL-DTL-83513
Body Breadth 0.298 inch
Body Depth 0.223 inch
Body Length 1.475 inch
Body/Shell Style PLUG
Connector Type D MICROMINIATURE CONNECTOR
Contact Arrangement S37P0
Contact Finish Mating GOLD (50)
Contact Finish Termination GOLD
Contact Gender MALE
Contact Material COPPER ALLOY
Contact Pattern STAGGERED
Contact Resistance 8 mΩ
Contact Style RND PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 600VAC V
Durability 500 Cycles
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insertion Force-Max 2.78 N
Insulation Resistance 5000000000 Ω
Insulator Material GLASS FILLED POLYETHYLENE
JESD-609 Code e4
MIL Conformance YES
Mating Contact Pitch 0.05 inch
Mating Contact Row Spacing 0.043 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 HOLE 0.096
Mounting Type CABLE AND PANEL
Number Of Connectors ONE
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
Plating Thickness 50u inch
Rated Current (Signal) 3 A
Shell Finish NICKEL
Shell Material METAL
Shell Size F
Termination Type CRIMP
Total Number of Contacts 37
Wire Size-Max 24 AWG
Wire Size-Min 26 AWG
Withdrawl Force-Min 0.139 N

Alternate Parts for M83513/03-F03N

This table gives cross-reference parts and alternative options found for M83513/03-F03N. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M83513/03-F03N, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
M83513/03-F03N Glenair Inc Check for Price D Microminiature Connector, 37 Contact(s), Male, Crimp Terminal, Plug, M83513/03-F03N vs M83513/03-F03N
M83513/03-F03K Amphenol Corporation Check for Price D Microminiature Connector, 37 Contact(s), Male, Crimp Terminal, Plug, M83513/03-F03N vs M83513/03-F03K
M83513/03-F03K Glenair Inc Check for Price D Microminiature Connector, 37 Contact(s), Male, Crimp Terminal, Plug, M83513/03-F03N vs M83513/03-F03K
M83513/03-F03A Glenair Inc Check for Price D Microminiature Connector M83513/03-F03N vs M83513/03-F03A
M83513/03-F03N TE Connectivity Check for Price 37 CONTACT(S), MALE, D MICROMINIATURE CONNECTOR, CRIMP, PLUG M83513/03-F03N vs M83513/03-F03N
M83513/03F03N Bel Fuse Check for Price D Type Connector, 37 Contact(s), Male, 0.05 inch Pitch, Wire Terminal, Hole .087-.098, Plug M83513/03-F03N vs M83513/03F03N
M83513/03-F03P AirBorn a molex company Check for Price D Microminiature Connector, 37 Contact(s), Male, Crimp Terminal, Plug, M83513/03-F03N vs M83513/03-F03P
M83513/03-F03N AirBorn a molex company Check for Price D Microminiature Connector, 37 Contact(s), Male, Crimp Terminal, Plug, M83513/03-F03N vs M83513/03-F03N
M83513/03-F03C AirBorn a molex company Check for Price D Microminiature Connector, 37 Contact(s), Male, 0.05 inch Pitch, Crimp Terminal, Hole .094, Plug, M83513/03-F03N vs M83513/03-F03C
M83513/03-F03C Cinch Connectivity Solutions Check for Price D Microminiature Connector, 37 Contact(s), Male, 0.05 inch Pitch, Crimp Terminal, Hole .087-.098, Plug, M83513/03-F03N vs M83513/03-F03C
Part Number Manufacturer Composite Price Description Compare
M83513/03-F17N Amphenol Corporation Check for Price D Microminiature Connector, 37 Contact(s), Male, Crimp Terminal, Plug, M83513/03-F03N vs M83513/03-F17N
M83513/03-F16P Defense Logistics Agency Check for Price D Microminiature Connector, 37 Contact(s), Male, 0.05 inch Pitch, Crimp Terminal, Hole .094, Plug, M83513/03-F03N vs M83513/03-F16P
M83513/03-F05C Defense Logistics Agency Check for Price D Microminiature Connector, 37 Contact(s), Male, 0.05 inch Pitch, Crimp Terminal, Hole .094, Plug, M83513/03-F03N vs M83513/03-F05C
M83513/03-F13P Defense Logistics Agency Check for Price D Microminiature Connector, 37 Contact(s), Male, 0.05 inch Pitch, Crimp Terminal, Hole .094, Plug, M83513/03-F03N vs M83513/03-F13P
M83513/03-F13C Defense Logistics Agency Check for Price D Microminiature Connector, 37 Contact(s), Male, 0.05 inch Pitch, Crimp Terminal, Hole .094, Plug, M83513/03-F03N vs M83513/03-F13C
M83513/03-F16N AirBorn a molex company Check for Price D Microminiature Connector, 37 Contact(s), Male, 0.05 inch Pitch, Crimp Terminal, Hole .094, Plug, M83513/03-F03N vs M83513/03-F16N
M83513/03-F01N Defense Logistics Agency Check for Price D Microminiature Connector, 37 Contact(s), Male, 0.05 inch Pitch, Crimp Terminal, Hole .094, Plug, M83513/03-F03N vs M83513/03-F01N
M83513/03-F19C Defense Logistics Agency Check for Price D Microminiature Connector, 37 Contact(s), Male, 0.05 inch Pitch, Crimp Terminal, Hole .094, Plug, M83513/03-F03N vs M83513/03-F19C
M83513/03-F22C Amphenol Corporation Check for Price D Microminiature Connector, 37 Contact(s), Male, Crimp Terminal, Plug, M83513/03-F03N vs M83513/03-F22C
M83513/03-F22C Defense Logistics Agency Check for Price D Microminiature Connector, 37 Contact(s), Male, 0.05 inch Pitch, Crimp Terminal, Hole .094, Plug, M83513/03-F03N vs M83513/03-F22C
equivalents icon

M83513/03-F03N Related Parts

M83513/03-F03N Frequently Asked Questions (FAQ)

  • The operating temperature range of M83513/03-F03N is -55°C to 125°C.

  • Yes, M83513/03-F03N is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.

  • The typical insertion loss of M83513/03-F03N is less than 1.5 dB at 3 GHz.

  • Yes, M83513/03-F03N is designed to withstand high-vibration environments, making it suitable for use in aerospace and defense applications.

  • Yes, M83513/03-F03N is designed to meet the requirements of MIL-STD-202, a US military standard for electronic components.
