Part Details for MAX232CSE+ by Analog Devices Inc
Results Overview of MAX232CSE+ by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (6 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Automotive
Robotics and Drones
MAX232CSE+ Information
MAX232CSE+ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MAX232CSE+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
81Y9312
|
Newark | Rs232 Transceiver, 120Kbps, Nsoic-16, Ic Type:Rs232 Transceiver, No. Of Receivers:2Receivers, No. Of Transmitters:2, Communication Mode:-, Data Rate Max:120Kbps, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, No. Of Pins:16Pins Rohs Compliant: Yes |Analog Devices MAX232CSE+ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 53 |
|
$3.9200 / $6.5400 | Buy Now |
|
|
Analog Devices Inc | +5V-Powered, Multichannel RS-2 Package Multiple: 1 | 17299 |
|
$3.7200 / $6.5400 | Buy Now |
|
DISTI #
MAX232CSE+
|
TME | IC: interface, transceiver, full duplex,RS232, 120kbps, SO16, 5VDC Min Qty: 1 | 139 |
|
$1.4400 / $2.5600 | Buy Now |
US Tariff Estimator: MAX232CSE+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX232CSE+
MAX232CSE+ CAD Models
-

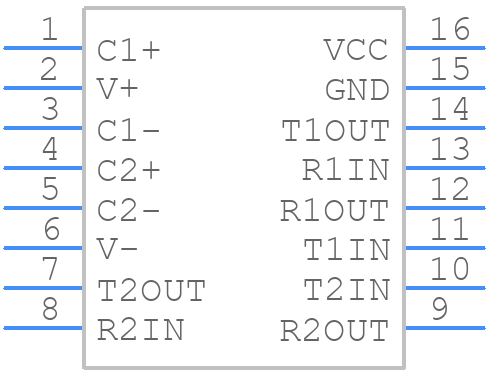

Part Symbol
-
Footprint
-

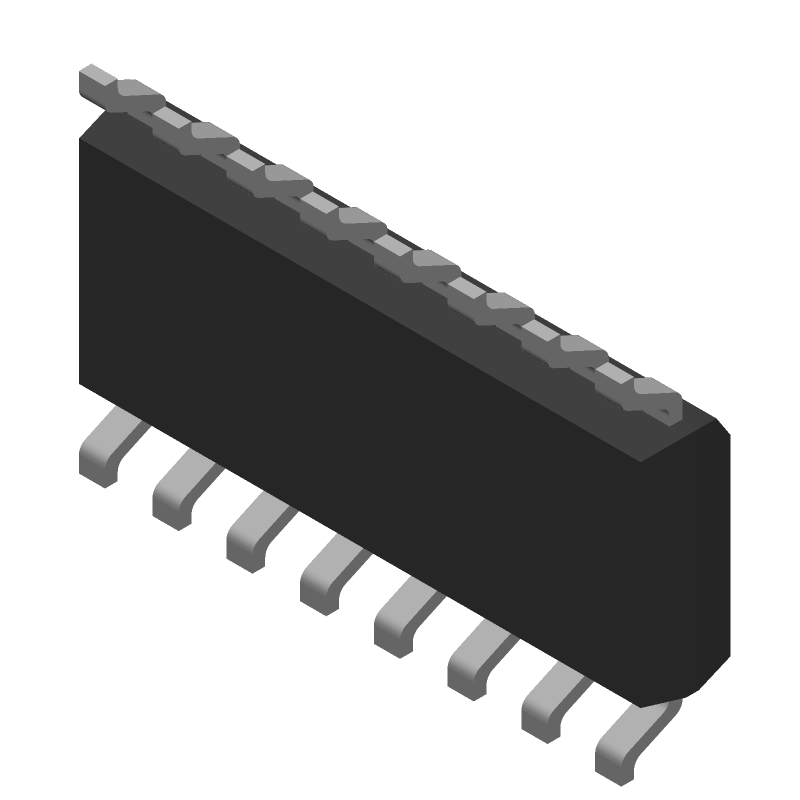

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MAX232CSE+ Part Data Attributes
|
|
MAX232CSE+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX232CSE+
Analog Devices Inc
+5V-Powered, Multichannel RS-232 Drivers/Receivers, 16-SOIC_N-150_MIL, 16 Pins, 0 to 70C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 16-SOIC_N-150_MIL | |
| Package Description | SOP, SOP16,.25 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 16-SOIC_N-150_MIL | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 1998-06-25 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | EXTERNAL CHARGE PUMP | |
| Differential Output | NO | |
| Driver Number of Bits | 2 | |
| High Level Input Current-Max | 0.0002 A | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232-E; TIA-232-E; V.28; V.24 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 9.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Out Swing-Min | 10 V | |
| Output Characteristics | TOTEM-POLE | |
| Output Low Current-Max | 0.0032 A | |
| Output Polarity | INVERTED | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 10000 ns | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 10 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 10000 ns | |
| Width | 3.9 mm |
Alternate Parts for MAX232CSE+
This table gives cross-reference parts and alternative options found for MAX232CSE+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX232CSE+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX232CSE+T | Analog Devices Inc | $1.5283 | +5V-Powered, Multichannel RS-232 Drivers/Receivers, 16-SOIC_N-150_MIL, 16 Pins, 0 to 70C | MAX232CSE+ vs MAX232CSE+T |
| MAX232CSE+T | Maxim Integrated Products | $4.4236 | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO16, SO-16 | MAX232CSE+ vs MAX232CSE+T |
| MAX232CSE-T | Maxim Integrated Products | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO16, SOP-16 | MAX232CSE+ vs MAX232CSE-T |
| MAX232CSE | Rochester Electronics LLC | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO16, SOP-16 | MAX232CSE+ vs MAX232CSE |
| HIN232ACBNZ | Intersil Corporation | Check for Price | High Speed +5V Powered RS-232 Transmitters/Receivers; PDIP16, SOIC16; Temp Range: 0° to 70° | MAX232CSE+ vs HIN232ACBNZ |
| HIN232ACBNZ-T | Intersil Corporation | Check for Price | High Speed +5V Powered RS-232 Transmitters/Receivers; PDIP16, SOIC16; Temp Range: 0° to 70° | MAX232CSE+ vs HIN232ACBNZ-T |
MAX232CSE+ Frequently Asked Questions (FAQ)
-
The MAX232CSE+ can support data rates up to 120 kbps.
-
Yes, the MAX232CSE+ can be used in a multi-point application, but it is not recommended as it is designed for point-to-point communication.
-
To ensure proper termination, a 1 kΩ to 10 kΩ resistor should be connected between the TOUT and GND pins, and a 1 μF capacitor should be connected between the VIN and GND pins.
-
The recommended power-on sequence is to apply power to the VCC pin first, followed by the VIN pin.
-
Yes, the MAX232CSE+ has built-in noise immunity and can operate in noisy environments, but it's still recommended to use proper shielding and grounding techniques to minimize noise.
