MBRD360G Information
MBRD360G by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MBRD360G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70339914
|
RS | ON SEMI MBRD360G, SMT SCHOTTKY DIODE, 60V 3A, 3-PIN D-PAK Min Qty: 10 Package Multiple: 1 Container: Bulk | 0 |
|
$0.4260 / $0.4770 | RFQ |
|
|
Bristol Electronics | 80 |
|
RFQ | ||
|
|
Rochester Electronics | Schottky Barrier Rectifier, 60 V, 3.0 A RoHS: Compliant Status: Obsolete Min Qty: 1 | 48 |
|
$0.2924 / $0.4716 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
Chip Stock | ONSemiMBRD360G,SMTSchottkyDiode,60V3A,3-PinD-PAK|ONSemiconductorMBRD360G | 132 |
|
RFQ | |
|
|
Vyrian | Diodes | 260 |
|
RFQ | |
|
|
Win Source Electronics | DIODE SCHOTTKY 60V 3A DPAK | 7 |
|
$0.9653 / $1.4478 | Buy Now |
US Tariff Estimator: MBRD360G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MBRD360G
MBRD360G CAD Models
-

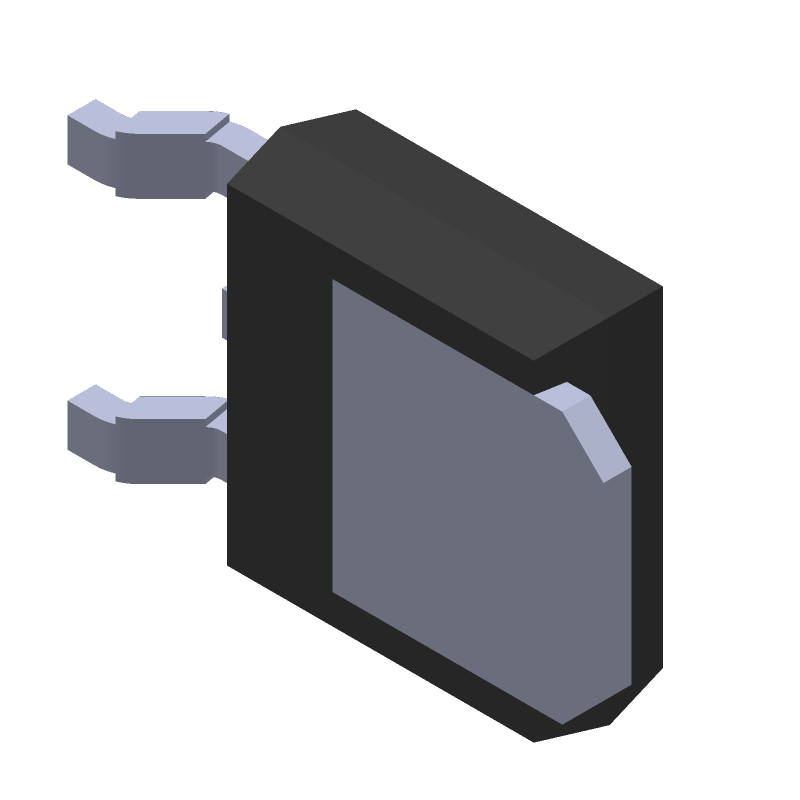

3D Model
