MC100EP210SMNG Information
MC100EP210SMNG by onsemi is a Clock Driver.
Clock Drivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC100EP210SMNG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
02M9762
|
Newark | Clock Driver, 1Ghz, Qfn-32, Clock Ic Type:Clock Driver, Frequency:1Ghz, No. Of Outputs:5Outputs, Supply Voltage Min:2.375V, Supply Voltage Max:2.625V, Clock Ic Case Style:Qfn, No. Of Pins:32Pins, Ic Output Type:Lvds, Product Range:- Rohs Compliant: Yes |Onsemi MC100EP210SMNG RoHS: Compliant Min Qty: 74 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$13.0200 / $16.2700 | Buy Now |
|
DISTI #
MC100EP210SMNG
|
Avnet Americas | - Rail/Tube (Alt: MC100EP210SMNG) COO: Thailand RoHS: Compliant Min Qty: 74 Package Multiple: 1 Lead time: 23 Weeks, 0 Days Container: Tube | 9694 Factory Stock |
|
RFQ | |
|
DISTI #
70466198
|
RS | MC100EP210SMNG, BBGECL DUAL DIFF CLK DRV Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$16.8880 | RFQ |
|
|
Rochester Electronics | Low Skew Clock Driver, 100E Series, 5 True Output(s), 0 Inverted Output(s), ECL RoHS: Compliant Status: Active Min Qty: 1 | 1567 |
|
$10.0700 / $12.5900 | Buy Now |
|
DISTI #
MC100EP210SMNG
|
IBS Electronics | MC100EP210S SERIES 2.5 V 1 GHZ 1: 5 DUAL DIFFERENTIAL LVDS CLOCK DRIVER - QFN-32 Min Qty: 74 Package Multiple: 1 | 0 |
|
$16.3520 / $16.6320 | Buy Now |
|
DISTI #
MC100EP210SMNG
|
Avnet Silica | (Alt: MC100EP210SMNG) RoHS: Compliant Min Qty: 74 Package Multiple: 74 Lead time: 24 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MC100EP210SMNG
|
EBV Elektronik | (Alt: MC100EP210SMNG) RoHS: Compliant Min Qty: 74 Package Multiple: 74 Lead time: 25 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Flip Electronics | Stock, Ship Today | 11470 |
|
RFQ |
US Tariff Estimator: MC100EP210SMNG by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MC100EP210SMNG
MC100EP210SMNG CAD Models
-

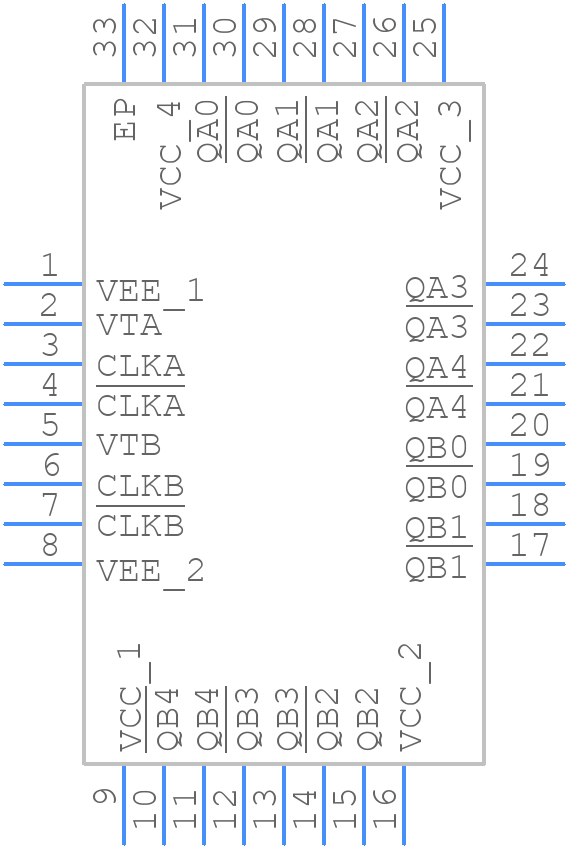

Part Symbol
-
