MC14066BDTR2G by: onsemi

Quad Analog Switch/Quad Multiplexer, TSSOP-14, 2500-REEL

Part Details for MC14066BDTR2G by onsemi

Results Overview of MC14066BDTR2G by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Communication and Networking Automotive

MC14066BDTR2G Information

MC14066BDTR2G by onsemi is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.

A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.

Price & Stock for MC14066BDTR2G

Part # Distributor Description Stock Price Buy
DISTI # 79AH4017
Newark Log Cmos As Mltiplxr Quad Rohs Compliant: Yes |Onsemi MC14066BDTR2G RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.1760
$0.1760 Buy Now
DISTI # 42K0527
Newark Analog Switch, Quad, Spst, Tssop-14, Ic Function:Analogue Switch, Analogue Multiplexer, Power Supply Type:Single Supply, Supply Voltage Range:3V To 18V, Ic Case/Package:Tssop, No. Of Pins:14Pins, No. Of Channels:4Channels Rohs Compliant: Yes |Onsemi MC14066BDTR2G RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1,000 $0.3450
$0.3450 Buy Now
DISTI # MC14066BDTR2G
Avnet Americas Quad Analog Switch/Quad Multiplexer. ONSSPCLGC, - Tape and Reel (Alt: MC14066BDTR2G) COO: Czechia RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.1675
  • 10,000 $0.1666
  • 20,000 $0.1658
  • 40,000 $0.1649
  • 80,000 $0.1641
$0.1641 / $0.1675 Buy Now
DISTI # 70466265
RS MC14066BDTR2G, MULTIPLEXER QUAD SPST, 3 - 18 V DC, 14-PIN TSSOP Min Qty: 25 Package Multiple: 1 Container: Bulk 0
  • 25 $0.5400
  • 250 $0.5100
  • 1,250 $0.4900
  • 2,500 $0.4600
$0.4600 / $0.5400 RFQ
Bristol Electronics   Min Qty: 9 7500
  • 9 $0.5625
  • 37 $0.3656
  • 138 $0.2109
  • 476 $0.1800
  • 1,029 $0.1575
  • 2,446 $0.1462
$0.1462 / $0.5625 Buy Now
DISTI # MC14066BDTR2G
TME IC: analog switch, multiplexer, Ch: 4, IN: 4, CMOS, SMD, TSSOP14 Min Qty: 2500 0
  • 2,500 $0.1910
$0.1910 RFQ
DISTI # SMC-MC14066BDTR2G
Sensible Micro Corporation Ic, Multiplexer, Quad, 1X1, 14-Tssop RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1415 Container: Tape & Reel 103
RFQ
DISTI # MC14066BDTR2G
Avnet Asia Quad Analog Switch/Quad Multiplexer. ONSSPCLGC, (Alt: MC14066BDTR2G) RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days 0
RFQ
DISTI # MC14066BDTR2G
Avnet Silica Quad Analog SwitchQuad Multiplexer ONSSPCLGC (Alt: MC14066BDTR2G) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Silica - 0
Buy Now
DISTI # MC14066BDTR2G
EBV Elektronik Quad Analog SwitchQuad Multiplexer ONSSPCLGC (Alt: MC14066BDTR2G) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now
Win Source Electronics IC MULTIPLEXER QUAD 1X1 14TSSOP 95300
  • 380 $0.1328
  • 805 $0.1243
  • 1,250 $0.1200
  • 1,800 $0.1114
  • 2,335 $0.1071
  • 2,920 $0.1029
$0.1029 / $0.1328 Buy Now

US Tariff Estimator: MC14066BDTR2G by onsemi

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

MC14066BDTR2G
onsemi
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for MC14066BDTR2G

MC14066BDTR2G CAD Models

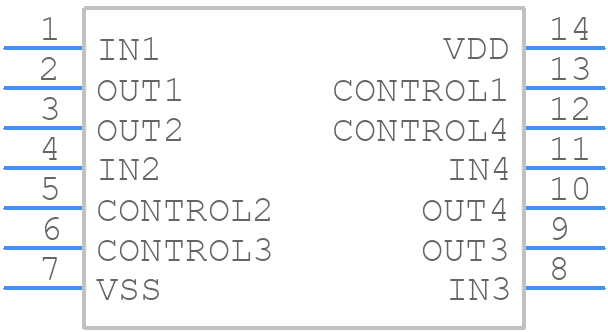

  • Part Symbol

    schematic symbol

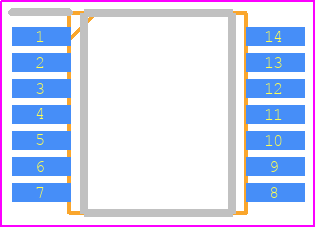

  • Footprint

    pcb footprint

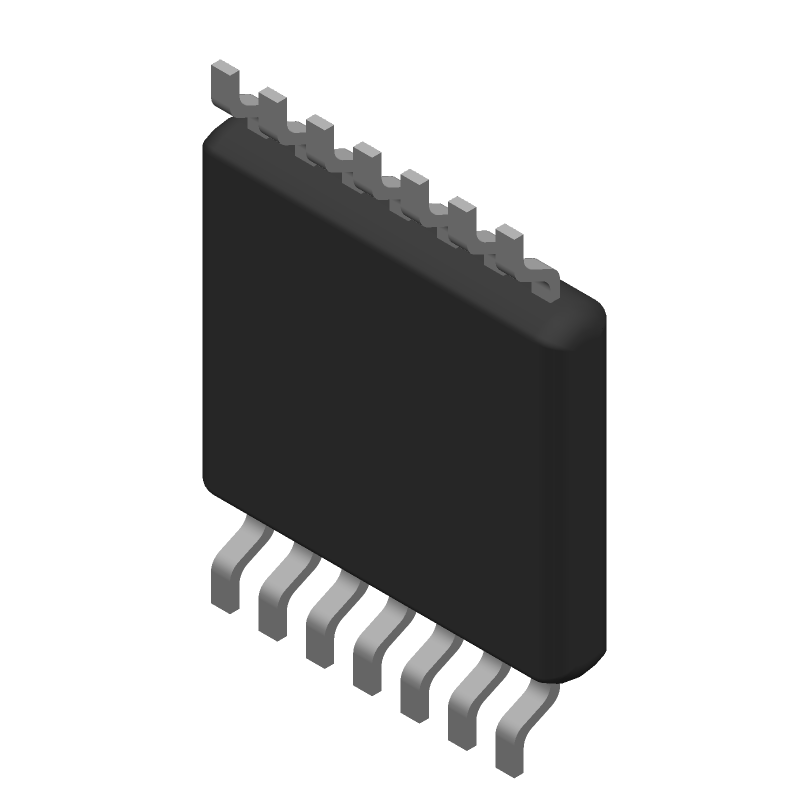

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MC14066BDTR2G Part Data Attributes

Parametric Data
MC14066BDTR2G onsemi
Buy Now Datasheet
Compare Parts:
MC14066BDTR2G onsemi Quad Analog Switch/Quad Multiplexer, TSSOP-14, 2500-REEL
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ONSEMI
Part Package Code TSSOP-14
Package Description TSSOP, TSSOP14,.25
Pin Count 14
Manufacturer Package Code 948G
Reach Compliance Code Compliant
HTS Code 8542.39.00.01
Factory Lead Time 9 Weeks
Samacsys Manufacturer onsemi
Analog IC - Other Type SPST
JESD-30 Code R-PDSO-G14
JESD-609 Code e3
Length 5 mm
Moisture Sensitivity Level 1
Normal Position NO
Number of Channels 1
Number of Functions 4
Number of Terminals 14
Off-state Isolation-Nom 50 dB
On-state Resistance Match-Nom 25 Ω
On-state Resistance-Max (Ron) 1050 Ω
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Output SEPARATE OUTPUT
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Supply Voltage-Max (Vsup) 18 V
Supply Voltage-Min (Vsup) 3 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Switch-off Time-Max 80 ns
Switch-on Time-Max 120 ns
Technology CMOS
Temperature Grade MILITARY
Terminal Finish Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 4.4 mm

Alternate Parts for MC14066BDTR2G

This table gives cross-reference parts and alternative options found for MC14066BDTR2G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC14066BDTR2G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MC14066BDTEL Rochester Electronics LLC Check for Price SPST, 4 Func, 1 Channel, CMOS, PDSO14, TSSOP-14 MC14066BDTR2G vs MC14066BDTEL
Part Number Manufacturer Composite Price Description Compare
MC74HC4053ADWR2 onsemi Check for Price TRIPLE 2-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, SOIC-16 MC14066BDTR2G vs MC74HC4053ADWR2
CD4052BPWRG3 Texas Instruments Check for Price 20-V, 4:1, 2-channel general-purpose multiplexer 16-TSSOP -55 to 125 MC14066BDTR2G vs CD4052BPWRG3
HD74HC4066FP Renesas Electronics Corporation Check for Price QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14, FP-14DA MC14066BDTR2G vs HD74HC4066FP
74HC4066NB NXP Semiconductors Check for Price IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP14, Multiplexer or Switch MC14066BDTR2G vs 74HC4066NB
MAX4066ESD+T Analog Devices Inc Check for Price Low-Cost, Low-Voltage, Quad, SPST, CMOS Analog Switch, 14-SOIC_N-150_MIL, 14 Pins, -40 to 85C MC14066BDTR2G vs MAX4066ESD+T
ISL84053IAZ-T Renesas Electronics Corporation Check for Price Low Voltage, Single and Dual Supply, 8-to-1 Multiplexer, Dual 4-to-1 Multiplexer and a Triple SPDT Analog Switch, QSOP, /Reel MC14066BDTR2G vs ISL84053IAZ-T
MAX4051EEE+T Analog Devices Inc Check for Price Low-Voltage, CMOS Analog Multiplexers/Switches, 16-QSOP-150_MIL, 16 Pins, -40 to 85C MC14066BDTR2G vs MAX4051EEE+T
MC14051BCPG Rochester Electronics LLC Check for Price Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDIP16, ROHS COMPLIANT, PLASTIC, DIP-16 MC14066BDTR2G vs MC14051BCPG
CD4051BD3 Intersil Corporation Check for Price IC,ANALOG MUX,SINGLE,8-CHANNEL,CMOS,DIP,16PIN,CERAMIC MC14066BDTR2G vs CD4051BD3
5962-8855601EA Defense Logistics Agency Check for Price Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16, DIP-16 MC14066BDTR2G vs 5962-8855601EA
equivalents icon

MC14066BDTR2G Related Parts

MC14066BDTR2G Frequently Asked Questions (FAQ)

  • The recommended operating voltage range for the MC14066BDTR2G is 4.5V to 18V.

  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input signals are within the recommended voltage range.

  • The maximum frequency of operation for the MC14066BDTR2G is 10MHz.

  • To handle thermal considerations, ensure good airflow around the device, and consider using a heat sink if the device is expected to operate at high temperatures or high power levels.

  • For optimal performance, keep the input and output traces short and away from noise sources. Use a ground plane to reduce noise and ensure good power supply decoupling.
