MC14081BCPG Information
MC14081BCPG by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC14081BCPG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70099865
|
RS | CMOS LOGIC, QUAD 2-INPUT AND GATE, PDIP-14, PB-FREE Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$0.3700 | RFQ |
|
|
Bristol Electronics | 100 |
|
RFQ | ||
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
Vyrian | Logic ICs | 246 |
|
RFQ |
US Tariff Estimator: MC14081BCPG by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MC14081BCPG
MC14081BCPG CAD Models
-

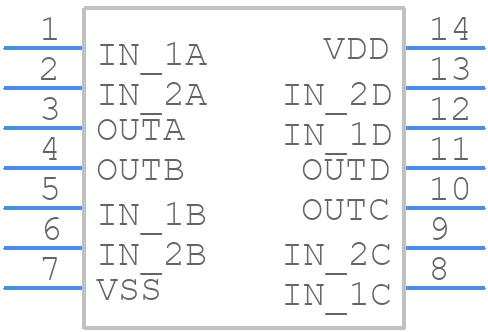

Part Symbol
-

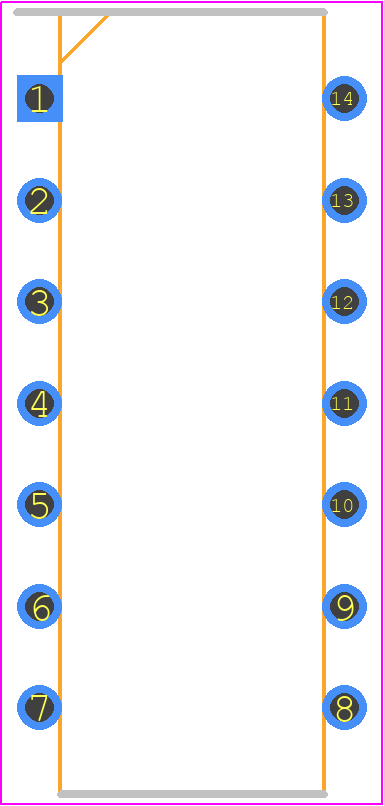

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MC14081BCPG Part Data Attributes
|
|
MC14081BCPG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC14081BCPG
onsemi
4000/14000/40000 SERIES, QUAD 2-INPUT AND GATE, PDIP14, ROHS COMPLIANT, PLASTIC, DIP-14
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | DIP | |
| Package Description | ROHS COMPLIANT, PLASTIC, DIP-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | Unknown | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | onsemi | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-PDIP-T14 | |
| JESD-609 Code | e3 | |
| Length | 18.86 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | AND GATE | |
| Number of Functions | 4 | |
| Number of Inputs | 2 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP14,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Packing Method | RAIL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 300 ns | |
| Propagation Delay (tpd) | 300 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 4.69 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 7.62 mm |
Alternate Parts for MC14081BCPG
This table gives cross-reference parts and alternative options found for MC14081BCPG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC14081BCPG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CD4081BF3A | Intersil Corporation | Check for Price | IC,LOGIC GATE,QUAD 2-INPUT AND,CMOS,DIP,14PIN,CERAMIC | MC14081BCPG vs CD4081BF3A |
| 5962R9665505VCX | Harris Semiconductor | Check for Price | AND Gate, 4000/14000/40000 Series, 4-Func, 2-Input, CMOS, CDIP14 | MC14081BCPG vs 5962R9665505VCX |
| CD4081BFMSR | Intersil Corporation | Check for Price | 4000/14000/40000 SERIES, QUAD 2-INPUT AND GATE, CDIP14 | MC14081BCPG vs CD4081BFMSR |
| M38510H17001BCX | Intersil Corporation | Check for Price | 5000 SERIES, QUAD 2-INPUT AND GATE, CDIP14, CERAMIC, DIP-14 | MC14081BCPG vs M38510H17001BCX |
| CD4081BEX | Harris Semiconductor | Check for Price | AND Gate, 4000/14000/40000 Series, 4-Func, 2-Input, CMOS, PDIP14 | MC14081BCPG vs CD4081BEX |
| 4081PC | Fairchild Semiconductor Corporation | Check for Price | AND Gate, CMOS, PDIP14, | MC14081BCPG vs 4081PC |
| MC14081BCPDS | Motorola Mobility LLC | Check for Price | 4000/14000/40000 SERIES, QUAD 2-INPUT AND GATE, PDIP14, 646-06 | MC14081BCPG vs MC14081BCPDS |
| 4081BDMQB | Fairchild Semiconductor Corporation | Check for Price | AND Gate, CMOS, CDIP14, | MC14081BCPG vs 4081BDMQB |
MC14081BCPG Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the MC14081BCPG is 4.5V to 18V.
-
To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input signals are within the recommended voltage range.
-
The maximum frequency of operation for the MC14081BCPG is 10MHz, but it can be limited by the specific application and layout.
-
To handle thermal considerations, ensure good heat dissipation by providing adequate airflow, using a heat sink if necessary, and keeping the device away from heat sources.
-
The MC14081BCPG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and handling to prevent damage.
