Part Details for MC33152DG by onsemi
Results Overview of MC33152DG by onsemi
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (8 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
MC33152DG Information
MC33152DG by onsemi is an MOSFET Driver.
MOSFET Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MC33152DG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
97K4663
|
Newark | Driver, Mosfet, Smd, 33152, Soic8, Driver Configuration:-, Peak Output Current:1.5A, Supply Voltage Min:6.1V, Supply Voltage Max:18V, Driver Case Style:Soic, No. Of Pins:8Pins, Input Delay:55Ns, Output Delay:40Ns, Operating Rohs Compliant: Yes |Onsemi MC33152DG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1326 |
|
$0.6330 / $1.4000 | Buy Now |
|
DISTI #
MC33152DG
|
Avnet Americas | MOSFET Driver, High Speed, Dual - Rail/Tube (Alt: MC33152DG) COO: Philippines (the) RoHS: Compliant Min Qty: 1078 Package Multiple: 98 Lead time: 15 Weeks, 0 Days Container: Tube | 0 |
|
$0.6073 / $0.6647 | Buy Now |
|
DISTI #
70339999
|
RS | MOSFET DRIVER 1.5A DUAL HIGH SPEED SOIC8 Min Qty: 2 Package Multiple: 1 Container: Bulk | 0 |
|
$1.3700 / $1.6300 | RFQ |
|
|
Bristol Electronics | 127 |
|
RFQ | ||
|
DISTI #
MC33152DG
|
TME | IC: driver, MOSFET gate driver, SO8, -1.5÷1.5A, 0.8÷11.2V, Ch: 2 Min Qty: 1 | 38 |
|
$0.9600 / $1.5500 | Buy Now |
|
DISTI #
MC33152DG
|
IBS Electronics | ON SEMICONDUCTOR MC33152DG DUAL POWER DRIVER 6.1V-18V SUPPLY 1.5A OUT 40NS DELAY SOIC-8 Min Qty: 98 Package Multiple: 1 | 392 |
|
$0.7840 / $0.8610 | Buy Now |
|
DISTI #
MC33152DG
|
Avnet Asia | (Alt: MC33152DG) RoHS: Compliant Min Qty: 1078 Package Multiple: 98 Lead time: 15 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
MC33152DG
|
Avnet Silica | MOSFET Driver High Speed Dual (Alt: MC33152DG) RoHS: Compliant Min Qty: 98 Package Multiple: 98 Lead time: 16 Weeks, 0 Days | Silica - 588 |
|
Buy Now | |
|
|
Chip Stock | MOSFETDriverDual,Non-Inverting,6.1V-18Vsupply,1.5Apeakout,100kOhmoutput,SOIC-8 | 163 |
|
RFQ | |
|
DISTI #
MC33152DG
|
EBV Elektronik | MOSFET Driver High Speed Dual (Alt: MC33152DG) RoHS: Compliant Min Qty: 98 Package Multiple: 98 Lead time: 17 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: MC33152DG by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MC33152DG
MC33152DG CAD Models
-

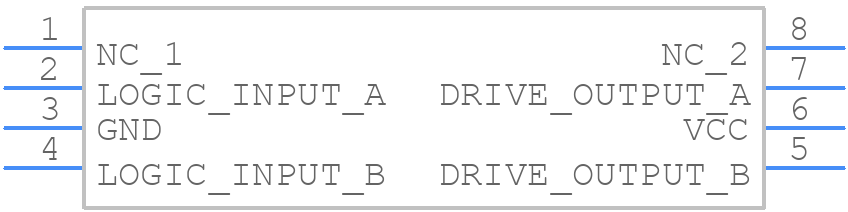

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MC33152DG Part Data Attributes
|
|
MC33152DG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC33152DG
onsemi
MOSFET Driver, High Speed, Dual, SOIC-8 Narrow Body, 98-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC-8 Narrow Body | |
| Package Description | Sop, Sop8,.25 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 751-07 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 16 Weeks | |
| High Side Driver | Yes | |
| Input Characteristics | Gated Schmitt Trigger | |
| Interface IC Type | Buffer Or Inverter Based Mosfet Driver | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | Standard | |
| Output Peak Current Limit-Nom | 1.5 A | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Current-Max | 15 Ma | |
| Supply Voltage-Max | 18 V | |
| Supply Voltage-Min | 6.5 V | |
| Supply Voltage-Nom | 12 V | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Turn-off Time | 0.12 µS | |
| Turn-on Time | 0.12 µS | |
| Width | 3.9 Mm |
Alternate Parts for MC33152DG
This table gives cross-reference parts and alternative options found for MC33152DG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC33152DG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC34152DG | onsemi | $0.7023 | MOSFET Driver, High Speed, Dual, SOIC-8 Narrow Body, 98-TUBE | MC33152DG vs MC34152DG |
| MC33152DR2G | onsemi | $0.7480 | MOSFET Driver, High Speed, Dual, SOIC-8 Narrow Body, 2500-REEL | MC33152DG vs MC33152DR2G |
| MC33152PG | onsemi | $1.1465 | MOSFET Driver, High Speed, Dual, 8 LEAD PDIP, 50-TUBE | MC33152DG vs MC33152PG |
| MC34152D | onsemi | Check for Price | 1.5A 2 CHANNEL, BUF OR INV BASED MOSFET DRIVER, PDSO8, PLASTIC, SOIC-8 | MC33152DG vs MC34152D |
| MC34152DR2 | onsemi | Check for Price | 1.5A 2 CHANNEL, BUF OR INV BASED MOSFET DRIVER, PDSO8, PLASTIC, SOIC-8 | MC33152DG vs MC34152DR2 |
| MC33152DR2 | onsemi | Check for Price | 1.5A 2 CHANNEL, BUF OR INV BASED MOSFET DRIVER, PDSO8, PLASTIC, SOIC-8 | MC33152DG vs MC33152DR2 |
| MC33152P | onsemi | Check for Price | 1.5A 2 CHANNEL, BUF OR INV BASED MOSFET DRIVER, PDIP8, PLASTIC, DIP-8 | MC33152DG vs MC33152P |
| MC34152PG | onsemi | Check for Price | MOSFET Driver, High Speed, Dual, 8 LEAD PDIP, 50-TUBE | MC33152DG vs MC34152PG |
MC33152DG Frequently Asked Questions (FAQ)
-
A good PCB layout for the MC33152DG involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded inductor and to keep the device away from high-frequency components.
-
To ensure the MC33152DG operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage is within the recommended range. Also, ensure the output current is within the specified limit to prevent overheating.
-
The recommended input capacitor value for the MC33152DG is 10uF to 22uF, with a voltage rating of 25V or higher. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended to minimize voltage ripple and ensure stable operation.
-
To troubleshoot issues with the MC33152DG, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating, such as excessive temperature or burning smells. Use an oscilloscope to check for voltage ripple or oscillations. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
-
Yes, the MC33152DG is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified and meets the requirements for automotive applications. However, it's essential to follow the recommended operating conditions, PCB layout, and thermal management guidelines to ensure reliable operation in these applications.
