Part Details for MC34063ADG by onsemi
Results Overview of MC34063ADG by onsemi
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (8 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MC34063ADG Information
MC34063ADG by onsemi is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MC34063ADG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
45J1208
|
Newark | Step-Up/Step-Down/Invert Regulator, 8-Soic, Output Type:Adjustable, No. Of Outputs:1Outputs, Topology:Buck, Boost, Inverting, Input Voltage Min:3V, Input Voltage Max:40V, Max Output Current:3A, Ic Case/Package:Soic, Product Range:-Rohs Compliant: Yes |Onsemi MC34063ADG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 561 |
|
$0.3150 / $0.7100 | Buy Now |
|
DISTI #
MC34063ADG
|
Avnet Americas | Buck / Boost / Inverting Regulator, Switching, 1.5 A TA= 0?C to +70?C - Rail/Tube (Alt: MC34063ADG) COO: Czechia RoHS: Compliant Min Qty: 98 Package Multiple: 1 Lead time: 20 Weeks, 0 Days Container: Tube | 11341 |
|
$0.6331 | Buy Now |
|
DISTI #
45J1208
|
Avnet Americas | Buck / Boost / Inverting Regulator, Switching, 1.5 A TA= 0?C to +70?C - Bulk (Alt: 45J1208) COO: Czechia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk | 561 Partner Stock |
|
$0.3470 / $0.7100 | Buy Now |
|
DISTI #
70099912
|
RS | IC REG BUCK BOOST INV ADJ 8SOIC Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$0.5830 / $0.6460 | RFQ |
|
|
Bristol Electronics | Min Qty: 6 | 40 |
|
$0.5850 / $0.9000 | Buy Now |
|
|
Bristol Electronics | 5 |
|
RFQ | ||
|
|
Rochester Electronics | Switching Regulator, Voltage-mode, 1.5A, 100kHz Switching Freq-Max, BIPolar, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 | 2 |
|
$0.2381 / $0.3840 | Buy Now |
|
DISTI #
MC34063ADG
|
TME | PMIC, DC/DC converter, Uin: 3÷40VDC, Uout: 1.25÷40VDC, 1.5A, SO8 Min Qty: 1 | 1073 |
|
$0.3820 / $0.6600 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
MC34063ADG
|
Avnet Asia | Buck / Boost / Inverting Regulator, Switching, 1.5 A TA= 0?C to +70?C (Alt: MC34063ADG) RoHS: Compliant Min Qty: 2450 Package Multiple: 98 Lead time: 20 Weeks, 0 Days | 0 |
|
RFQ |
US Tariff Estimator: MC34063ADG by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MC34063ADG
MC34063ADG CAD Models
-

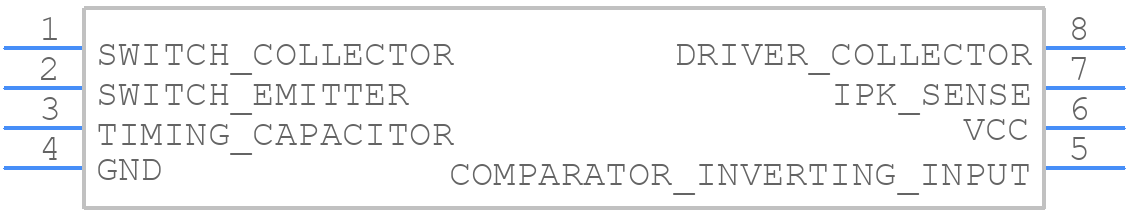

Part Symbol
-
Footprint
-

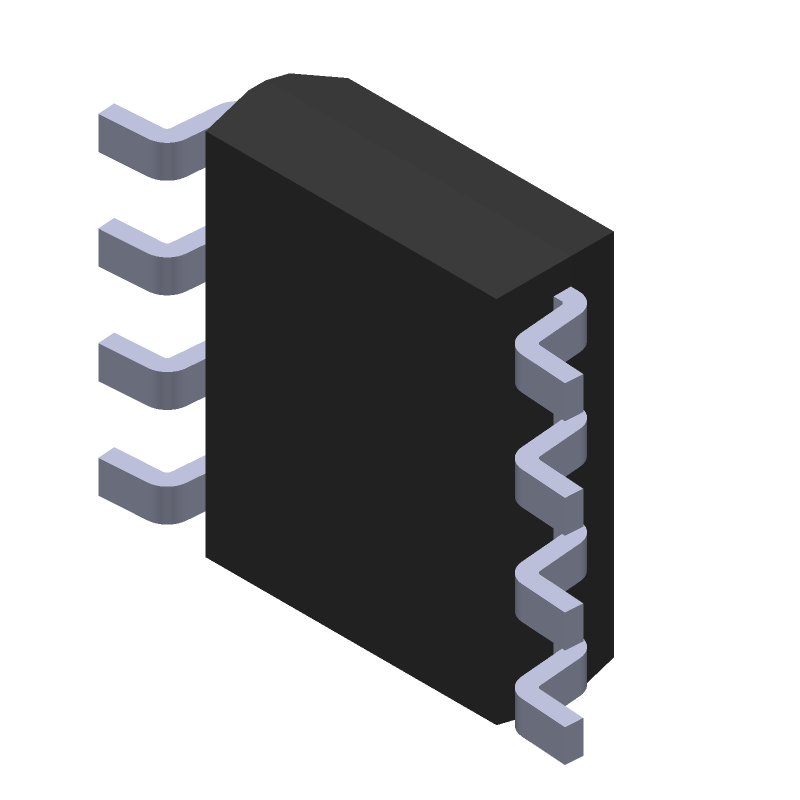

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MC34063ADG Part Data Attributes
|
|
MC34063ADG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC34063ADG
onsemi
Buck / Boost / Inverting Regulator, Switching, 1.5 A TA= 0°C to +70°C, SOIC-8 Narrow Body, 98-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC-8 Narrow Body | |
| Package Description | SOP, SOP8,.25 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 751-07 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | onsemi | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | VOLTAGE-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 40 V | |
| Input Voltage-Min | 3 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 1.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 4 mA | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK-BOOST | |
| Switching Frequency-Max | 100 kHz | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for MC34063ADG
This table gives cross-reference parts and alternative options found for MC34063ADG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC34063ADG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC34063ABD-TR | STMicroelectronics | $0.2593 | DC-DC CONVERTER CONTROL CIRCUITS | MC34063ADG vs MC34063ABD-TR |
| MC34063EBD | STMicroelectronics | Check for Price | DC-DC CONVERTER CONTROL CIRCUITS | MC34063ADG vs MC34063EBD |
| SP34063AEN-L/TR | Exar Corporation | Check for Price | Switching Regulator, 1.5A, 110kHz Switching Freq-Max, PDSO8, LEAD FREE, MO-012-AA, NSOIC-8 | MC34063ADG vs SP34063AEN-L/TR |
| MC34063ADE4 | Texas Instruments | Check for Price | 1.5-A boost, buck, inverting switching regulator, operation from 0°C to 70°C 8-SOIC 0 to 70 | MC34063ADG vs MC34063ADE4 |
| MC33063ADR2 | Motorola Mobility LLC | Check for Price | 1.5A SWITCHING REGULATOR, 100kHz SWITCHING FREQ-MAX, PDSO8, PLASTIC, SO-8 | MC34063ADG vs MC33063ADR2 |
| MC34063ABD | STMicroelectronics | Check for Price | DC-DC CONVERTER CONTROL CIRCUITS | MC34063ADG vs MC34063ABD |
| MC33063AD | Rochester Electronics LLC | Check for Price | 1.5A SWITCHING REGULATOR, 100kHz SWITCHING FREQ-MAX, PDSO8, SOIC-8 | MC34063ADG vs MC33063AD |
| SP34063AEN/TR | Exar Corporation | Check for Price | Switching Regulator, Voltage-mode, 1.5A, 110kHz Switching Freq-Max, PDSO8, MS-012AA, NSOIC-8 | MC34063ADG vs SP34063AEN/TR |
MC34063ADG Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the MC34063ADG is 40V, but it's recommended to keep it below 30V for reliable operation.
-
The inductor value depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor value calculation formula provided in the datasheet, and then adjust based on the specific application requirements.
-
The compensation pin is used to stabilize the voltage regulator loop. A capacitor and resistor network is typically connected between the compensation pin and ground to provide the necessary compensation. The values of the capacitor and resistor depend on the specific application and can be calculated using the datasheet formulas.
-
The MC34063ADG has a recommended operating temperature range of -40°C to 125°C. Ensure good thermal design, use a suitable heat sink if necessary, and avoid overheating the device by keeping the junction temperature below 150°C.
-
The maximum output current that the MC34063ADG can provide depends on the input voltage, output voltage, and inductor value. Typically, it can provide up to 1.5A of output current, but this can be limited by the inductor saturation current and the device's thermal limitations.
