MC74HC4040ADR2G Information
MC74HC4040ADR2G by onsemi is a Counter.
Counters are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC74HC4040ADR2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
42Y0621
|
Newark | Counter, Bin Ripple, 12Bit, Soic-16, Logic Family/Base Number:74Hc4040, Counter Type:Binary Ripple, Clock Frequency:50Mhz, Count Maximum:4095, Logic Case Style:Soic, No. Of Pins:16Pins, Supply Voltage Min:2V, Supply Voltage Max:6V, rohs Compliant: Yes |Onsemi MC74HC4040ADR2G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3794 |
|
$0.2480 / $0.5400 | Buy Now |
|
DISTI #
71J5616
|
Newark | Ic, counter, up,12-Bit Binary, hc-Cmos, sop,16Pin, plastic Rohs Compliant: Yes |Onsemi MC74HC4040ADR2G RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3160 / $0.3940 | Buy Now |
|
DISTI #
MC74HC4040ADR2G
|
Avnet Americas | 12-Stage Binary Ripple Counter. ONSSPCLGC, - Tape and Reel (Alt: MC74HC4040ADR2G) COO: Israel RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.1882 / $0.1921 | Buy Now |
|
|
Rochester Electronics | MC74HC4040A - 12-Stage Binary Ripple Counter High-Performance Silicon-Gate CMOS RoHS: Compliant Status: Rochester Active Min Qty: 1 | 40925 |
|
$22.1300 / $25.1500 | Buy Now |
|
DISTI #
MC74HC4040ADR2G
|
Avnet Asia | 12-Stage Binary Ripple Counter. ONSSPCLGC, (Alt: MC74HC4040ADR2G) RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
MC74HC4040ADR2G
|
Avnet Silica | 12Stage Binary Ripple Counter ONSSPCLGC (Alt: MC74HC4040ADR2G) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days | Silica - 2500 |
|
Buy Now | |
|
|
Chip Stock | Counter,BinaryRipple,74HC,50MHz,MaxCount4095,2Vto6V,16Pins,SOIC | 51600 |
|
RFQ | |
|
|
Component Electronics, Inc | SMT TAPE | 38 |
|
$0.8300 / $1.2700 | Buy Now |
|
DISTI #
MC74HC4040ADR2G
|
EBV Elektronik | 12Stage Binary Ripple Counter ONSSPCLGC (Alt: MC74HC4040ADR2G) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 15 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | Falling Edge 1 50MHz SOIC-16 Counters Dividers RoHS | 1 |
|
$0.9249 / $1.2145 | Buy Now |
US Tariff Estimator: MC74HC4040ADR2G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MC74HC4040ADR2G
MC74HC4040ADR2G CAD Models
-

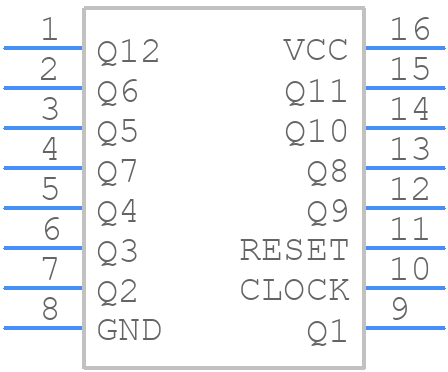

Part Symbol
-

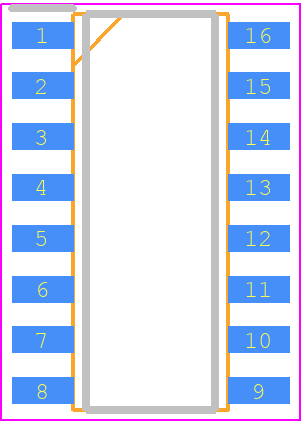

Footprint
-

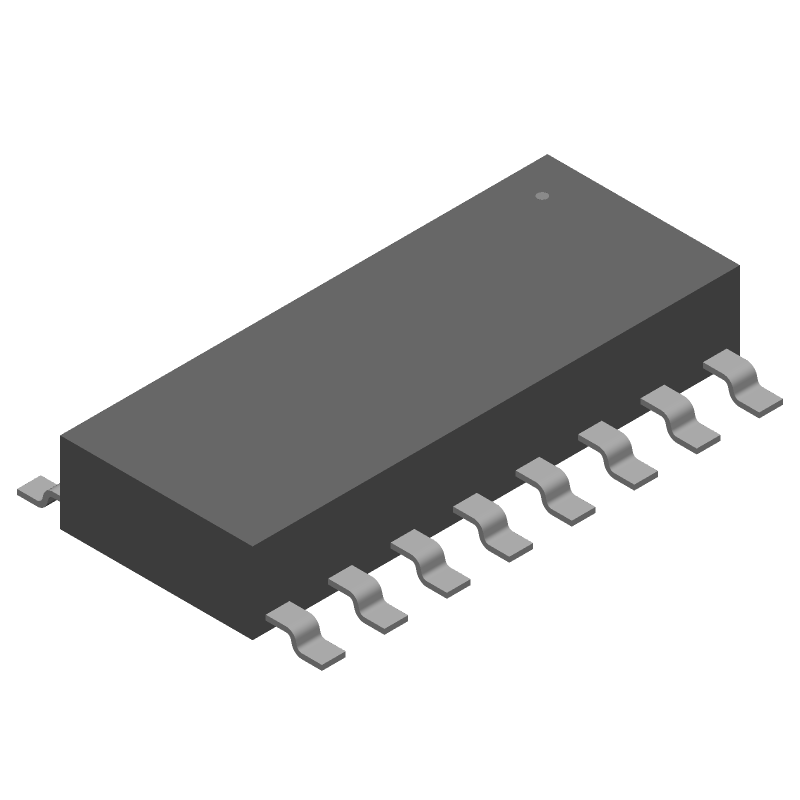

3D Model
