MC74LCX125DTR2G Information
MC74LCX125DTR2G by onsemi is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC74LCX125DTR2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
81Y6687
|
Newark | Buffer, Non Inverting, Tssop-14, Logic Family/Base Number:74Lcx125, Logic Device Type:Buffer, Non Inverting, Logic Case Style:Tssop, No. Of Pins:14Pins, Supply Voltage Min:2V, Supply Voltage Max:3.6V, Logic Ic Family:74Lcx, Logic Rohs Compliant: Yes |Onsemi MC74LCX125DTR2G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1272 |
|
$0.2370 / $0.2900 | Buy Now |
|
DISTI #
71J5634
|
Newark | Ic, buffer/Driver, single,4-Bit, lcx/Lvc-Cmos, tssop,14Pin, plastic Rohs Compliant: Yes |Onsemi MC74LCX125DTR2G RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1050 / $0.1390 | Buy Now |
|
DISTI #
MC74LCX125DTR2G
|
Avnet Americas | Buffer, 74LCX125, 2 V to 3.6 V, TSSOP-14 - Tape and Reel (Alt: MC74LCX125DTR2G) COO: Philippines (the) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 7 Weeks, 0 Days Container: Reel | 2500 |
|
$0.0941 / $0.0960 | Buy Now |
|
DISTI #
70466465
|
RS | MC74LCX125DTR2G, QUAD NON-INVERTING 3-STATE BUFFER, 2 TO 3.6 V, 14-PIN TSSOP Min Qty: 100 Package Multiple: 1 Container: Bulk | 0 |
|
$0.2610 / $0.2900 | RFQ |
|
|
Bristol Electronics | 14156 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 9 | 4815 |
|
$0.1462 / $0.5625 | Buy Now |
|
|
Bristol Electronics | Min Qty: 8 | 3581 |
|
$0.1828 / $0.7031 | Buy Now |
|
|
Bristol Electronics | 2546 |
|
RFQ | ||
|
|
Rochester Electronics | Bus Driver, LVC/LCX/Z Series, 4-Func, 1-Bit, True Output, CMOS, PDSO14 RoHS: Compliant Status: Active Min Qty: 1 | 8163 |
|
$0.0851 / $0.1373 | Buy Now |
|
DISTI #
MC74LCX125DTR2G
|
TME | IC: digital, buffer,non-inverting, Ch: 4, CMOS,TTL, SMD, TSSOP14 Min Qty: 1 | 0 |
|
$0.2820 / $0.5900 | RFQ |
US Tariff Estimator: MC74LCX125DTR2G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MC74LCX125DTR2G
MC74LCX125DTR2G CAD Models
-

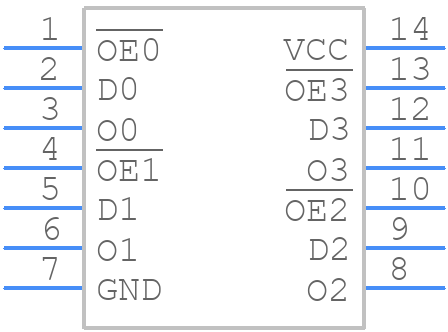

Part Symbol
-

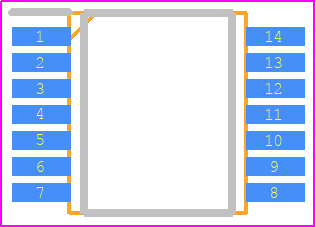

Footprint
-

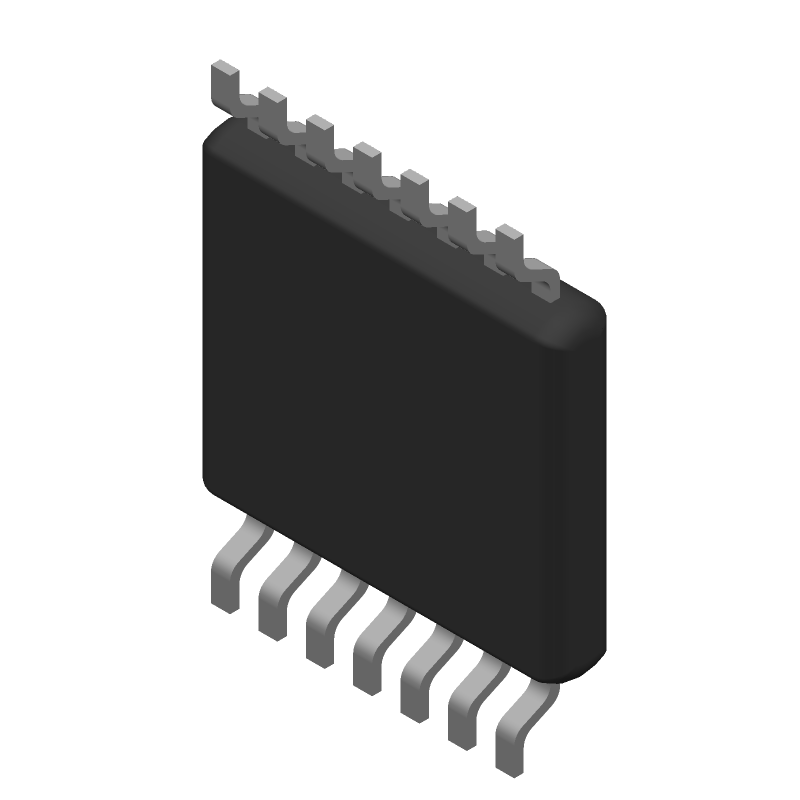

3D Model
