MC74VHC1G03DFT1G by:
onsemi

Single 2-Input NOR Gate, Open Drain, SC-88A (SC-70-5 / SOT-353), 3000-REEL

Part Details for MC74VHC1G03DFT1G by onsemi

Results Overview of MC74VHC1G03DFT1G by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Environmental Monitoring Industrial Automation Financial Technology (Fintech) Energy and Power Systems Renewable Energy Automotive

MC74VHC1G03DFT1G Information

MC74VHC1G03DFT1G by onsemi is a Gate.
Gates are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for MC74VHC1G03DFT1G

Part # Distributor Description Stock Price Buy
DISTI # 67H6745
Newark Single Nor Gate, 2I/P, Sot-353-5, Logic Function:Nor Gate, No. Of Elements:Single, No. Of Inputs:2Inputs, No. Of Pins:5Pins, Ic Case/Package:Sot-353, Product Range:-, Logic Ic Family:74Vhc, Supply Voltage Min:2V, Output Current:8Marohs Compliant: Yes |Onsemi MC74VHC1G03DFT1G RoHS: Compliant Min Qty: 9000 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1,000 $0.0390
$0.0390 Buy Now
DISTI # MC74VHC1G03DFT1G
Avnet Americas Single 2-Input NOR Gate, Open Drain. ONSSPCLGC, - Tape and Reel (Alt: MC74VHC1G03DFT1G) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 30000 Package Multiple: 3000 Lead time: 53 Weeks, 1 Days Container: Reel 39000 Factory Stock
  • 30,000 $0.0244
  • 36,000 $0.0243
  • 66,000 $0.0242
  • 150,000 $0.0240
  • 300,000 $0.0239
$0.0239 / $0.0244 Buy Now
DISTI # 70466528
RS MC74VHC1G03DFT1G, 2-INPUT NOR LOGIC GATE, 2 - 5.5 V, 5-PIN SC-88A Min Qty: 100 Package Multiple: 1 Container: Bulk 0
  • 100 $0.2100
  • 200 $0.1990
  • 300 $0.1890
  • 400 $0.1780
$0.1780 / $0.2100 RFQ
Rochester Electronics NOR Gate, AHC/VHC Series, 1-Func, 2-Input, CMOS, PDSO5 RoHS: Compliant Status: Active Min Qty: 1 1419
  • 100 $0.0310
  • 500 $0.0279
  • 1,000 $0.0257
  • 10,000 $0.0229
  • 100,000 $0.0192
$0.0192 / $0.0310 Buy Now
DISTI # MC74VHC1G03DFT1G
TME IC: digital, NOR, Ch: 1, IN: 2, CMOS, SMD, SC88A, 2÷5.5VDC, -55÷125°C Min Qty: 1 0
  • 1 $0.1200
  • 10 $0.0580
  • 25 $0.0508
  • 100 $0.0425
  • 250 $0.0387
  • 500 $0.0364
  • 1,000 $0.0359
$0.0359 / $0.1200 RFQ
DISTI # MC74VHC1G03DFT1G
IBS Electronics NOR 74VHC1G03 E3 74VHC LOGIC GATE CIRCUIT 7.5NS @ 5V 50PF 1MM - 8MA 1.5V-3.85V Min Qty: 30000 Package Multiple: 1 0
  • 9,000 $0.0337
  • 30,000 $0.0346
  • 30,000 $0.0329
  • 60,000 $0.0325
  • 120,000 $0.0315
$0.0315 / $0.0346 Buy Now
DISTI # MC74VHC1G03DFT1G
Avnet Asia Single 2-Input NOR Gate, Open Drain. ONSSPCLGC, (Alt: MC74VHC1G03DFT1G) RoHS: Compliant Min Qty: 30000 Package Multiple: 3000 Lead time: 11 Weeks, 0 Days 0
RFQ
DISTI # MC74VHC1G03DFT1G
Avnet Silica Single 2Input NOR Gate Open Drain ONSSPCLGC (Alt: MC74VHC1G03DFT1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock NOR74VHC1G03e374VHClogicgatecircuit7.5ns@5V50pF1mm-8mA1.5V-3.85V 39700
RFQ
DISTI # MC74VHC1G03DFT1G
EBV Elektronik Single 2Input NOR Gate Open Drain ONSSPCLGC (Alt: MC74VHC1G03DFT1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: MC74VHC1G03DFT1G by onsemi

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

MC74VHC1G03DFT1G
onsemi
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for MC74VHC1G03DFT1G

MC74VHC1G03DFT1G CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

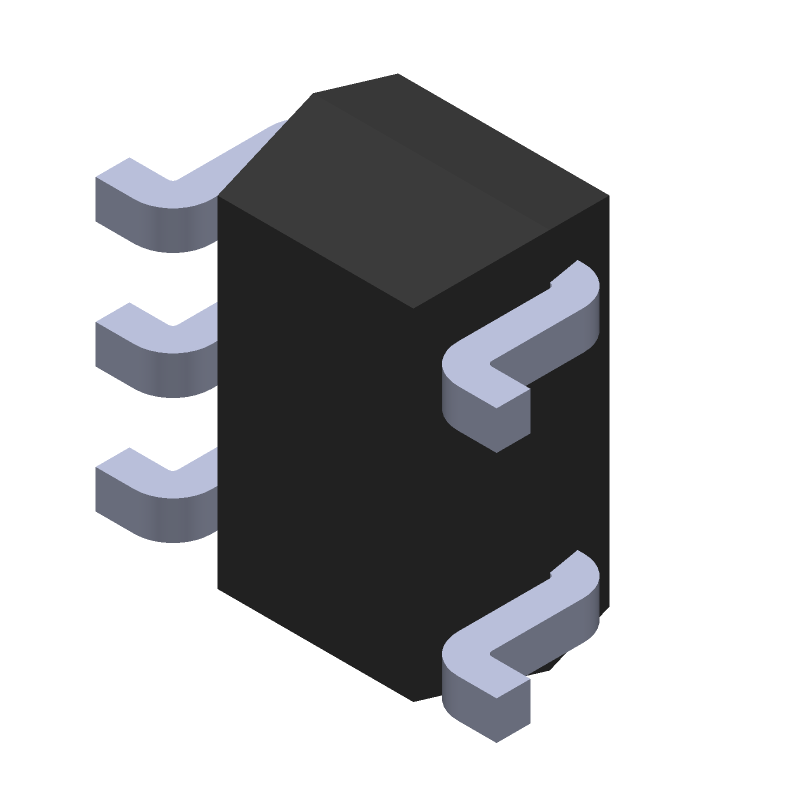

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MC74VHC1G03DFT1G Part Data Attributes

Parametric Data
MC74VHC1G03DFT1G onsemi
Buy Now Datasheet
Compare Parts:
MC74VHC1G03DFT1G onsemi Single 2-Input NOR Gate, Open Drain, SC-88A (SC-70-5 / SOT-353), 3000-REEL
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code SC-88A (SC-70-5 / SOT-353)
Package Description Tssop, Tssop5/6,.08
Pin Count 5
Manufacturer Package Code 419A-02
Reach Compliance Code Compliant
HTS Code 8542.39.00.01
Factory Lead Time 53 Weeks, 1 Day
Family Ahc/Vhc
JESD-30 Code R-PDSO-G5
JESD-609 Code e3
Length 2 Mm
Load Capacitance (CL) 50 Pf
Logic IC Type Nor Gate
Max I(ol) 0.008 A
Moisture Sensitivity Level 1
Number of Functions 1
Number of Inputs 2
Number of Terminals 5
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Output Characteristics Open-Drain
Package Body Material Plastic/Epoxy
Package Code TSSOP
Package Equivalence Code TSSOP5/6,.08
Package Shape Rectangular
Package Style Small Outline, Thin Profile, Shrink Pitch
Packing Method Tr
Peak Reflow Temperature (Cel) 260
Power Supply Current-Max (ICC) 0.04 Ma
Prop. Delay@Nom-Sup 10 Ns
Propagation Delay (tpd) 15.5 Ns
Qualification Status Not Qualified
Schmitt Trigger No
Seated Height-Max 1.1 Mm
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 2 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Military
Terminal Finish Matte Tin (Sn) - Annealed
Terminal Form Gull Wing
Terminal Pitch 0.65 Mm
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) 30
Width 1.25 Mm

Alternate Parts for MC74VHC1G03DFT1G

This table gives cross-reference parts and alternative options found for MC74VHC1G03DFT1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC74VHC1G03DFT1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MC74VHC1G03DFR2 onsemi Check for Price AHC/VHC SERIES, 2-INPUT NOR GATE, PDSO5, SC-70, SC-88A, SOT-353, 5 PIN MC74VHC1G03DFT1G vs MC74VHC1G03DFR2
NLVVHC1G03DFT1G onsemi Check for Price Single 2-Input NOR Gate, Open Drain, SC-88A / SC-70-5, 3000-REEL, Automotive Qualified MC74VHC1G03DFT1G vs NLVVHC1G03DFT1G
Part Number Manufacturer Composite Price Description Compare
MC74VHC1G03DFT4 onsemi Check for Price AHC/VHC SERIES, 2-INPUT NOR GATE, PDSO5, SC-70, SC-88A, SOT-353, 5 PIN MC74VHC1G03DFT1G vs MC74VHC1G03DFT4
MC74VHC1G03DFT1 onsemi Check for Price AHC/VHC SERIES, 2-INPUT NOR GATE, PDSO5, SC-70, SC-88A, SOT-353, 5 PIN MC74VHC1G03DFT1G vs MC74VHC1G03DFT1
MC74VHC1G03DFT2 onsemi Check for Price AHC/VHC SERIES, 2-INPUT NOR GATE, PDSO5, SC-70, SC-88A, SOT-353, 5 PIN MC74VHC1G03DFT1G vs MC74VHC1G03DFT2
MC74VHC1G03DFT2G onsemi Check for Price Single 2-Input NOR Gate, Open Drain, SC-88A (SC-70-5 / SOT-353), 3000-REEL MC74VHC1G03DFT1G vs MC74VHC1G03DFT2G
MC74VHC1G03DTR2 onsemi Check for Price AHC/VHC SERIES, 2-INPUT NOR GATE, PDSO5, SC-59, SOT-23, TSOP-5 MC74VHC1G03DFT1G vs MC74VHC1G03DTR2
74AHC1G02GW,115 NXP Semiconductors Check for Price 74AHC(T)1G02 - 2-input NOR gate TSSOP 5-Pin MC74VHC1G03DFT1G vs 74AHC1G02GW,115
MC74VHC1G03DBVT1G onsemi Check for Price Single 2-Input NOR Gate, Open Drain, SC-74A-5 3.00x1.50x0.95, 0.95P, 3000-REEL MC74VHC1G03DFT1G vs MC74VHC1G03DBVT1G
ELM7SH02MB-EL ELM Technology Corp Check for Price NOR Gate, LV/LV-A/LVX/H Series, 1-Func, 2-Input, CMOS, PDSO5, SOT-25, 5 PIN MC74VHC1G03DFT1G vs ELM7SH02MB-EL
NLV74VHC1GT02DTT1G onsemi Check for Price Single 2-Input NOR Gate TTL Level, TSOP-5, 3000-REEL, Automotive Qualified MC74VHC1G03DFT1G vs NLV74VHC1GT02DTT1G
MC74VHC1G03DTT1 onsemi Check for Price AHC/VHC SERIES, 2-INPUT NOR GATE, PDSO5, SC-59, SOT-23, TSOP-5 MC74VHC1G03DFT1G vs MC74VHC1G03DTT1
equivalents icon

MC74VHC1G03DFT1G Related Parts

MC74VHC1G03DFT1G Frequently Asked Questions (FAQ)

  • The recommended operating voltage range for the MC74VHC1G03DFT1G is 2.0V to 5.5V.

  • To prevent damage, ensure that the input signal is stable and within the recommended voltage range before applying power to the device. Also, use a power sequencing circuit to ensure that the input signal is valid before the power supply is applied.

  • The maximum frequency of operation for the MC74VHC1G03DFT1G is typically 100 MHz, but it can vary depending on the specific application and operating conditions.

  • The MC74VHC1G03DFT1G has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and handling of the device.

  • The thermal resistance of the MC74VHC1G03DFT1G is typically around 300°C/W for the DFN package.
