MC7815ABTG by: onsemi

Linear Voltage Regulator, 1 A, 5 to 24 V, Positive Vout: 15.0 V; TJ = -40°C to +125°C, TO-220, SINGLE GAUGE, 3-LEAD, 50-TUBE

Part Details for MC7815ABTG by onsemi

Results Overview of MC7815ABTG by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

MC7815ABTG Information

MC7815ABTG by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for MC7815ABTG

Part # Distributor Description Stock Price Buy
DISTI # 97Y9390
Newark Linear Volt Reg, Fixed, 15V, 1A, To220-3, Fixed Output Voltage Nom.:15V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Input Voltage Min:23V, Input Voltage Max:35V, Product Range:Mc7800 Series, Output Current:1A, Rohs Compliant: Yes |Onsemi MC7815ABTG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 313
  • 1 $0.7470
  • 10 $0.5640
  • 100 $0.4660
  • 500 $0.4270
  • 1,000 $0.4150
  • 2,500 $0.4030
  • 10,000 $0.3950
$0.3950 / $0.7470 Buy Now
DISTI # MC7815ABTG
Avnet Americas Linear Voltage Regulator, 1 A, 5 to 24 V, Positive Vout: 15.0 V, TJ = -40?C to +125?C. ONSSPCLDO, - Rail/Tube (Alt: MC7815ABTG) COO: Czechia RoHS: Compliant Min Qty: 2950 Package Multiple: 50 Lead time: 9 Weeks, 0 Days Container: Tube 0
  • 2,950 $0.2643
  • 5,900 $0.2630
  • 11,800 $0.2616
  • 23,600 $0.2603
  • 47,200 $0.2589
$0.2589 / $0.2643 Buy Now
DISTI # 70340130
RS MC7815ABTG, SINGLE LINEAR VOLTAGE REGULATOR, 1A 15 V, +/-2%, 3-PIN TO-220 Min Qty: 5 Package Multiple: 1 Container: Bulk 0
  • 5 $0.6300
  • 25 $0.6000
  • 50 $0.5700
$0.5700 / $0.6300 RFQ
DISTI # MC7815ABTG
TME IC: voltage regulator, linear,fixed, 15V, 1A, TO220AB, THT, tube Min Qty: 1 0
  • 1 $0.6000
  • 10 $0.4290
  • 25 $0.3710
  • 50 $0.3390
  • 100 $0.3170
  • 250 $0.3090
$0.3090 / $0.6000 RFQ
DISTI # MC7815ABTG
IBS Electronics LINEAR VOLTAGE REGULATOR 1 A 5 TO 24 V POSITIVE VOUT: 15.0 V TJ = -40&#xB0, C TO &#x2B, 125&#xB0, C Min Qty: 100 Package Multiple: 1 1000
  • 100 $0.4873
  • 500 $0.4248
  • 2,500 $0.3928
  • 5,000 $0.3804
  • 7,500 $0.3784
  • 25,000 $0.3766
  • 50,000 $0.3746
$0.3746 / $0.4873 Buy Now
DISTI # MC7815ABTG
Avnet Silica Linear Voltage Regulator 1 A 5 to 24 V Positive Vout 150 V TJ 40C to 125C ONSSPCLDO (Alt: MC7815ABTG) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 10 Weeks, 0 Days Silica - 950
Buy Now
Chip Stock LinearVoltageRegulator,1A,5to24V,PositiveVout:15.0V, TJ=-40°Cto+125°C 24500
RFQ
DISTI # MC7815ABTG
EBV Elektronik Linear Voltage Regulator 1 A 5 to 24 V Positive Vout 150 V TJ 40C to 125C ONSSPCLDO (Alt: MC7815ABTG) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 11 Weeks, 0 Days EBV - 0
Buy Now
Flip Electronics Stock, Ship Today 3800
RFQ
New Advantage Corporation TO220-3/A�/1A, 15V,�2% TOLERANCE, VOLTAGE REGULATOR RoHS: Compliant Min Qty: 1 Package Multiple: 50 3800
  • 650 $0.3992
  • 3,800 $0.3685
$0.3685 / $0.3992 Buy Now

US Tariff Estimator: MC7815ABTG by onsemi

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

MC7815ABTG
onsemi
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for MC7815ABTG

MC7815ABTG CAD Models

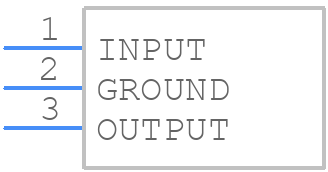

  • Part Symbol

    schematic symbol

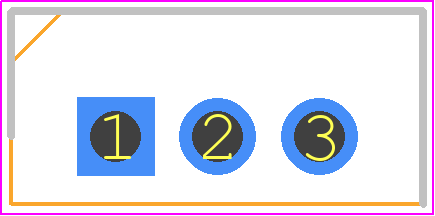

  • Footprint

    pcb footprint

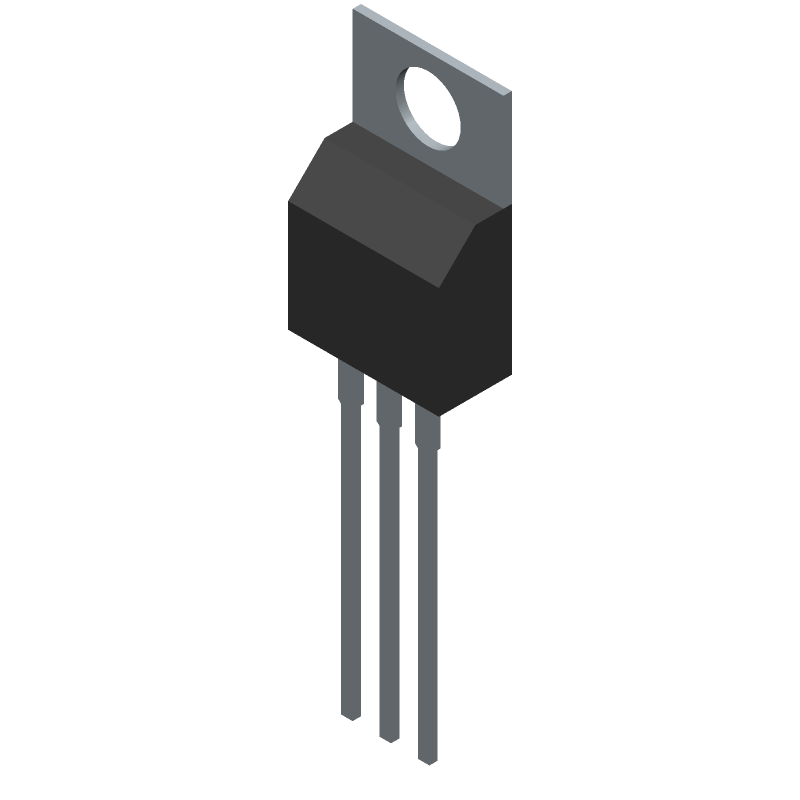

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MC7815ABTG Part Data Attributes

Parametric Data
MC7815ABTG onsemi
Buy Now Datasheet
Compare Parts:
MC7815ABTG onsemi Linear Voltage Regulator, 1 A, 5 to 24 V, Positive Vout: 15.0 V; TJ = -40°C to +125°C, TO-220, SINGLE GAUGE, 3-LEAD, 50-TUBE
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code TO-220, SINGLE GAUGE, 3-LEAD
Package Description To-220, 3 Pin
Pin Count 3
Manufacturer Package Code 221AB
Reach Compliance Code Not Compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Adjustability Fixed
Dropout Voltage1-Nom 2 V
Input Voltage Absolute-Max 35 V
Input Voltage-Max 30 V
Input Voltage-Min 17.9 V
JESD-30 Code R-XSFM-T3
JESD-609 Code e3
Length 9.97 Mm
Line Regulation-Max 0.022%
Load Regulation-Max 0.025%
Number of Functions 1
Number of Outputs 1
Number of Terminals 3
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Output Current1-Max 1 A
Output Voltage1-Max 15.6 V
Output Voltage1-Min 14.4 V
Output Voltage1-Nom 15 V
Package Body Material Unspecified
Package Code SFM
Package Equivalence Code SIP3,.1TB
Package Shape Rectangular
Package Style Flange Mount
Packing Method Rail
Qualification Status Not Qualified
Regulator Type Fixed Positive Single Output Standard Regulator
Seated Height-Max 19.68 Mm
Surface Mount No
Technology Bipolar
Terminal Finish Matte Tin (Sn) - Annealed
Terminal Form Through-Hole
Terminal Pitch 2.54 Mm
Terminal Position Single
Voltage Tolerance-Max 4%
Width 4.445 Mm

Alternate Parts for MC7815ABTG
