MC78L05ABPG Information
MC78L05ABPG by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MC78L05ABPG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MC78L05ABPG
|
Avnet Americas | Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 5.0 V, TJ = -40?C to +125?C. ONSSPCLDO, - Bulk (Alt: MC78L05ABPG) COO: Czechia RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Lead time: 9 Weeks, 0 Days Container: Bulk | 99971 Factory Stock |
|
$0.0779 / $0.0844 | Buy Now |
|
|
Bristol Electronics | 33 |
|
RFQ | ||
|
|
Rochester Electronics | Fixed Positive Standard Regulator, 5V, BIPolar, PBCY3 RoHS: Compliant Status: Active Min Qty: 1 | 12452 |
|
$0.0969 / $0.1563 | Buy Now |
|
DISTI #
MC78L05ABPG
|
TME | IC: voltage regulator, linear,fixed, 5V, 0.1A, TO92, THT, MC78L00A Min Qty: 1 | 0 |
|
$0.1390 / $0.3500 | RFQ |
|
DISTI #
MC78L05ABPG
|
Avnet Silica | Linear Voltage Regulator 100 mA 5 to 24 V Positive Vout 50 V TJ 40C to 125C ONSSPCLDO (Alt: MC78L05ABPG) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 10 Weeks, 0 Days | Silica - 2000 |
|
Buy Now | |
|
|
Chip Stock | LinearVoltageRegulator,100mA,5to24V,PositiveVout:5.0V, TJ=-40°Cto+125°C | 7531 |
|
RFQ | |
|
DISTI #
MC78L05ABPG
|
EBV Elektronik | Linear Voltage Regulator 100 mA 5 to 24 V Positive Vout 50 V TJ 40C to 125C ONSSPCLDO (Alt: MC78L05ABPG) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 11 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Flip Electronics | Stock, ship today | 5943 |
|
RFQ | |
|
|
New Advantage Corporation | TO92-3/A�/100MA, 5V,�5% TOLERANCE, VOLTAGE REGULATOR RoHS: Compliant Min Qty: 1 Package Multiple: 2000 | 2000 |
|
$0.1367 | Buy Now |
US Tariff Estimator: MC78L05ABPG by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MC78L05ABPG
MC78L05ABPG CAD Models
-

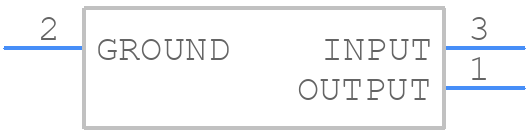

Part Symbol
-
Footprint
-

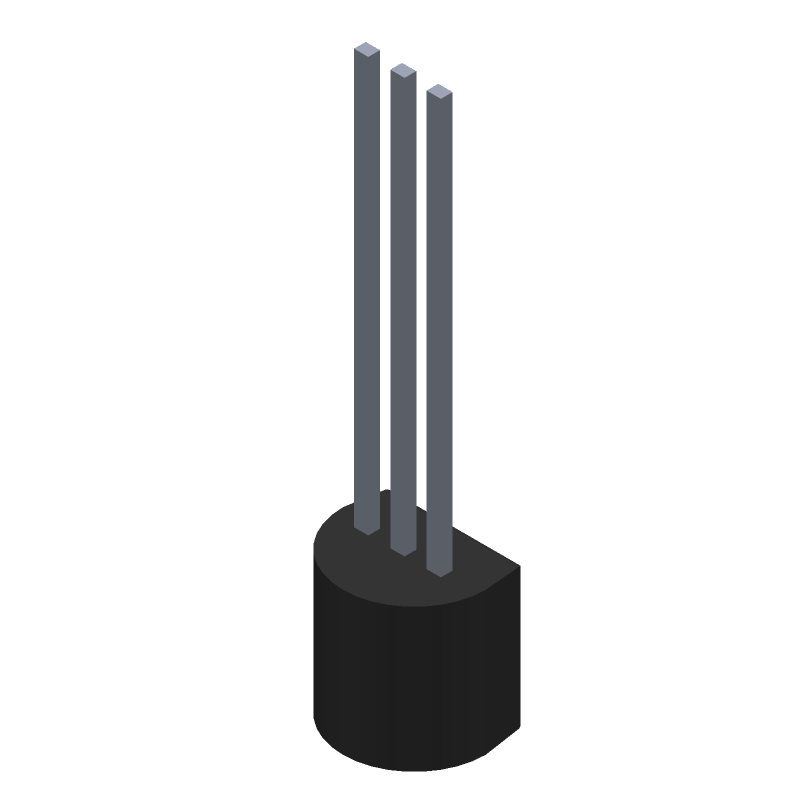

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MC78L05ABPG Part Data Attributes
|
|
MC78L05ABPG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC78L05ABPG
onsemi
Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 5.0 V; TJ = -40°C to +125°C, TO-92 (TO-226) 5.33mm Body Height, 2000-BLKBG
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-92 (TO-226) 5.33mm Body Height | |
| Package Description | TO-92, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 29-10 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Adjustability | FIXED | |
| Dropout Voltage1-Nom | 1.7 V | |
| Input Voltage Absolute-Max | 30 V | |
| Input Voltage-Max | 20 V | |
| Input Voltage-Min | 7 V | |
| JESD-30 Code | O-PBCY-T3 | |
| JESD-609 Code | e3 | |
| Line Regulation-Max | 0.15% | |
| Load Regulation-Max | 0.06% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.1 A | |
| Output Voltage1-Max | 5.2 V | |
| Output Voltage1-Min | 4.8 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-92 | |
| Package Equivalence Code | SIP3,.1,50 | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Packing Method | BAG | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | BOTTOM | |
| Voltage Tolerance-Max | 4% |
Alternate Parts for MC78L05ABPG
This table gives cross-reference parts and alternative options found for MC78L05ABPG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC78L05ABPG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC78L05ABPRAG | onsemi | $0.1840 | Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 5.0 V; TJ = -40°C to +125°C, TO-92 (TO-226) 5.33mm Body Height, 2000-REEL | MC78L05ABPG vs MC78L05ABPRAG |
| NCV78L05ABPREG | onsemi | $0.1972 | Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 5.0 V; TJ = -40°C to +125°C, TO-92 (TO-226) 5.33mm Body Height, 2000-REEL, Automotive Qualified | MC78L05ABPG vs NCV78L05ABPREG |
| MC78L05ABPRM | onsemi | Check for Price | 5V FIXED POSITIVE REGULATOR, PBCY3, TO-92, 3 PIN | MC78L05ABPG vs MC78L05ABPRM |
| LM78L05ACZXA | onsemi | Check for Price | 3-Terminal 0.1A Positive Voltage Regulator, TO-92-3 LF, 2000-FNFLD | MC78L05ABPG vs LM78L05ACZXA |
| LM78L05ACZ | Texas Instruments | Check for Price | 5V FIXED POSITIVE REGULATOR, PBCY3, PLASTIC, TO-92, 3 PIN | MC78L05ABPG vs LM78L05ACZ |
| MC78L05CPRM | Motorola Semiconductor Products | Check for Price | Fixed Positive Standard Regulator, 5VBIPolar, PBCY3, PLASTIC, TO-92, 3 PIN | MC78L05ABPG vs MC78L05CPRM |
| ML78L05A | Micro Electronics Ltd | Check for Price | Fixed Positive Standard Regulator, 5VBIPolar, MBCY3, TO-92, 3 PIN | MC78L05ABPG vs ML78L05A |
| KA78L05AZBU | onsemi | Check for Price | 3-Terminal 0.1A Positive Voltage Regulator, 10000-BLKBG | MC78L05ABPG vs KA78L05AZBU |
| MC78L05CPRE | Motorola Semiconductor Products | Check for Price | Fixed Positive Standard Regulator, 5VBIPolar, PBCY3, PLASTIC, TO-92, 3 PIN | MC78L05ABPG vs MC78L05CPRE |
| MC78L05BP-AP | Micro Commercial Components | Check for Price | Fixed Positive Standard Regulator, 5VPBCY3, ROHS COMPLIANT, PLASTIC, TO-92, 3 PIN | MC78L05ABPG vs MC78L05BP-AP |
