MC78L05F-TP Information
MC78L05F-TP by Micro Commercial Components is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MC78L05F-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MC78L05F-TP
|
TME | IC: voltage regulator, linear,fixed, 5V, 0.1A, SOT89, SMD, ±5%, Ch: 1 Min Qty: 1 | 477 |
|
$0.2260 / $0.4950 | Buy Now |
|
DISTI #
MC78L05F-TP
|
IBS Electronics | STANDARD REGULATOR POS 5V 0.1A 4-PIN(3+, TAB) SOT-89 T/R Min Qty: 1000 Package Multiple: 1 | 0 |
|
$0.1960 / $0.2072 | Buy Now |
|
|
Chip Stock | StandardRegulatorPos5V0.1A4-Pin(3+Tab)SOT-89T/R | 953 |
|
RFQ | |
|
|
Vyrian | Regulators | 693 |
|
RFQ | |
|
|
Win Source Electronics | THREE-TERMINAL LOW CURRENT POSITIVE VOLTAGE REGULATOR | 828 |
|
$0.1818 / $0.2727 | Buy Now |
US Tariff Estimator: MC78L05F-TP by Micro Commercial Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MC78L05F-TP
MC78L05F-TP CAD Models
-

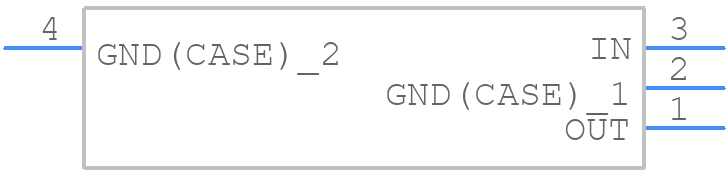

Part Symbol
-

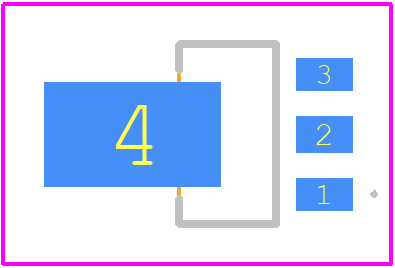

Footprint
-

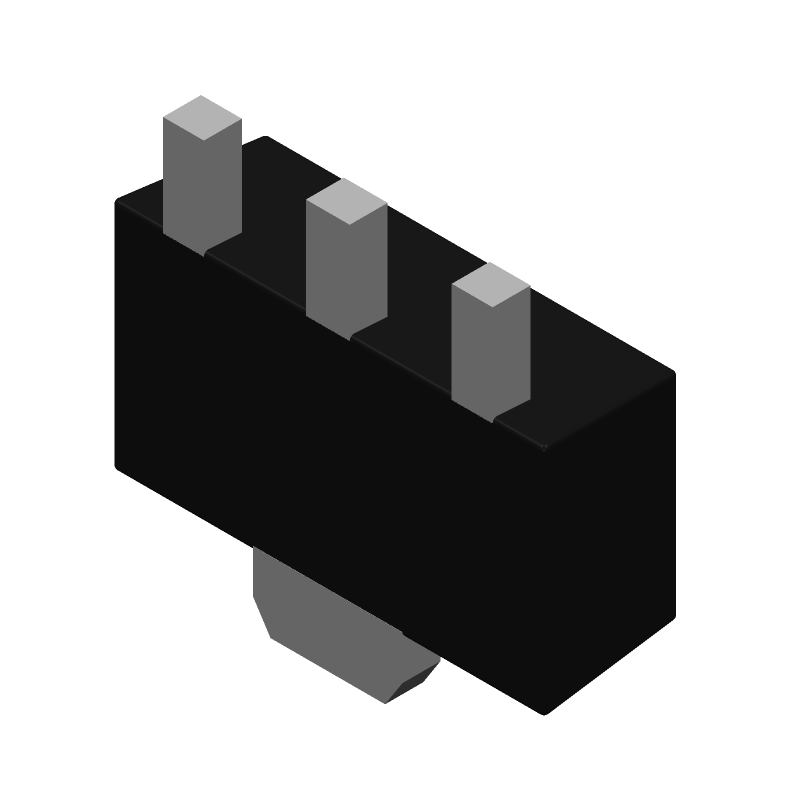

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MC78L05F-TP Part Data Attributes
|
|
MC78L05F-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
MC78L05F-TP
Micro Commercial Components
Fixed Positive Standard Regulator, 5VBIPolar, PSSO3, PLASTIC, SOT-89, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOT-89 | |
| Package Description | Plastic, Sot-89, 3 Pin | |
| Pin Count | 3 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Adjustability | Fixed | |
| Dropout Voltage1-Nom | 1.7 V | |
| Input Voltage Absolute-Max | 30 V | |
| Input Voltage-Max | 20 V | |
| Input Voltage-Min | 7 V | |
| JESD-30 Code | R-PSSO-F3 | |
| JESD-609 Code | e3 | |
| Length | 4.495 Mm | |
| Line Regulation-Max | 0.15% | |
| Load Regulation-Max | 0.06% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Output Current1-Max | 0.1 A | |
| Output Voltage1-Max | 5.25 V | |
| Output Voltage1-Min | 4.7 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOF | |
| Package Equivalence Code | TO-243 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | Fixed Positive Single Output Standard Regulator | |
| Seated Height-Max | 1.6 Mm | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Terminal Finish | Matte Tin | |
| Terminal Form | Flat | |
| Terminal Pitch | 1.5 Mm | |
| Terminal Position | Single | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Voltage Tolerance-Max | 5% | |
| Width | 2.44 Mm |
Alternate Parts for MC78L05F-TP
This table gives cross-reference parts and alternative options found for MC78L05F-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC78L05F-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| KA78L05AMTF | onsemi | $0.1829 | 3-Terminal 0.1A Positive Voltage Regulator, 4000-REEL | MC78L05F-TP vs KA78L05AMTF |
| L78L05ACUTR | STMicroelectronics | $0.1853 | Positive voltage regulators | MC78L05F-TP vs L78L05ACUTR |
| UA78L05ACPKR | Texas Instruments | Check for Price | 5V FIXED POSITIVE REGULATOR, PSSO3, GREEN, PLASTIC, SOT-89, 3 PIN | MC78L05F-TP vs UA78L05ACPKR |
| KA78L05AIMTF | onsemi | Check for Price | 3-Terminal 0.1A 5V Positive Voltage Regulator, SOT-89-3, 4000-REEL | MC78L05F-TP vs KA78L05AIMTF |
| UPC78L05T | NEC Electronics Group | Check for Price | Fixed Positive Standard Regulator, 5VBIPolar, PSSO3, SOT-89, 3 PIN | MC78L05F-TP vs UPC78L05T |
| NJM78L05UA | New Japan Radio Co Ltd | Check for Price | Fixed Positive Standard Regulator, 5VBIPolar, PSSO3, SOT-89, 3 PIN | MC78L05F-TP vs NJM78L05UA |
| NJM78L05UA-(TE2) | New Japan Radio Co Ltd | Check for Price | Fixed Positive Standard Regulator, 5VBIPolar, PSSO3, MINI, PLASTIC, SOT-89, 3 PIN | MC78L05F-TP vs NJM78L05UA-(TE2) |
| L78L05ACU | STMicroelectronics | Check for Price | 5V FIXED POSITIVE REGULATOR, PSSO3, SOT-89, 3 PIN | MC78L05F-TP vs L78L05ACU |
| NJM78L05UA-(TE1) | New Japan Radio Co Ltd | Check for Price | Fixed Positive Standard Regulator, 5VBIPolar, PSSO3, MINI, PLASTIC, SOT-89, 3 PIN | MC78L05F-TP vs NJM78L05UA-(TE1) |
| L78L05ABU | STMicroelectronics | Check for Price | 5V FIXED POSITIVE REGULATOR, PSSO3, SOT-89, 3 PIN | MC78L05F-TP vs L78L05ABU |
MC78L05F-TP Frequently Asked Questions (FAQ)
-
The maximum input voltage for the MC78L05F-TP is 35V, but it's recommended to keep it below 30V for reliable operation.
-
The MC78L05F-TP can supply up to 1A of output current, but it's recommended to keep it below 0.5A for reliable operation.
-
The dropout voltage of the MC78L05F-TP is around 2V, which means the input voltage must be at least 2V higher than the output voltage for proper regulation.
-
Yes, the MC78L05F-TP has built-in short-circuit protection, which limits the output current to prevent damage in case of a short circuit.
-
The operating temperature range of the MC78L05F-TP is -40°C to 125°C, but the device's performance may degrade at extreme temperatures.
