MC78L15ACPG by: onsemi

Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 15.0 V; TJ = 0°C to +125°C, TO-92 (TO-226) 5.33mm Body Height, 2000-BLKBG

Part Details for MC78L15ACPG by onsemi

Results Overview of MC78L15ACPG by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MC78L15ACPG Information

MC78L15ACPG by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for MC78L15ACPG

Part # Distributor Description Stock Price Buy
DISTI # 31K8203
Newark Ldo Voltage Regulator, 15V, 0.1A, To-92-3, Output Type:Fixed, No. Of Outputs:1Outputs, Output Voltage - Nom:15V, Output Voltage Min:-, Output Voltage Max:-, Input Voltage Min:23V, Input Voltage Max:35V, Max Output Current:100Ma Rohs Compliant: Yes |Onsemi MC78L15ACPG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 222
  • 1 $0.3380
  • 10 $0.2470
  • 100 $0.2000
  • 500 $0.1810
  • 1,000 $0.1700
  • 4,000 $0.1680
  • 10,000 $0.1650
$0.1650 / $0.3380 Buy Now
DISTI # 31K8203
Avnet Americas Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 15.0 V, TJ = 0?C to +125?C. ONSSPCLDO, - Bulk (Alt: 31K8203) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 222 Partner Stock
  • 1 $0.3350
  • 10 $0.2440
  • 100 $0.1960
  • 500 $0.1770
  • 1,000 $0.1720
$0.1720 / $0.3350 Buy Now
DISTI # MC78L15ACPG
Avnet Americas Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 15.0 V, TJ = 0?C to +125?C. ONSSPCLDO, - Bulk (Alt: MC78L15ACPG) COO: China RoHS: Compliant Min Qty: 8000 Package Multiple: 2000 Lead time: 13 Weeks, 0 Days Container: Bulk 4000 Factory Stock
  • 8,000 $0.1009
  • 12,000 $0.1004
  • 20,000 $0.0999
  • 40,000 $0.0994
  • 80,000 $0.0989
$0.0989 / $0.1009 Buy Now
Bristol Electronics   43
RFQ
Rochester Electronics Fixed Positive Standard Regulator, 15V, BIPolar, PBCY3 RoHS: Compliant Status: Active Min Qty: 1 53274
  • 100 $0.1381
  • 500 $0.1243
  • 1,000 $0.1146
  • 10,000 $0.1022
  • 100,000 $0.0856
$0.0856 / $0.1381 Buy Now
DISTI # MC78L15ACPG
TME IC: voltage regulator, linear,fixed, 15V, 0.1A, TO92, THT, MC78L00A Min Qty: 1 311
  • 1 $0.2900
  • 5 $0.2340
  • 10 $0.2060
  • 25 $0.1760
  • 100 $0.1500
$0.1500 / $0.2900 Buy Now
Ameya Holding Limited MC78L00A Series 100 mA 15 V Fixed Output LDO Positive Voltage Regulator - TO-92 835
RFQ
DISTI # MC78L15ACPG
Avnet Silica Linear Voltage Regulator 100 mA 5 to 24 V Positive Vout 150 V TJ 0C to 125C ONSSPCLDO (Alt: MC78L15ACPG) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 14 Weeks, 0 Days Silica - 4000
Buy Now
DISTI # MC78L15ACPG
EBV Elektronik Linear Voltage Regulator 100 mA 5 to 24 V Positive Vout 150 V TJ 0C to 125C ONSSPCLDO (Alt: MC78L15ACPG) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 15 Weeks, 0 Days EBV - 0
Buy Now
Greenchips   Date Code: 22+/CN 4000
  • 1 $0.0890
  • 100 $0.0848
  • 1,000 $0.0807
  • 10,000 $0.0729
$0.0729 / $0.0890 Buy Now
LCSC 39dB(120Hz) Positive Fixed 15V TO-92-3 Voltage Regulators - Linear Low Drop Out (LDO) Regulators RoHS 1820
  • 5 $0.2005
  • 50 $0.1592
  • 150 $0.1415
  • 500 $0.1194
  • 2,000 $0.1096
  • 4,000 $0.1036
$0.1036 / $0.2005 Buy Now
New Advantage Corporation TO92-3/C�/100MA, 15V,�5% TOLERANCE, VOLTAGE REGULATOR RoHS: Compliant Min Qty: 1 Package Multiple: 2000 16000
  • 2,000 $0.1418
  • 16,000 $0.1309
$0.1309 / $0.1418 Buy Now

US Tariff Estimator: MC78L15ACPG by onsemi

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

MC78L15ACPG
onsemi
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for MC78L15ACPG

MC78L15ACPG CAD Models

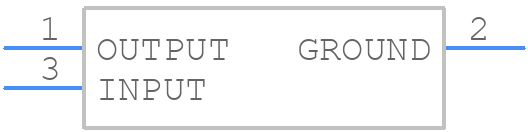

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

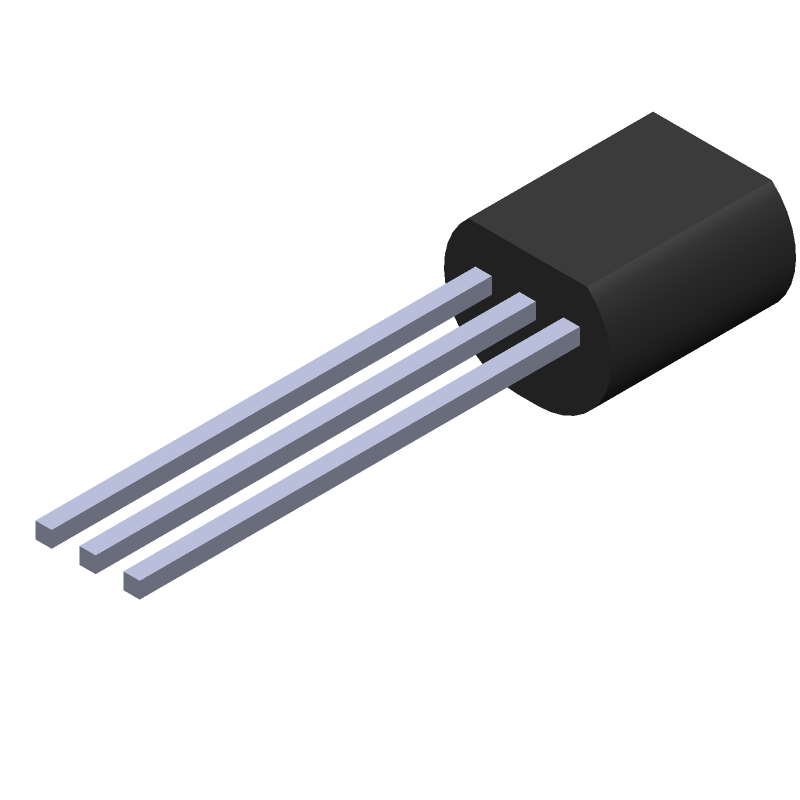

  • 3D Model
