MC78M08BDTRKG by: onsemi

Linear Voltage Regulator, 500 mA, 5 to 24 V, High PSRR, Positive Vout: 8.0 V; TJ = -40° to +125°C, DPAK (SINGLE GAUGE) TO-252, 2500-REEL

Part Details for MC78M08BDTRKG by onsemi

Results Overview of MC78M08BDTRKG by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

MC78M08BDTRKG Information

MC78M08BDTRKG by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for MC78M08BDTRKG

Part # Distributor Description Stock Price Buy
DISTI # 26AM3883
Newark Ana 500Ma 8V Vreg Rohs Compliant: Yes |Onsemi MC78M08BDTRKG RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel 25000
  • 1 $0.2520
  • 3,000 $0.2460
  • 6,000 $0.2270
  • 12,000 $0.2120
  • 18,000 $0.1980
  • 30,000 $0.1890
$0.1890 / $0.2520 Buy Now
DISTI # 42Y0672
Newark Linear Volt Reg, 0.5A, 8V, To-252-3, Fixed Output Voltage Nom.:8V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Input Voltage Min:-, Input Voltage Max:35V, Product Range:7808 Voltage Regulators, Output Rohs Compliant: Yes |Onsemi MC78M08BDTRKG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 2144
  • 1 $0.4800
  • 10 $0.3370
  • 25 $0.3010
  • 50 $0.2810
  • 100 $0.2610
  • 250 $0.2420
  • 500 $0.2310
  • 1,000 $0.2210
$0.2210 / $0.4800 Buy Now
DISTI # 45J1427
Newark Ic, volt Regulator, fixed,+8V, bipolar, sip,3Pin, plastic Rohs Compliant: Yes |Onsemi MC78M08BDTRKG RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.2520
  • 3,000 $0.2460
  • 6,000 $0.2270
  • 12,000 $0.2120
  • 18,000 $0.1980
  • 30,000 $0.1890
$0.1890 / $0.2520 Buy Now
DISTI # MC78M08BDTRKG
Avnet Americas Linear Voltage Regulator, 500 mA, 5 to 24 V, High PSRR, Positive Vout: 8.0 V, TJ = -40? to +125?C. ONSSPCLDO, - Tape and Reel (Alt: MC78M08BDTRKG) COO: Malaysia RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 8 Weeks, 0 Days Container: Reel 25000
5000 Factory Stock
  • 2,500 $0.0974
$0.0974 Buy Now
DISTI # 70466625
RS MC78M08BDTRKG, SINGLE LINEAR VOLTAGE REGULATOR, 700MA 8 V, +/-2%, 3-PIN DPAK Min Qty: 25 Package Multiple: 1 Container: Bulk 0
  • 25 $0.4530
  • 250 $0.4300
  • 1,250 $0.4070
  • 2,500 $0.3850
$0.3850 / $0.4530 RFQ
DISTI # MC78M08BDTRKG
TME IC: voltage regulator, linear,fixed, 8V, 0.5A, DPAK, SMD, reel,tape Min Qty: 1 0
  • 1 $0.4600
  • 10 $0.3220
  • 25 $0.2880
  • 100 $0.2500
  • 250 $0.2310
  • 500 $0.2210
  • 1,000 $0.2110
  • 2,500 $0.2010
  • 17,500 $0.1860
$0.1860 / $0.4600 RFQ
DISTI # MC78M08BDTRKG
Avnet Silica Linear Voltage Regulator 500 mA 5 to 24 V High PSRR Positive Vout 80 V TJ 40 to 125C ONSSPCLDO (Alt: MC78M08BDTRKG) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
DISTI # MC78M08BDTRKG
EBV Elektronik Linear Voltage Regulator 500 mA 5 to 24 V High PSRR Positive Vout 80 V TJ 40 to 125C ONSSPCLDO (Alt: MC78M08BDTRKG) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days EBV - 5000
Buy Now
Flip Electronics Stock, ship today 5000
RFQ
LCSC 80dB(120Hz) Positive Fixed 8V DPAK Voltage Regulators - Linear Low Drop Out (LDO) Regulators RoHS 5560
  • 5 $0.2297
  • 50 $0.1768
  • 150 $0.1541
  • 500 $0.1258
  • 2,500 $0.1132
  • 5,000 $0.1056
$0.1056 / $0.2297 Buy Now
New Advantage Corporation DPAK 4/A�/500MA, 8V,�4% TOLERANCE, VOLTAGE REGULATOR RoHS: Compliant Min Qty: 1 Package Multiple: 2500 5000
  • 2,500 $0.4800
  • 5,000 $0.4431
$0.4431 / $0.4800 Buy Now

US Tariff Estimator: MC78M08BDTRKG by onsemi

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

MC78M08BDTRKG
onsemi
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for MC78M08BDTRKG

MC78M08BDTRKG CAD Models

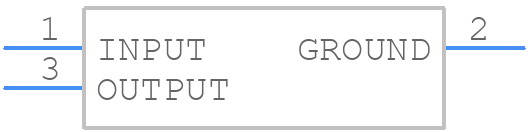

  • Part Symbol

    schematic symbol

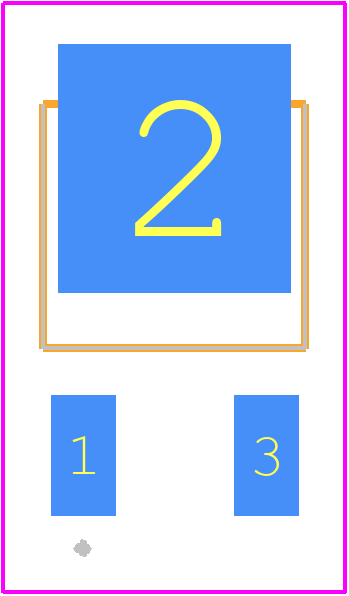

  • Footprint

    pcb footprint

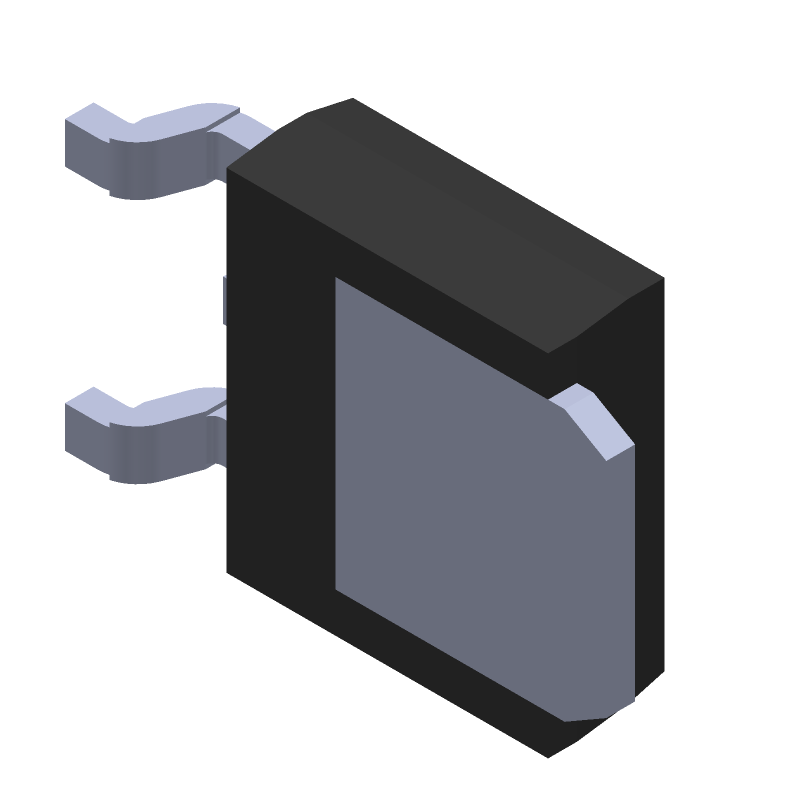

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MC78M08BDTRKG Part Data Attributes

Parametric Data
MC78M08BDTRKG onsemi
Buy Now Datasheet
Compare Parts:
MC78M08BDTRKG onsemi Linear Voltage Regulator, 500 mA, 5 to 24 V, High PSRR, Positive Vout: 8.0 V; TJ = -40° to +125°C, DPAK (SINGLE GAUGE) TO-252, 2500-REEL
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code DPAK (SINGLE GAUGE) TO-252
Package Description Dpak-3
Pin Count 3
Manufacturer Package Code 369C
Reach Compliance Code Not Compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Adjustability Fixed
Dropout Voltage1-Nom 2 V
Input Voltage Absolute-Max 35 V
Input Voltage-Max 25 V
Input Voltage-Min 10.5 V
JESD-30 Code R-PSSO-G2
JESD-609 Code e3
Length 6.54 Mm
Line Regulation-Max 0.05%
Load Regulation-Max 0.16%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 2
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Output Current1-Max 0.5 A
Output Voltage1-Max 8.4 V
Output Voltage1-Min 7.6 V
Output Voltage1-Nom 8 V
Package Body Material Plastic/Epoxy
Package Code TO-252
Package Equivalence Code SMSIP3H,.38,90TB
Package Shape Rectangular
Package Style Small Outline
Packing Method Tr
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type Fixed Positive Single Output Standard Regulator
Seated Height-Max 2.51 Mm
Surface Mount Yes
Technology Bipolar
Terminal Finish Matte Tin (Sn) - Annealed
Terminal Form Gull Wing
Terminal Pitch 2.29 Mm
Terminal Position Single
Time@Peak Reflow Temperature-Max (s) 40
Voltage Tolerance-Max 5%
