MC79L12ACDR2G Information
MC79L12ACDR2G by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MC79L12ACDR2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AC6095
|
Newark | Ldo, Fixed, -12V, 0.1A, Soic-8, Output Type:Fixed, Input Voltage Min:-13.7V, Input Voltage Max:-35V, No. Of Outputs:1Outputs, Output Voltage - Nom:-12V, Output Voltage Min:-, Output Voltage Max:-, Polarity:Negative Output Rohs Compliant: Yes |Onsemi MC79L12ACDR2G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4681 |
|
$0.1500 / $0.2820 | Buy Now |
|
DISTI #
26AM3889
|
Newark | Ana 100Ma 12V Neg Vreg |Onsemi MC79L12ACDR2G RoHS: Not Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0930 / $0.1510 | Buy Now |
|
DISTI #
26K4411
|
Newark | Ic, volt Regulator, fixed,-12V, bipolar, sop,8Pin, plastic |Onsemi MC79L12ACDR2G RoHS: Not Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0930 / $0.1510 | Buy Now |
|
DISTI #
MC79L12ACDR2G
|
Avnet Americas | - Tape and Reel (Alt: MC79L12ACDR2G) COO: China RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.0672 / $0.0726 | Buy Now |
|
DISTI #
70340205
|
RS | MC79L12ACDR2G, SINGLE NEGATIVE VOLTAGE REGULATOR 100MA -12 V, 8-PIN SOIC Min Qty: 20 Package Multiple: 1 Container: Bulk | 0 |
|
$0.2230 / $0.2620 | RFQ |
|
|
Bristol Electronics | 5179 |
|
RFQ | ||
|
|
Bristol Electronics | 2455 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 9 | 10 |
|
$0.5625 | Buy Now |
|
DISTI #
MC79L12ACDR2G
|
TME | IC: voltage regulator, linear,fixed, -12V, 0.1A, SO8, SMD, MC79L00A Min Qty: 1 | 2406 |
|
$0.1120 / $0.2400 | Buy Now |
|
|
ComSIT USA | 100 MILLI AMP NEGATIVE VOLTAGE REGULATOR Fixed Negative Standard Regulator, 12V, BIPolar, PDSO8 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ |
US Tariff Estimator: MC79L12ACDR2G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MC79L12ACDR2G
MC79L12ACDR2G CAD Models
-

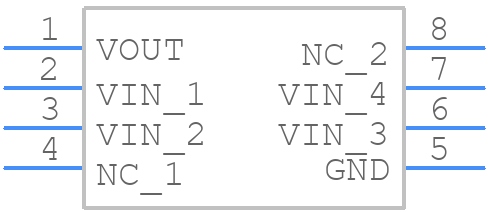

Part Symbol
-
