MCP1703T-3302E/CB Information
MCP1703T-3302E/CB by Microchip Technology Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MCP1703T-3302E/CB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
40M0637
|
Newark | Ldo Voltage Regulator, 3.3V, 250Ma, 3-Sot-23A, Output Type:Fixed, Input Voltage Min:2.7V, Input Voltage Max:16V, No. Of Outputs:1Outputs, Output Voltage - Nom:3.3V, Output Voltage Min:-, Output Voltage Max:-, Polarity:Positive Outputrohs Compliant: Yes |Microchip MCP1703T-3302E/CB RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1700 |
|
$0.6840 | Buy Now |
|
DISTI #
28X3677
|
Newark | Ldo Voltage Regulator, 3.3V, 250Ma, 3-Sot-23A, Output Type:Fixed, Input Voltage Min:2.7V, Input Voltage Max:16V, No. Of Outputs:1Outputs, Output Voltage Min:-, Output Voltage Max:-, Polarity:Positive Output, Ic Mounting:Surface Mountrohs Compliant: Yes |Microchip MCP1703T-3302E/CB RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$0.7900 | Buy Now |
|
DISTI #
MCP1703T-3302E/CB
|
Avnet Americas | LDO Regulator Pos 3.3V 0.25A 3-Pin SOT-23A T/R - Tape and Reel (Alt: MCP1703T-3302E/CB) COO: Thailand RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Tape & Reel | 3000 |
|
$0.6000 / $0.6400 | Buy Now |
|
DISTI #
40M0637
|
Avnet Americas | LDO Regulator Pos 3.3V 0.25A 3-Pin SOT-23A T/R - Product that comes on tape, but is not reeled (Alt: 40M0637) COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 1700 Partner Stock |
|
$0.8420 / $0.9920 | Buy Now |
|
DISTI #
MCP1703T-3302E/CB
|
Microchip Technology Inc | LOW LQ 250MA LDO, VIN 16V MAX, VOUT=3.3V, SOT-23A, Projected EOL: 2034-06-26 COO: China, Taiwan, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tape & Reel | In Stock: 6000 and Alternates Available |
|
$0.4900 / $0.7500 | Buy Now |
|
DISTI #
70046550
|
RS | PWR SPLY FUNC, VOLTAGE REGULATOR, LDO, SOT-23A, IS 2UA, PD 253MW, VO 3.3V, REGLOAD+/-1% Min Qty: 3000 Package Multiple: 1 Lead time: 36 Weeks, 0 Days Container: Bulk | 0 |
|
$0.7700 | RFQ |
|
|
Bristol Electronics | 1238 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 4 | 16 |
|
$0.9750 / $1.5000 | Buy Now |
|
DISTI #
MCP1703T3302ECB
|
TME | IC: voltage regulator, LDO,linear,fixed, 3.3V, 0.25A, SOT23A, SMD Min Qty: 1 | 1841 |
|
$0.5600 / $1.0300 | Buy Now |
|
|
NAC | LOW Iq, High Vin LDO. - POWER ANALOG Product Line RoHS: Compliant Package Multiple: 1 | 0 |
|
$0.6000 / $0.7400 | Buy Now |
US Tariff Estimator: MCP1703T-3302E/CB by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MCP1703T-3302E/CB
MCP1703T-3302E/CB CAD Models
-

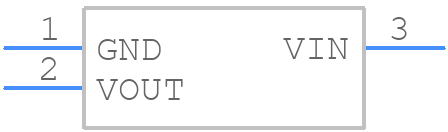

Part Symbol
-
