MCP1725-3302E/MC Information
MCP1725-3302E/MC by Microchip Technology Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MCP1725-3302E/MC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
20T5956
|
Newark | Fixed Ldo Voltage Regulator, 2.3V To 6V, 210Mv Dropout, 3.3Vout, 500Maout, Dfn-8 Rohs Compliant: Yes |Microchip MCP1725-3302E/MC RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 1144 |
|
$0.5250 / $0.5650 | Buy Now |
|
DISTI #
MCP1725-3302E/MC
|
Avnet Americas | LDO Voltage Regulator, Fixed, 2.3 V to 6 V, 1 Output, 210mV @ 500mA, 3.3 V, 500 mA, 8 Pins, DFN-EP - Rail/Tube (Alt: MCP1725-3302E/MC) COO: Thailand RoHS: Compliant Min Qty: 600 Package Multiple: 150 Lead time: 6 Weeks, 0 Days Container: Tube | 0 |
|
$0.5625 / $0.6429 | Buy Now |
|
DISTI #
20T5956
|
Avnet Americas | LDO Voltage Regulator, Fixed, 2.3 V to 6 V, 1 Output, 210mV @ 500mA, 3.3 V, 500 mA, 8 Pins, DFN-EP (Alt: 20T5956) RoHS: Compliant Min Qty: 1 Package Multiple: 1 | 0 |
|
$0.5400 / $0.7100 | Buy Now |
|
DISTI #
MCP1725-3302E/MC
|
Microchip Technology Inc | 500MA, LOW VOLTAGE LDO, DFN, Projected EOL: 2034-12-22 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube | In Stock: 791 and Alternates Available |
|
$0.5200 / $0.7100 | Buy Now |
|
DISTI #
70389046
|
RS | LDO REGULATOR 500MA 3.3V SHUTDOWN DFN8EP Min Qty: 750 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Bulk | 0 |
|
$0.9500 | RFQ |
|
|
Bristol Electronics | 200 |
|
RFQ | ||
|
DISTI #
MCP1725-3302E/MC
|
TME | IC: voltage regulator, LDO,linear,fixed, 3.3V, 0.5A, DFN8, SMD Min Qty: 1 | 0 |
|
$0.6800 / $1.0100 | RFQ |
|
DISTI #
MCP1725-3302E/MC
|
IBS Electronics | LDO REGULATOR 500MA 3.3V SHUTDOWN DFN8EP | MICROCHIP TECHNOLOGY INC. MCP1725-3302E/MC Min Qty: 15 Package Multiple: 1 | 3599 |
|
$0.6299 / $0.8470 | Buy Now |
|
|
NAC | 500mA CMOS LDO, Vout=3.3V, Extended Temp Range. Package: 8 DFN 2x3x0.9mm TUBE - POWER ANALOG Product Line RoHS: Compliant Min Qty: 600 Package Multiple: 150 Container: Tube | 0 |
|
$0.5600 / $0.6900 | Buy Now |
|
DISTI #
MCP1725-3302E/MC
|
Avnet Silica | LDO Voltage Regulator Fixed 23 V to 6 V 1 Output 210mV 500mA 33 V 500 mA 8 Pins DFNEP (Alt: MCP1725-3302E/MC) RoHS: Compliant Min Qty: 600 Package Multiple: 150 Lead time: 8 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
US Tariff Estimator: MCP1725-3302E/MC by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MCP1725-3302E/MC
MCP1725-3302E/MC CAD Models
-

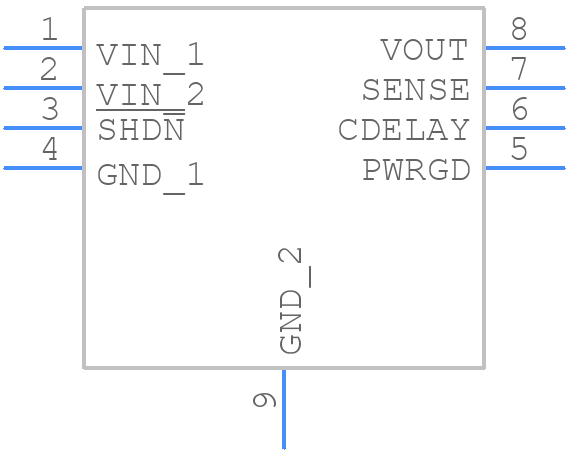

Part Symbol
-
Footprint
-

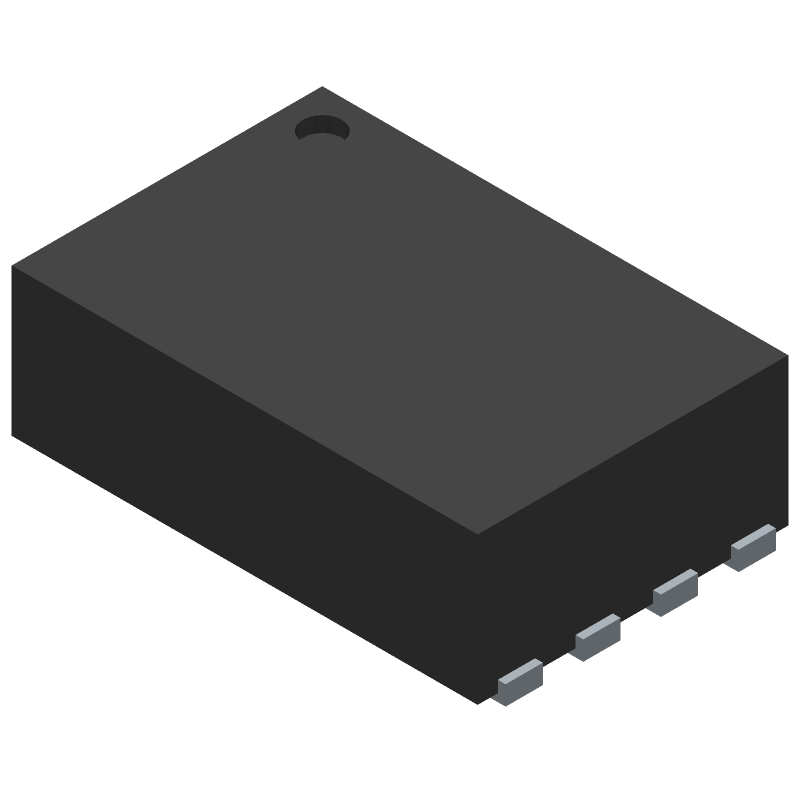

3D Model
