MCP4661-103E/ST by Microchip Technology Inc is a Digital Potentiometer.
Digital Potentiometers are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| GSB1212103EU | Amphenol Communications Solutions | USB 2.0, Type A, Receptacle, Right Angle, 4 Pins, Shell with Nickel Plating, 30u\\ Gold, Dip 3.3mm, Black Housing, Tray Packaging | |
| 10061913-103ELF | Amphenol Communications Solutions | PCI Express® GEN 3 Card Edge, Storage and Server Connector, Vertical, Surface Mount, 1.00mm (0.039in) Pitch, 164 (x16) Position |
Price & Stock for MCP4661-103E/ST
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49P5397
|
Newark | Non Volatile Potentiometer, 10Kohm, End To End Resistance:10Kohm, No. Of Pots:Dual, Control Interface:I2C, Serial, Track Taper:Linear, Resistance Tolerance:± 20%, Supply Voltage Min:2.7V, Supply Voltage Max:5.5V, No. Of Pins:14Pins Rohs Compliant: Yes |Microchip MCP4661-103E/ST RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1598 |
|
$1.2600 / $1.6600 | Buy Now |
|
DISTI #
27AC8436
|
Newark | Tssop Dual, 8Bit, Nv, I2C, Pot Rohs Compliant: Yes |Microchip MCP4661-103E/ST RoHS: Compliant Min Qty: 96 Package Multiple: 1 Date Code: 0 Container: Bulk | 92 |
|
$1.3800 / $1.4300 | Buy Now |
|
DISTI #
MCP4661-103E/ST
|
Avnet Americas | Digital Potentiometer, Non-Volatile, 10 kOhm, Dual, 257 Steps, ? 150 ppm/?C, 2.7 V to 5.5 V, 14 Pins, PTSSOP - Rail/Tube (Alt: MCP4661-103E/ST) COO: Thailand RoHS: Compliant Min Qty: 96 Package Multiple: 1 Lead time: 7 Weeks, 0 Days Container: Tube | 92 |
|
$1.3375 / $1.4267 | Buy Now |
|
DISTI #
MCP4661-103E/ST
|
Microchip Technology Inc | Dual 8-bit, Non-Volatile linear pot w/I2C, TSSOP, Projected EOL: 2034-06-30 COO: Philippines, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tube |
In Stock: 0 and Alternates Available Incoming: 24 expected 12/19/2025 |
|
$1.2200 / $1.6600 | Buy Now |
|
DISTI #
70047028
|
RS | DIGITAL POTENTIOMETER, ICS SNGL 8B NV I2C POT Min Qty: 288 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$1.4900 / $1.6600 | RFQ |
|
DISTI #
MCP4661-103EST
|
TME | IC: digital potentiometer, 10kΩ, I2C, 8bit, TSSOP14, SMD, Ch: 2, tube Min Qty: 1 | 542 |
|
$1.3500 / $1.6300 | Buy Now |
|
DISTI #
MCP4661-103E/ST
|
IBS Electronics | DIGITAL POTENTIOMETER ICS SNGL 8B NV I2C POT | MICROCHIP TECHNOLOGY INC. MCP4661-103E/ST Min Qty: 96 Package Multiple: 1 | 8447 |
|
$0.7600 / $1.0400 | Buy Now |
|
|
NAC | Dual, 8bit, NV, I2C, POT. Package: 14 TSSOP 4.4mm TUBE - MIXED SIGNAL PRODUCTS Product Line RoHS: Compliant Min Qty: 288 Package Multiple: 96 Container: Tube | 0 |
|
$1.3400 / $1.6500 | Buy Now |
|
DISTI #
MCP4661-103E/ST
|
Avnet Silica | Digital Potentiometer NonVolatile 10 kOhm Dual 257 Steps 150 ppmC 27 V to 55 V 14 Pins PTSSOP (Alt: MCP4661-103E/ST) RoHS: Compliant Min Qty: 288 Package Multiple: 96 Lead time: 9 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MCP4661-103E/ST
|
EBV Elektronik | Digital Potentiometer NonVolatile 10 kOhm Dual 257 Steps 150 ppmC 27 V to 55 V 14 Pins PTSSOP (Alt: MCP4661-103E/ST) RoHS: Compliant Min Qty: 288 Package Multiple: 96 Lead time: 8 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: MCP4661-103E/ST by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MCP4661-103E/ST
MCP4661-103E/ST CAD Models
-

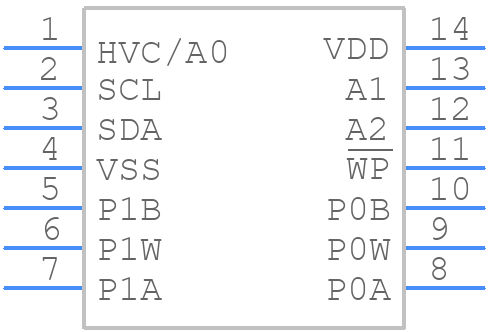

Part Symbol
-
